14+ G35-900 In Stock

Garrett G35-900 Turbochargers

PT Turbo lists 12 complete turbochargers and 2 CHRA cartridges for the Garrett G35-900, with complete turbos from $2,861 to $3,212. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.

Categories and filters
Shop by
Turbo modelVehicle make
Turbochargers
OEM Replacement Turbos4,806Garrett Performance Turbos803Remanufactured Turbos480Vehicle Specific Kits207PT Turbo Brand30
Turbocharger Parts
CHRA1,606Installation Kits641Actuators & Wastegates418SuperCore / Partial Turbo163Compressor Housings42Gaskets8Rebuild Kits6
Popular makes
FordDodge / RamChevroletGMCFreightlinerKenworthVolvoMackInternationalCaterpillarJohn DeereAll makes
Availability
Order online nowIn stock at the last daily checkOn our shelfShips the same day before 2 PM Pacific
Showing 14 of 14 products
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880700-5003S
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880700-5003S
$2,861.91
In Stock

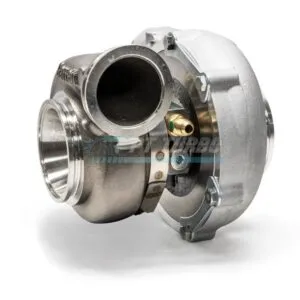

Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S
$2,861.91
In Stock
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880700-5001S
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880700-5001S
$2,861.91
In Stock
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S
$2,861.91
In Stock
Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5001S
Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5001S
$3,211.47
In Stock
Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880701-5002S
Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880701-5002S
$3,211.47
In Stock

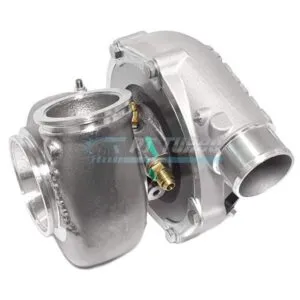

Turbocharger, Garrett G35-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880701-5003S
Turbocharger, Garrett G35-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880701-5003S
$3,211.47
In Stock
Turbocharger, Garrett G35-900, REVERSE ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880701-5004S
Turbocharger, Garrett G35-900, REVERSE ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880701-5004S
$3,211.47
In Stock
Garrett G-Series G35 CHRA G35-900-FR (Standard Rotation), P/N: 879673-5001S
Garrett G-Series G35 CHRA G35-900-FR (Standard Rotation), P/N: 879673-5001S
$2,083.71
In Stock
Garrett G-Series G35 CHRA G35-900-RR (Reverse Rotation), P/N: 879674-5001S
Garrett G-Series G35 CHRA G35-900-RR (Reverse Rotation), P/N: 879674-5001S
$2,180.49
In Stock
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
$3,080.83
In Stock
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
$3,080.83
In Stock
Turbo, Garrett G35-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5002S
Turbo, Garrett G35-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5002S
$3,114.50
In Stock
Turbo, Garrett G35-900, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5003S
Turbo, Garrett G35-900, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5003S
$3,114.50
In Stock

What the Garrett G35-900 is

The G35-900 is a Garrett G-Series mid-frame turbo rated at 550 to 900 horsepower, with a 62 / 76 mm, 65 trim compressor wheel in a 0.72 A/R housing, a larger 68 / 62 mm, 84 trim Mar-M turbine wheel than the G30-900, and a maximum speed of 145,000 rpm. Garrett’s page gives the engine size as 2.0 to 5.5 liters in its specification and 2.0 to 3.5 liters in its title. Garrett sells supercores (880695-5001S standard, 880696-5001S reverse) and complete standard-rotation turbos with an internally wastegated V-band housing (880707-5002S, 0.83 A/R; 880707-5003S, 1.01 A/R); its newer G-Series II turbo in this size is the G35-990.

This page lists Garrett’s G35-900 turbos in standard and reverse rotation with V-band housings from 0.61 to 1.21 A/R, the internally wastegated versions, versions with a T3 open-inlet housing, and the CHRAs. Garrett’s own guidance on turbine housings: a smaller A/R gives quicker boost response and more turbine power at low engine speed; a larger A/R lets the wheel flow more, with lower back pressure and more power at high engine speed.

Sources: Garrett G35-900 catalog page · Garrett: G-Series II · Garrett: Turbine Housings 101

About the Garrett G35-900

In the catalog
12 complete turbochargers and 2 CHRA cartridges
Complete turbo price
$2,861 to $3,212
Shop by category
G Series·G35 - Garrett G Series·Garrett Performance Turbos·CHRA
Rather rebuild yours?Turbo Rebuild Service Looking for another turbo?Browse all turbo models

G35-900 specifications

Wheel sizes are inducer / exducer, taken from the specification published for each part number. The turbine housing sizes are the ones on the listings above; the same turbo is sold with several.

ModelCompressor wheelTurbine wheelCompressor housingTurbine housing A/RListingsFrom
G35-90062 / 76 mm, 65 trim68 / 62 mm, 84 trim0.72 A/R0.61, 0.83, 1.01, 1.2114$2,862

On G Series turbos the number after the dash is Garrett's horsepower rating: a G30-660 is rated for up to 660 hp.
