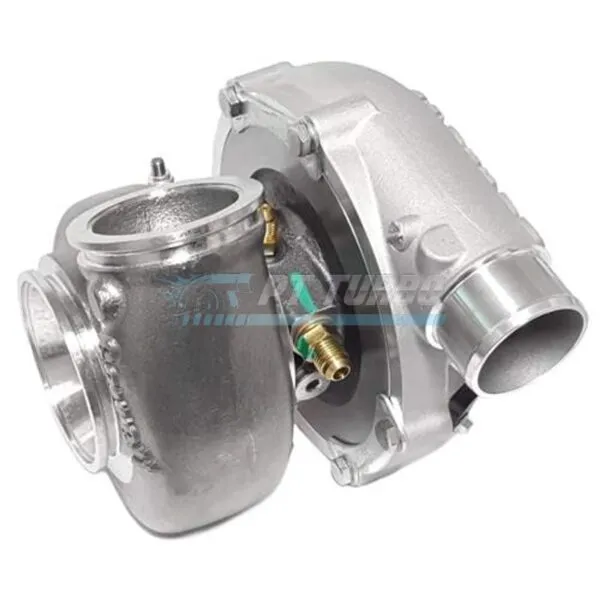

The Garrett G35-900 reverse rotation turbocharger is engineered for serious builders who need precise exhaust routing flexibility without sacrificing the flow characteristics that define the G Series lineup. Its reverse rotation configuration makes it the ideal choice for platforms where housing orientation and packaging constraints demand a mirrored compressor and turbine layout. This is a turbo built for enthusiasts who require both high-flow capability and installation versatility in a single, purpose-built assembly.
Specifications
- Compressor Wheel Inducer: 62mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Compressor Housing Inlet: 4 Inch
- Compressor Housing Outlet: 2 Inch
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R: 0.83 O/V
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Rotation: Reverse Rotation
- Garrett P/N: 880701-5002S
Performance & Application
The G35-900 reverse rotation turbo is designed around a V-Band inlet and outlet configuration for streamlined, leak-resistant plumbing on both the compressor and turbine sides. Its 0.83 A/R O/V turbine housing works alongside a 0.72 A/R compressor housing to deliver the responsive, high-flow characteristics that the G Series platform is known for. This configuration is well suited to builders who need a compact, efficient turbo solution with reversed housing orientation for custom or space-constrained turbo system layouts.
What’s Included
- Oil Feed (1mm) Restrictor Fitting to -4AN
- Two Coolant Fittings to -6AN
- Turbine Housing Inlet & Outlet V-Band Clamps
Frequently Asked Questions
- What is the A/R ratio on this G35-900 turbo?
- The compressor housing A/R is 0.72, and the turbine housing A/R is 0.83 O/V.
- Is this turbo reverse rotation?
- Yes, this Garrett G35-900 is a reverse rotation turbo assembly.
- What size are the compressor housing inlet and outlet?
- The compressor housing features a 4 inch inlet and a 2 inch outlet.
- What connections does the turbine housing use?
- The turbine housing has a 3 inch O.D. V-Band inlet and a 3.55 inch O.D. V-Band outlet.
For builders who demand precise wheel geometry, V-Band convenience, and reverse rotation flexibility in one package, the Garrett G35-900 P/N 880701-5002S delivers the engineering pedigree the G Series is built on.
