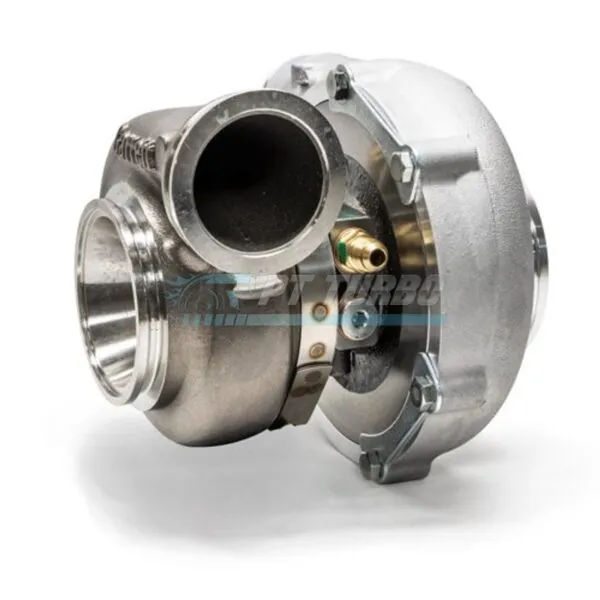

The Garrett G35-900 standard rotation turbocharger is engineered for builders who demand precise, repeatable performance from a ball bearing turbo capable of serious power. With its V-Band inlet and outlet configuration, this unit is built for enthusiasts running high-output builds who need a direct bolt-on solution without sacrificing top-end capability. It’s the turbo of choice for those who want Garrett’s proven G Series engineering behind their next build.
Specifications
- Compressor Wheel Inducer: 62mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R (O/V): 1.01
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Rotation: Standard Rotation
- Bearing Type: Ball Bearing
- HP Capacity: Up to 900 HP
- Garrett P/N: 880700-5003S
Performance & Application
The G35-900 is built for high-horsepower applications where consistent boost delivery and durability under sustained load are non-negotiable. Its V-Band in/out design streamlines installation and supports high-flow exhaust housing configurations for builds pushing toward the upper end of its power capacity. The ball bearing center cartridge design delivers sharper response and reduced spool lag compared to traditional journal bearing units, making it well suited for enthusiasts building serious street and competition applications. This turbo is engineered for those who need a turbocharger that can reliably support up to 900 HP without compromise.
What’s Included
- Oil Feed (1mm) Restrictor Fitting to -4AN
- Two Coolant Fittings to -6AN
- Turbine Housing Inlet & Outlet V-Band Clamps
Frequently Asked Questions
- What HP can the Garrett G35-900 support?
- The Garrett G35-900 delivers up to 900 HP.
- Is the G35-900 a ball bearing or journal bearing turbo?
- The G35-900 uses ball bearings.
- What turbine housing inlet and outlet configuration does the G35-900 use?
- The G35-900 features a 3 Inch O.D. V-Band turbine housing inlet and a 3.55 inch O.D. V-Band turbine housing outlet.
- What is the compressor housing A/R ratio on the G35-900?
- The compressor housing A/R ratio is 0.72.
For builders targeting up to 900 HP with the reliability of Garrett ball bearing engineering and the convenience of V-Band in/out plumbing, the G35-900 (P/N 880700-5003S) delivers a proven, direct bolt-on solution.
