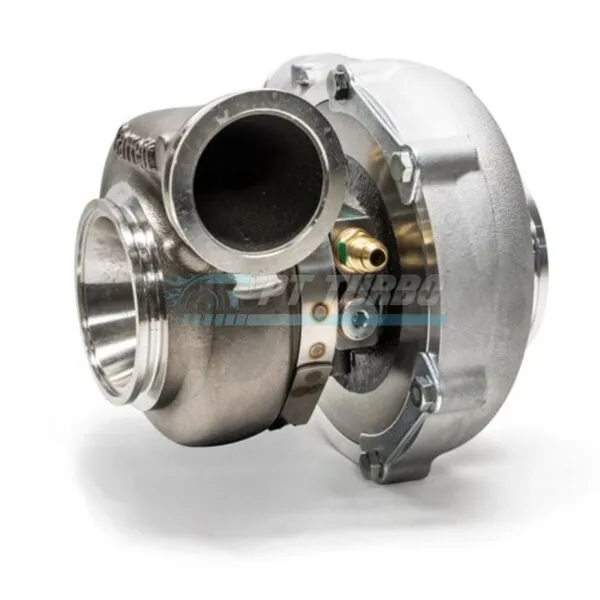

Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S

Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S

$2,861.91

Garrett G35-900 (P/N 880700-5004S): 900 HP capability with 62/76mm compressor wheel, 68/62mm turbine, 0.72 compressor A/R, and 1.21 O/V turbine A/R. Standard rotation, V-band in/out configuration with ball bearing construction and complete oil/coolant line kit included.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 1.21 O/V
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Rotation: Standard
  • Bearing Type: Ball Bearing
  • HP Capacity: 900 HP
  • Garrett P/N: 880700-5004S
Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5004S”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G35-900

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
