Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT

Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3″ VB OUT

$3,080.83

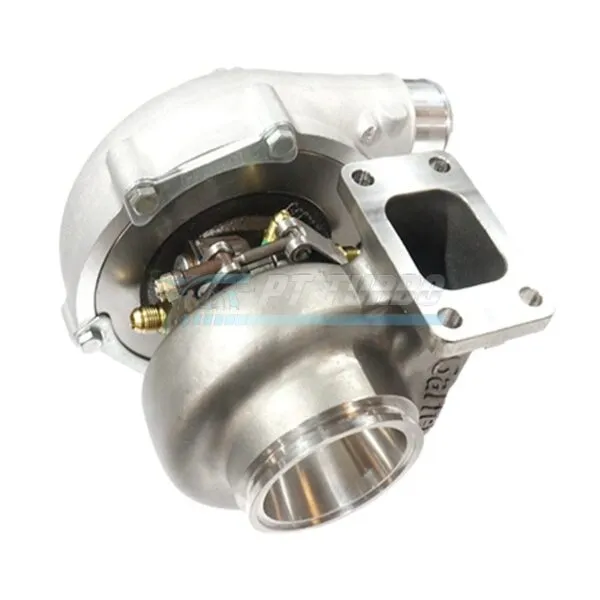

Garrett G35-900 with 62/76mm compressor wheel (65 trim), 68/62mm turbine wheel (84 trim), 0.72 A/R compressor and 1.01 A/R undivided T3 turbine housing. Standard rotation with 4″ inlet, 3″ V-Band outlet, and integrated oil/coolant fittings for universal mounting.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4″
  • Compressor Housing Outlet: 2″
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
Weight 20 lbs
