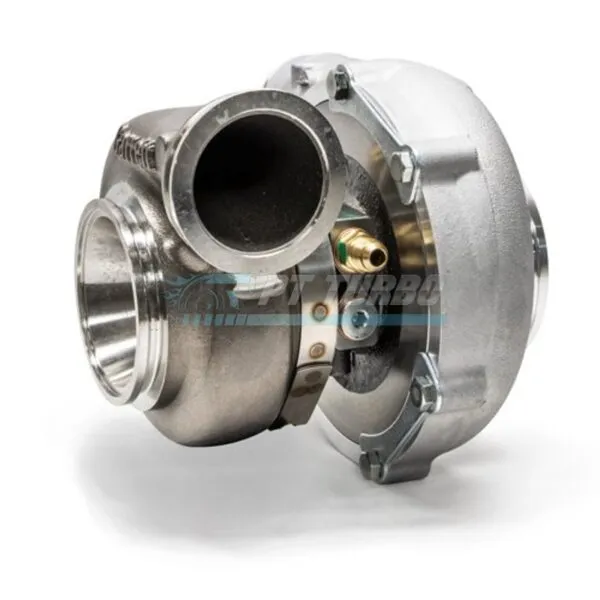

The Garrett G35-900 standard rotation turbocharger is engineered for serious enthusiasts building high-response, mid-range-focused boost systems that demand precision engineering and repeatable performance. With its V-Band in/out configuration, this turbo is built for builders who want a bolt-in-ready, race-proven platform rather than a compromise unit. It’s the choice for those who need aggressive spool characteristics without sacrificing top-end capability.
Specifications
- Compressor Wheel Inducer: 62mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R: 0.83 A/R O/V
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Bearing System: Ball Bearing
- Rotation: Standard Rotation
- Garrett P/N: 880700-5002S
Performance & Application
The G35-900’s compressor and turbine wheel combination is tuned to deliver aggressive mid-range boost, making it well suited to builds where strong response through the meat of the powerband is the priority. Standard rotation and V-Band in/out plumbing simplify integration into performance exhaust and intake routing. Ball bearing support underpins the turbo’s quick-spooling behavior, giving builders a platform that reacts fast without giving up high-RPM performance. This unit is built for enthusiasts running serious power levels who need a turbocharger that responds as hard as it pulls.
What’s Included
- Oil Feed (1mm) Restrictor Fitting to -4AN
- Two Coolant Fittings to -6AN
- Turbine Housing Inlet & Outlet V-Band Clamps
Frequently Asked Questions
- Is the Garrett G35-900 a ball bearing turbocharger?
- Yes, the G35-900 uses ball bearing support for quick spool response.
- What is the A/R ratio of the G35-900?
- The compressor housing A/R is 0.72, and the turbocharger is designated with a 0.83 A/R O/V turbine housing configuration.
- What type of inlet and outlet does the G35-900 turbine housing use?
- The turbine housing features a 3 inch O.D. V-Band inlet and a 3.55 inch O.D. V-Band outlet.
- What fittings come with the Garrett G35-900?
- It includes an Oil Feed (1mm) Restrictor Fitting to -4AN, two Coolant Fittings to -6AN, and Turbine Housing Inlet & Outlet V-Band Clamps.
