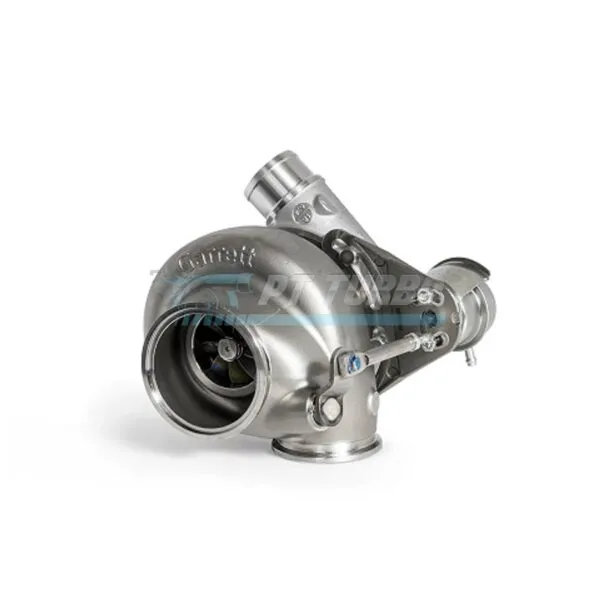

The Garrett G35-900 standard rotation turbo represents a serious step up for enthusiasts building high-horsepower platforms who demand a compact, efficient package without sacrificing top-end capability. Featuring an internally wastegated turbine housing with V-band connections on both the inlet and outlet, this turbo is engineered for builders who want a clean, bolt-on solution for aggressive performance applications. It’s the right choice for anyone moving beyond stock-frame turbos into Garrett’s proven G Series lineup.
Specifications
- Compressor Wheel Inducer: 62mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Compressor Housing Inlet: 4 Inch
- Compressor Housing Outlet: 2 Inch
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R: 0.83
- Turbine Housing Configuration: Internally Wastegated
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 Inch O.D. V-Band
- Rotation: Standard Rotation
- Garrett P/N: 880707-5002S
Performance & Application
The G35-900’s compressor and turbine wheel geometry, paired with its internally wastegated 0.83 A/R turbine housing, positions this turbo for builders seeking strong response paired with sustained high-end airflow. The V-band inlet and outlet configuration on the turbine housing simplifies installation into modern high-performance exhaust manifolds and downpipes. Standard rotation makes this unit a straightforward fit for a wide range of turbo system layouts. This is a turbo built for enthusiasts pushing serious power who need a turbine housing solution that eliminates external wastegate plumbing complexity.
What’s Included
- Oil Feed (1mm) Restrictor Fitting to -4AN
- Two Coolant Fittings to -6AN
- Turbine Housing Inlet & Outlet V-Band Clamps
Frequently Asked Questions
- What is the turbine housing A/R ratio on the G35-900?
- The turbine housing features a 0.83 A/R ratio and is internally wastegated.
- What is the compressor housing A/R ratio?
- The compressor housing A/R ratio is 0.72.
- What size are the compressor and turbine wheels?
- The compressor wheel features a 62mm inducer and 76mm exducer with a 65 trim. The turbine wheel features a 68mm inducer and 62mm exducer with an 84 trim.
- What connections does the turbine housing use?
- The turbine housing uses a 3 inch O.D. V
