17+ G30-900 In Stock

Garrett G30-900 Turbochargers

PT Turbo lists 15 complete turbochargers and 2 CHRA cartridges for the Garrett G30-900, with complete turbos from $2,622 to $2,922. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.

Categories and filters
Shop by
Turbo modelVehicle make
Turbochargers
OEM Replacement Turbos4,806Garrett Performance Turbos803Remanufactured Turbos480Vehicle Specific Kits207PT Turbo Brand30
Turbocharger Parts
CHRA1,606Installation Kits641Actuators & Wastegates418SuperCore / Partial Turbo163Compressor Housings42Gaskets8Rebuild Kits6
Popular makes
FordDodge / RamChevroletGMCFreightlinerKenworthVolvoMackInternationalCaterpillarJohn DeereAll makes
Availability
Order online nowIn stock at the last daily checkOn our shelfShips the same day before 2 PM Pacific
Showing 17 of 17 products
Garrett G-Series G30 CHRA G30-900-FR (Standard Rotation), P/N: 879671-5003S
Garrett G-Series G30 CHRA G30-900-FR (Standard Rotation), P/N: 879671-5003S
$1,751.26
In Stock

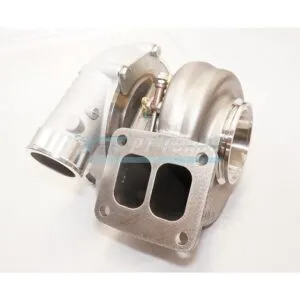

Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.06 A/R DIVIDED T4 INLET W/ 3" VB OUT
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.06 A/R DIVIDED T4 INLET W/ 3" VB OUT
$2,702.91
In Stock
Turbo, Garrett G30-900, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5009S
Turbo, Garrett G30-900, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5009S
$2,921.70
In Stock

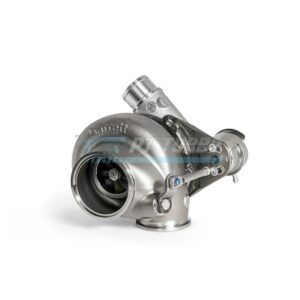

Turbo, Garrett G30-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5008S
Turbo, Garrett G30-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5008S
$2,921.70
In Stock
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
$2,702.91
In Stock
Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
$2,702.91
In Stock

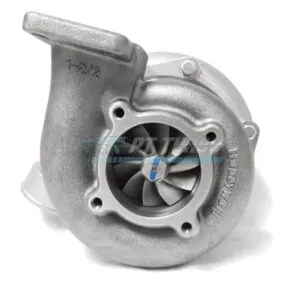

Turbocharger, Garrett G30-900 Standard Rotation, 0.82 A/R, T3 Undivided (open), T31 (Narrow) 4 bolt
Turbocharger, Garrett G30-900 Standard Rotation, 0.82 A/R, T3 Undivided (open), T31 (Narrow) 4 bolt
$2,702.91
In Stock

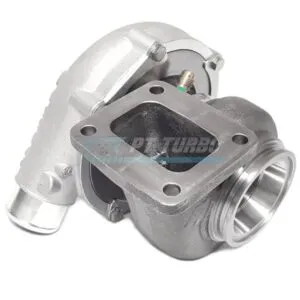

Turbocharger, Garrett G30-900 Standard Rotation, 0.82 A/R, T4 Undivided (open), V-band Exit
Turbocharger, Garrett G30-900 Standard Rotation, 0.82 A/R, T4 Undivided (open), V-band Exit
$2,702.91
In Stock
Garrett G-Series G30 CHRA G30-900-RR (Reverse Rotation), P/N: 879672-5003S
Garrett G-Series G30 CHRA G30-900-RR (Reverse Rotation), P/N: 879672-5003S
$1,834.60
In Stock
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S
$2,702.91
In Stock
Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880698-5016S
Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880698-5016S
$2,622.95
In Stock
Turbocharger, Garrett G30-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880698-5013S
Turbocharger, Garrett G30-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880698-5013S
$2,622.95
In Stock
Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S
Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880697-5015S
$2,702.91
In Stock
Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S
Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S
$2,622.95
In Stock
Turbocharger, Garrett G30-900, REVERSE ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880698-5014S
Turbocharger, Garrett G30-900, REVERSE ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880698-5014S
$2,622.95
In Stock
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880697-5018S
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880697-5018S
$2,702.91
In Stock
Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880697-5016S
Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880697-5016S
$2,702.91
In Stock

What the Garrett G30-900 is

The G30-900 is a Garrett G-Series turbo that Garrett places in the most powerful mid-frame series on the market, rated at 550 to 900 horsepower on engines of 2.0 to 3.5 liters. It has a 62 / 76 mm, 65 trim compressor wheel in a 0.72 A/R housing, a 60 / 55 mm, 84 trim turbine wheel and a maximum speed of 145,000 rpm. Garrett sells supercores (880693-5003S standard, 880694-5003S reverse) and complete standard-rotation turbos with an internally wastegated V-band housing (880704-5008S, 0.83 A/R; 880704-5009S, 1.01 A/R).

This page lists G30-900 turbos in standard and reverse rotation with V-band housings from 0.61 to 1.21 A/R, internally wastegated versions, T3 open-inlet, T31 and T4 housings, and the CHRAs. Garrett’s own guidance on turbine housings: a smaller A/R gives quicker boost response and more turbine power at low engine speed; a larger A/R lets the wheel flow more, with lower back pressure and more power at high engine speed.

Sources: Garrett G30-900 catalog page · Garrett: Turbine Housings 101

About the Garrett G30-900

In the catalog
15 complete turbochargers and 2 CHRA cartridges
Complete turbo price
$2,622 to $2,922
Shop by category
G Series·G30 - Garrett G Series·Garrett Performance Turbos·CHRA
Rather rebuild yours?Turbo Rebuild Service Looking for another turbo?Browse all turbo models

G30-900 specifications

Wheel sizes are inducer / exducer, taken from the specification published for each part number. The turbine housing sizes are the ones on the listings above; the same turbo is sold with several.

ModelCompressor wheelTurbine wheelCompressor housingTurbine housing A/RListingsFrom
G30-90062 / 76 mm, 65 trim60 / 55 mm, 84 trim0.72 A/R0.61, 0.82, 0.83, 1.01, 1.06, 1.2117$2,623

On G Series turbos the number after the dash is Garrett's horsepower rating: a G30-660 is rated for up to 660 hp.
