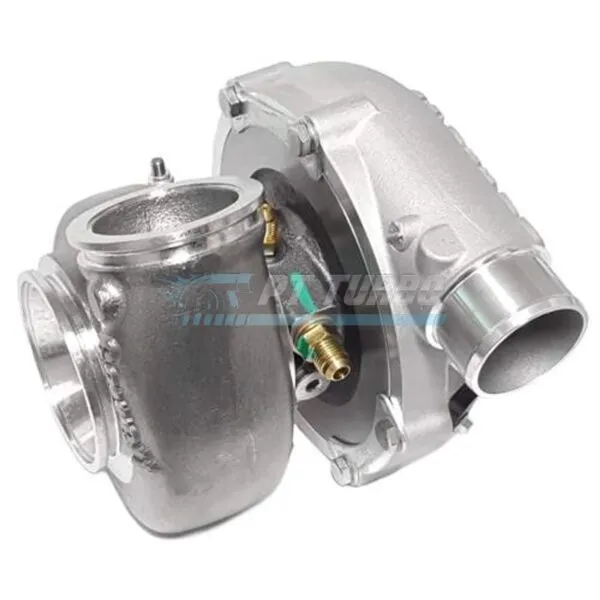

Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S
Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S
Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S
Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S

Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S

$2,622.95

Garrett G30-900 reverse rotation turbo (P/N 880698-5015S) with 62/76mm compressor wheel, 0.72 A/R, and 60/55mm turbine wheel. Features V-Band inlet/outlet, 1.01 A/R oversized turbine housing, and includes oil/coolant fittings plus clamps.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 Inch
  • Compressor Housing Outlet: 2 Inch
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 1.01 O/V
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch (90mm) O.D. V-Band w/81mm centering ring
  • Rotation: Reverse Rotation
  • Garrett P/N: 880698-5015S
Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Turbocharger, Garrett G30-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5015S”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G30-900

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
