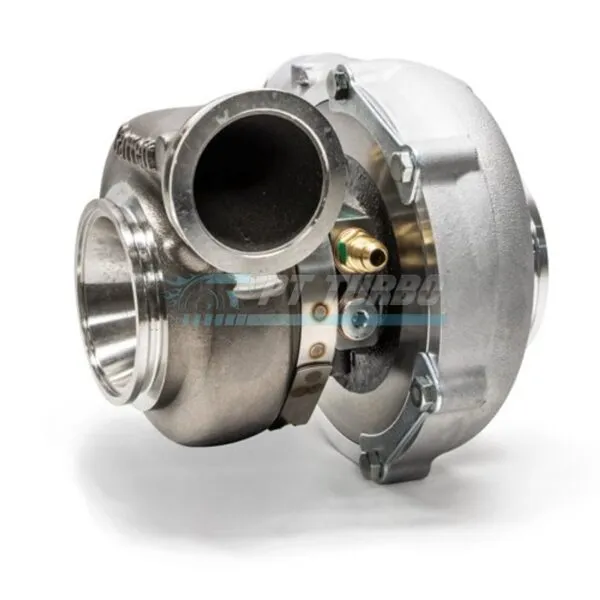

Turbocharger, Garrett G30-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880697-5016S

Specifications

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: 0.83 O/V
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch (90mm) O.D. V-Band w/81mm centering ring
• Rotation: Standard
• Bearing Type: Ball Bearing
• HP Capacity: Up to 900 hp
• Garrett P/N: 880697-5016S

What’s Included

• Oil Feed (1mm) Restrictor Fitting to -4AN
• Two Coolant Fittings to -6AN
• Turbine Housing Inlet & Outlet V-Band Clamps
