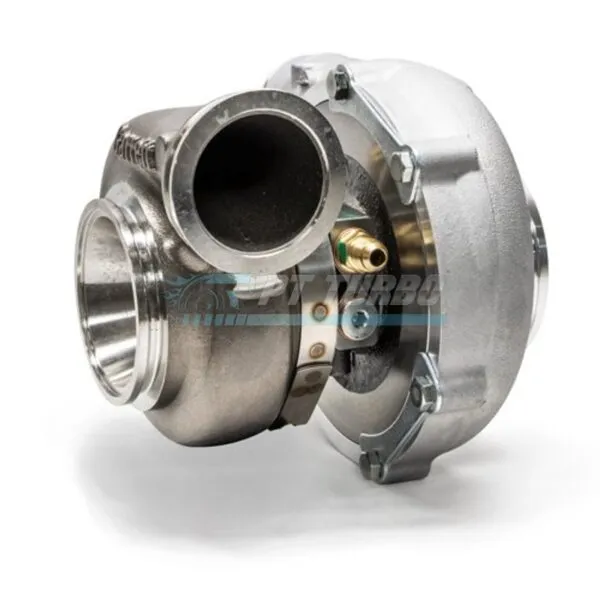

Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S
Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S

Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S

$2,702.91

Garrett G30-900 (P/N 880697-5017S) with 62/76mm compressor wheel, 60/55mm turbine wheel, 0.72 A/R compressor housing, and 1.01 A/R turbine outlet. Standard rotation, V-Band in/out configuration with ball bearing support, includes oil feed restrictor and coolant fittings.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R (O/V): 1.01
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
  • Bearing Type: Ball Bearing
  • Rotation: Standard Rotation
  • Garrett P/N: 880697-5017S

What’s Included

  • Oil Feed (1mm) Restrictor Fitting to -4AN
  • Two Coolant Fittings to -6AN
  • Turbine Housing Inlet & Outlet V-Band Clamps
Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5017S”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G30-900

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
