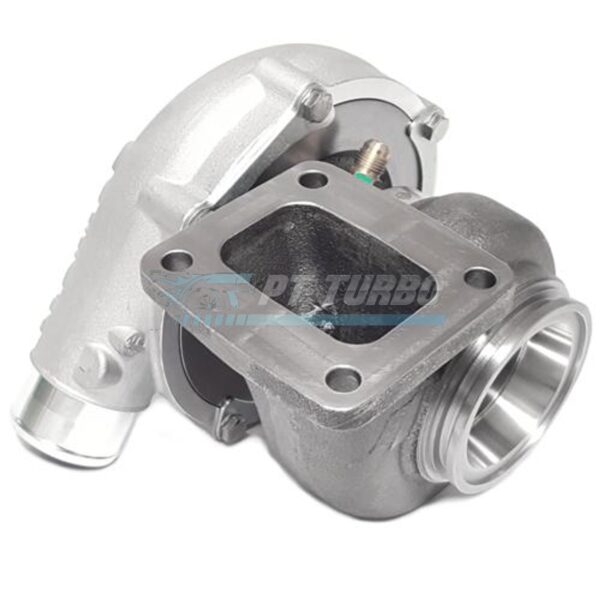

The Garrett G30-900 Standard Rotation turbocharger is built for serious performance enthusiasts who demand aggressive boost response without sacrificing top-end capability. With its advanced compressor and turbine wheel design, this turbo delivers exceptional efficiency and power potential for high-output builds. It’s the right choice for those seeking a proven, race-ready turbocharger platform backed by Garrett engineering.

Specifications

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Compressor Inlet: 4″
• Compressor Outlet: 2″
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: 0.82
• Turbine Housing Flange: T4 Undivided (open)
• Turbine Housing Outlet: V-band
• Rotation: Standard Rotation
• HP Capacity: Up to 900 HP

Performance & Application

The G30-900 is engineered for high-horsepower applications where aggressive boost response and strong top-end power are both required. Its 0.82 A/R T4 undivided turbine housing with V-band exit is suited to builds prioritizing efficient exhaust flow and easy turbo-back plumbing. This configuration is well suited to enthusiasts building serious power platforms that need a turbocharger capable of supporting up to the stated horsepower capacity. The standard rotation design and open T4 turbine housing make it a strong fit for custom high-performance turbo systems.

Frequently Asked Questions

What HP can the Garrett G30-900 support?

The Garrett G30-900 delivers up to 900 HP on compatible applications.

What is the compressor A/R and turbine A/R on this G30-900?

This G30-900 features a 0.72 compressor A/R and a 0.82 turbine A/R.

What turbine housing flange and outlet does this G30-900 use?

It uses a T4 undivided (open) turbine housing with a V-band outlet.

What compressor inlet and outlet sizes does this turbo have?

This turbocharger has a 4″ inlet and 2″ outlet compressor housing.

For builds targeting serious power with responsive boost delivery, the Garrett G30-900 Standard Rotation turbocharger offers a proven combination of compressor and turbine design engineered to perform.
