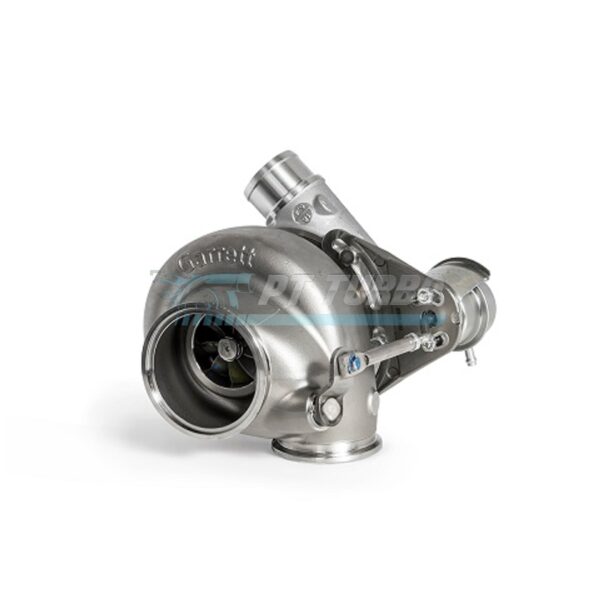

Turbo, Garrett G30-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5008S
Turbo, Garrett G30-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5008S
Turbo, Garrett G30-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5008S

Turbo, Garrett G30-900, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880704-5008S

$2,921.70

Garrett G30-900 (P/N 880704-5008S) delivers up to 900 HP with 62/76mm compressor wheel, 0.72 A/R housing, and internally wastegated 0.83 A/R turbine housing. V-band inlet/outlet with ball bearing center section, 4″ compressor and 2″ outlet housings. Standard rotation configuration.

The Garrett G30-900 is a purpose-built, ball bearing performance turbocharger engineered for enthusiasts and builders who demand serious top-end power without sacrificing usable spool. With its internally wastegated turbine housing and v-band in/out configuration, it’s the ideal choice for high-horsepower street and race applications that require a clean, simplified installation. This is a turbo built for those who take their build seriously and won’t compromise on component quality.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 Inch
  • Compressor Housing Outlet: 2 Inch
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 0.83 (Internal Wastegate)
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
  • Bearing Type: Ball Bearing
  • Rotation: Standard Rotation
  • HP Capacity: Up to
Weight 20 lbs
Actuator

,
