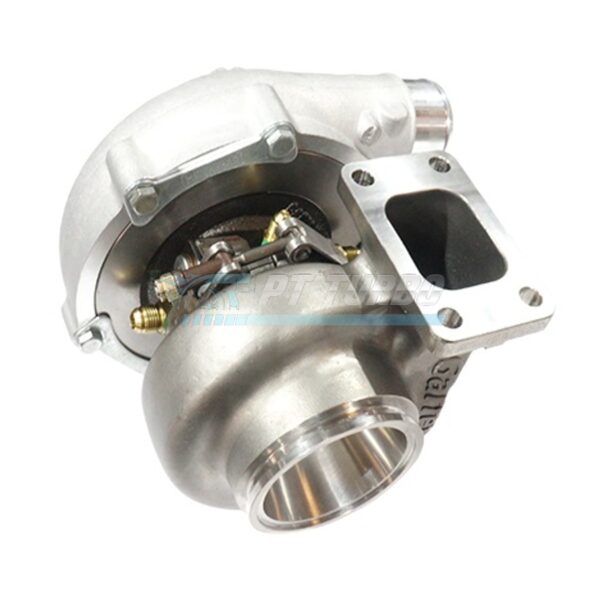

Turbocharger, Garrett G30-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3″ VB OUT

Specifications

• Compressor wheel: 62 mm inducer, 76 mm exducer, 65 trim
• Compressor housing: 0.72 A/R, 4″ inlet and 2″ outlet
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Turbine inlet: open (undivided) T3
• Turbine outlet: V-band, 90 mm outside diameter with an 81 mm centering ring
• Rotation: standard

Features

• G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• One-piece center housing and backplate
• Mar-M alloy turbine wheel and stainless steel turbine housing, both rated to 1050°C (1922°F)
• Oil restrictor and water fittings included: a 1 mm oil feed restrictor to -4AN and two coolant fittings to -6AN
