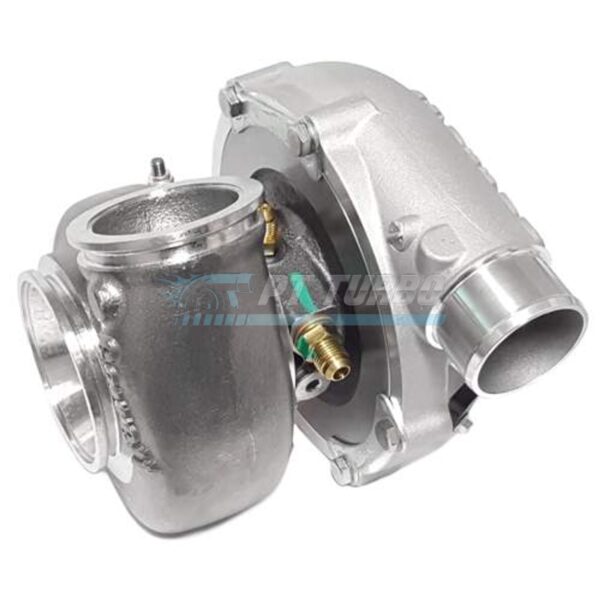

The Garrett G30-900 reverse rotation turbocharger is engineered for builders demanding high-flow performance with the layout flexibility that reverse rotation and V-Band connections provide. Built on Garrett’s proven G Series platform, this unit is suited to serious performance applications where precise housing orientation and rapid response matter as much as top-end capability. It’s the choice for enthusiasts and shops building a turbo system around specific packaging and flow requirements rather than settling for off-the-shelf configurations.

Specifications

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 Inch
• Compressor Housing Outlet: 2 Inch
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: 1.21 O/V
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
• Rotation: Reverse Rotation
• Bearing System: Ball Bearing
• Garrett P/N: 880698-5016S

Performance & Application

This G30-900 configuration is built around a 0.72 A/R compressor housing paired with a 1.21 A/R O/V turbine housing, giving builders a turbine housing option engineered for strong exhaust flow characteristics. The reverse rotation design and V-Band inlet/outlet connections on both the compressor and turbine sides make this unit well suited to installations where housing orientation and clocking flexibility are critical to the overall turbo system layout. Ball bearing construction underpins the unit’s responsiveness, making it a strong fit for builds that demand both quick spool characteristics and the ability to flow at higher levels.

What’s Included

• Oil Feed (1mm) Restrictor Fitting to -4AN
• Two Coolant Fittings to -6AN
• Turbine Housing Inlet & Outlet V-Band Clamps
