Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5001S
Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5001S
Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5001S
Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5001S

Turbocharger, Garrett G35-900, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5001S

$3,211.47

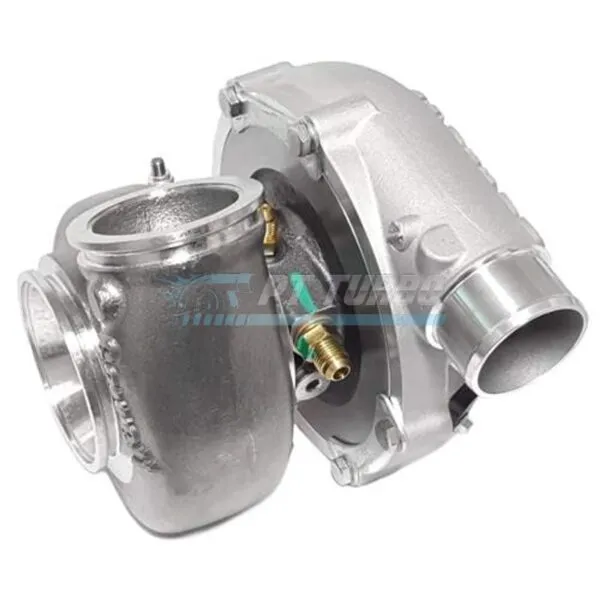

Garrett G35-900 reverse rotation turbo (P/N 880701-5001S) with 62/76mm compressor wheel, 68/62mm turbine wheel, 0.72 compressor A/R, and 0.61 O/V turbine A/R. V-Band inlet/outlet, ball bearing design with included oil restrictor and coolant fittings for versatile engine applications.

The Garrett G35-900 reverse rotation turbocharger is engineered for builders who demand precision performance in a compact, high-flowing package. Its reverse rotation configuration and V-band connections make it the ideal choice for custom engine layouts where conventional turbo orientation won’t work. This is a purpose-built solution for enthusiasts and professional shops constructing serious forced-induction setups from the ground up.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 Inch
  • Compressor Housing Outlet: 2 Inch
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 0.61 O/V
  • Turbine Housing Inlet: 3 In
Weight 20 lbs
