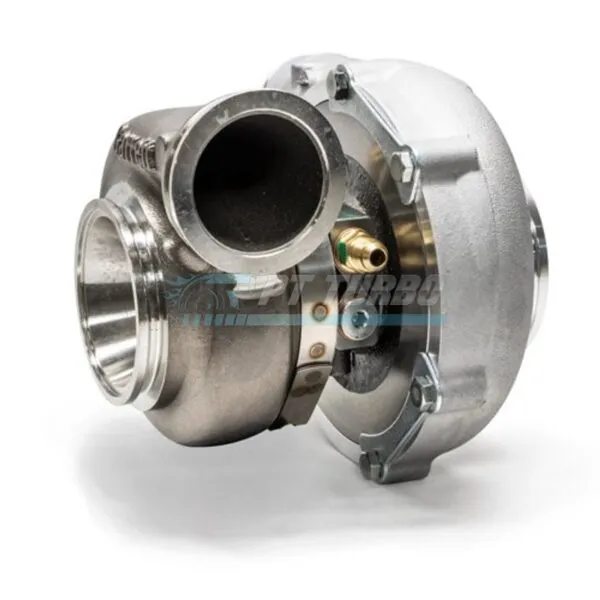

The Garrett G35-900 is a ball bearing turbocharger built for enthusiasts and engine builders who need serious top-end power capacity without sacrificing a broad, usable powerband. Engineered with Garrett’s G Series compressor and turbine wheel technology, this unit is designed for high-horsepower builds that demand both efficiency and durability. Its V-Band in/out configuration and standard rotation design make it a strong fit for custom turbo systems built around performance and reliability.
Specifications
- Compressor Wheel Inducer: 62mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R: 0.61 A/R O/V
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Rotation: Standard
- Bearing Type: Ball Bearing
- HP Capacity: 900hp
- Garrett P/N: 880700-5001S
Performance & Application
The G35-900 is built for high-output engine applications requiring substantial horsepower capacity while maintaining ball bearing responsiveness. Its compressor and turbine wheel geometry is designed to deliver strong spool characteristics
