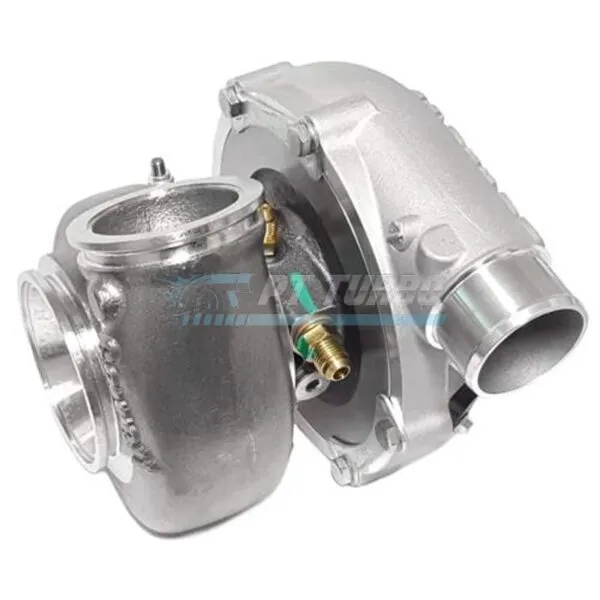

Turbocharger, Garrett G35-900, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880701-5003S

Specifications

• Compressor Wheel Inducer: 62mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 Inch
• Compressor Housing Outlet: 2 Inch
• Turbine Housing A/R: 1.01 O/V
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 Inch O.D. V-Band
• Rotation: Reverse Rotation
• HP Capability: 900+ hp
• Garrett P/N: 880701-5003S

What’s Included

• Oil Feed (1mm) Restrictor Fitting to -4AN
• Two Coolant Fittings to -6AN
• Turbine Housing Inlet & Outlet V-Band Clamps
