Holset HE221W Turbocharger: Cummins 4-Cylinder ISB, ISBe & QSB4.5 Application Guide

The Holset HE221W Turbocharger is one of the smallest wastegated turbos Cummins fits to its four-cylinder B-series engines, and it shows up on everything from city buses to compact wheel loaders across world markets. If you are chasing a replacement, the hardest part is not finding a unit, it is matching the exact number on the tag, because the HE221W is built in several ratings and emissions levels that look nearly identical. This guide walks through where the HE221W belongs, how its wastegated design works, what fails, and how to source the right one.

PT Turbo has been rebuilding turbochargers since 1978, more than 45 years, and we stock both new and remanufactured units along with the cores behind them. Everything below is written to help a mechanic, fleet buyer, or owner-operator order the correct turbo the first time.

What the Holset HE221W Turbocharger Is

The HE221W is a fixed-geometry, wastegated Holset turbocharger sized for Cummins four-cylinder diesels. In Holset nomenclature the trailing W means wastegated: there are no variable vanes, no unison ring, and no electronic actuator on this unit. Boost is managed by a wastegate that bleeds exhaust around the turbine once target pressure is reached.

Holset, founded in 1952, has been part of Cummins since 1973 and became Cummins Turbo Technologies in 2006, so the HE221W is a factory-matched part for these engines rather than a generic aftermarket fit. You can see every unit and part we carry on our Holset HE221W turbochargers page.

Because it is a wastegated fixed-geometry turbo, the HE221W is a simpler device than the variable-geometry Holsets on the larger B-series engines. That simplicity is a strength: fewer moving parts in the hot section and no actuator calibration to perform after a swap. For background on how a turbocharger moves exhaust energy into intake boost, Wikipedia’s turbocharger overview is a solid primer.

Cummins Engine Applications for the HE221W

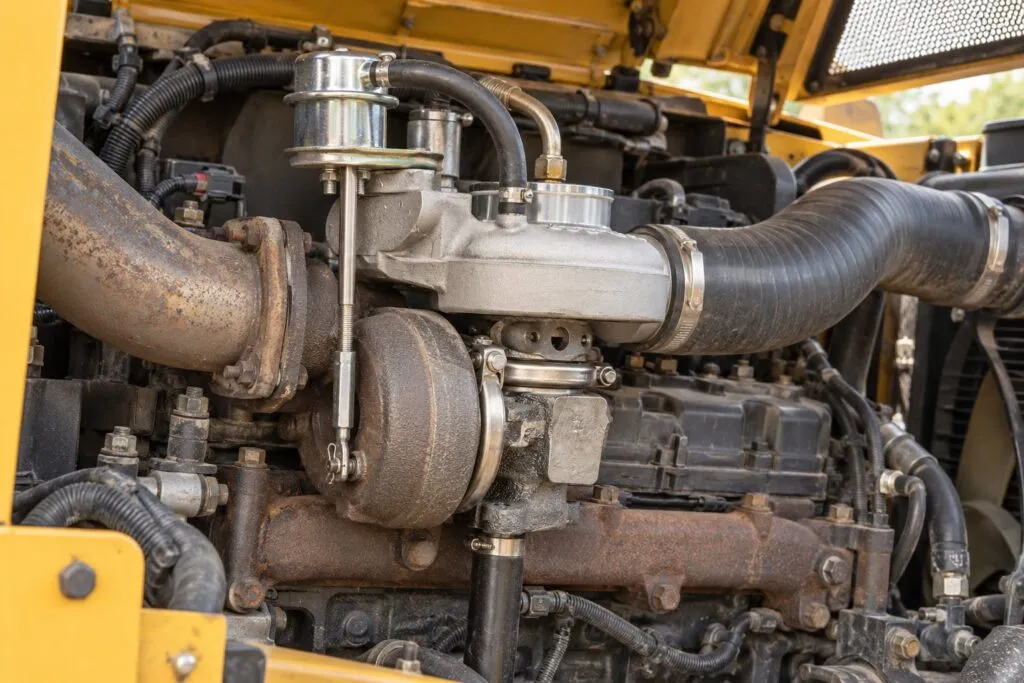

Our supplier listings and outside sellers tie the HE221W to Cummins four-cylinder B-series engines used in trucks, coaches, and buses, plus some off-highway machines. The four-cylinder ISBe is a 4.5L engine per Cummins’ own ISBe sheet, which lines up with the QSB4.5 on the machine side.

Application	Typical use	Notes
QSB4.5 / QSB4	Off-highway machines, loaders, excavators	Industrial 4-cylinder B-series
ISBe4 / ISBe5	Trucks, coaches, city buses	4-cylinder ISBe rated 4.5L by Cummins
ISDe4 / 4ISBe	Export and world-market commercial vehicles	Dongfeng, Kamaz, Ashok Leyland platforms
ISB (4-cyl)	Commercial and some industrial	Match by tag number

Some sellers also list the HE221W for 3.9L versions of the B-series, but none of our own catalog listings name a 3.9L engine, so treat that as a seller claim and verify against the tag, not as confirmed fitment. What is not in question: the HE221W is not a Ram pickup turbo. If you are working on a Ram 2500 or 3500, see our 5.9L Cummins turbo guide or the 6.7L Cummins turbo guide instead.

Why You Must Order a Holset HE221W Turbocharger by Tag Number

HE221W part numbers differ by power rating and emissions level, and the housings can look the same across those variants. The Holset data plate on the compressor housing carries the assembly number and the engine maker’s customer number. That tag is the only reliable way to order, because a casting number stamped into a housing is shared across many turbos and does not identify your exact unit.

When you request a unit from us, send the full number off the data plate. Wheel sizes and turbine housing A/R can help confirm a match, but the tag number comes first.

How the Wastegated Design Works

On a wastegated turbo, the turbine side runs a fixed flow path. As exhaust energy climbs, boost rises until the wastegate opens a bypass passage around the turbine wheel, holding peak boost to the engine’s target. When boost falls back, the gate closes and the turbine sees full flow again.

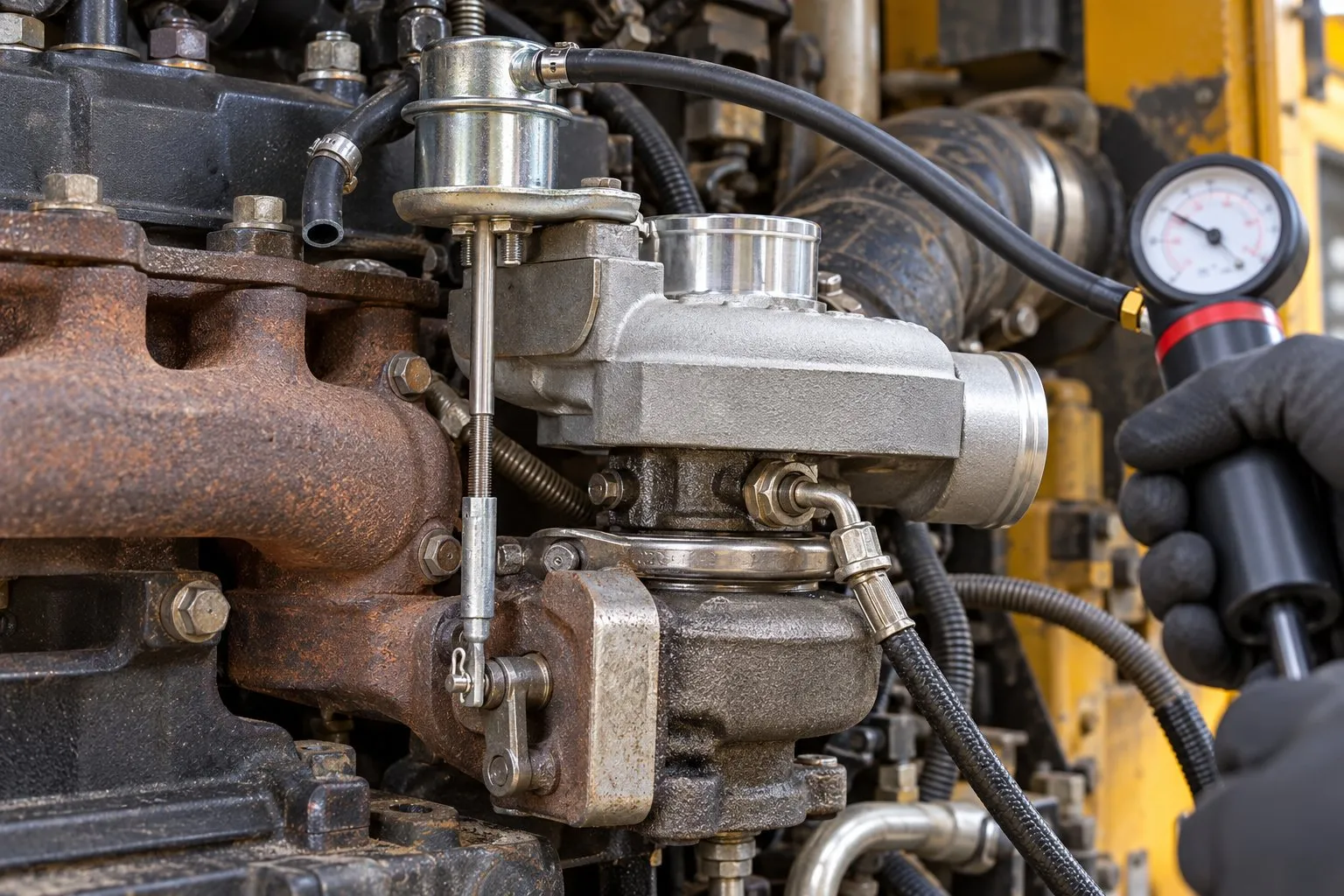

A boost-opened wastegate actuator uses a spring-loaded diaphragm referenced to charge pressure. Understanding that direction matters for diagnosis: if the diaphragm leaks, the gate opens late, which produces overboost, not low boost. A gate that will not seat, by contrast, lets exhaust slip past the turbine early, giving low boost and lazy spool.

Unlike the variable-geometry Holsets on larger Cummins engines, there is nothing on the HE221W to calibrate with a service tool. There is no sliding nozzle, no vane position sensor, and no electronic actuator. That keeps replacement straightforward. If you want to see how the other side of the Cummins B-series line works, our ISB 6.7L variable-geometry guide covers the VGT units in detail.

Whether these engines use EGR depends on the emissions level: some four-cylinder ISBe and QSB versions run cooled high-pressure EGR, while others, such as the Stage V B4.5, have no EGR at all, so check the engine you have before assuming EGR plumbing. On a high-pressure EGR system the exhaust gas is returned to the intake after the compressor, so it does not pass through the compressor wheel. If you are chasing an EGR fault alongside a boost complaint, see Wikipedia’s EGR overview for how the loop is plumbed.

Common HE221W Failures and What to Check

Most turbo failures trace back to the oil supply, and the HE221W is no exception. A journal-bearing turbo lives on a clean, pressurized oil feed and a free-draining return; interrupt either and the bearings go. Here is how the common complaints sort out.

Symptom	Likely cause	First checks
Low boost, slow spool, dark smoke	Wastegate not seating, leak before the turbine, intake restriction	Wastegate linkage, up-pipe and manifold joints, air filter
Overboost	Leaking wastegate actuator diaphragm (gate opens late)	Actuator diaphragm, boost reference line
Oil in charge piping	Crankcase ventilation, restricted drain, or compressor seal	Breather, oil level, drain routing before condemning the turbo
Bearing noise or play	Oil starvation, contamination, or coked oil	Feed line, oil quality, shaft play within the maker’s limits

A couple of diagnostic rules save turbos that are not actually bad. Some side-to-side shaft play is normal on a journal-bearing turbo; condemn it for in-and-out play you can feel, for wheel contact with the housing, or for play beyond the maker’s limit, never for any movement at all. And a film of oil in the charge pipes is normal on any engine with closed crankcase ventilation, so check the breather, filter, oil level, and drain before blaming a seal.

If a compressor wheel has shed metal, the intercooler must be replaced, not just flushed. Debris trapped in the cooler fins cannot be cleaned out reliably, and whatever stays behind goes straight into the engine. Inspect and clean the charge piping at the same time.

On these electronic commercial engines a boost fault may log through the engine controller rather than generic OBD-II codes, and world-market trucks often report SPN and FMI numbers. Where generic codes do appear, a wastegate or boost-control complaint usually surfaces as an overboost (P0234) or underboost (P0299) code, with a wastegate-solenoid circuit code such as P0243 pointing at the electrical side.

New vs Remanufactured HE221W: Sourcing the Right Unit

You have two sound paths with an HE221W: a new replacement or a quality remanufactured unit built on a sound core. Both put the correct, factory-matched geometry back on the engine when they carry the right part number for your rating and emissions level.

Option	Best when	Notes
New turbo	No usable core, or you want factory-new everything	In stock at the shop ships same day when ordered before 2 PM Pacific
Remanufactured	You have a core to return	Core return within 30 days; customer pays return shipping
Rebuild your own	You want your exact unit back	Most rebuilds ship in 3 days or less; price confirmed after inspection

Because HE221W pricing depends on the exact variant, current pricing is on the product page or available by phone at (909) 824-1020. If you are weighing a rebuild, our turbo rebuild price list shows real pricing by model. Every unit we send out carries a 12-month, unlimited-mileage warranty, and fleet customers can arrange priority turnaround and core stocking by phone through our contact page.

Whatever route you choose, prime the turbo with clean engine oil, turn the wheel by hand, and crank or idle a few minutes before load, following the maker’s first-start steps. There is no special mileage schedule or early oil change required beyond that.

Frequently Asked Questions

Does the Holset HE221W Turbocharger fit a Ram pickup?

No. The HE221W is a four-cylinder B-series turbo used in commercial trucks, buses, and machines; Ram 2500 and 3500 pickups use six-cylinder 5.9L and 6.7L Cummins engines with HX, HY, HE351CW, HE351VE, or HE300VG turbos instead.

How do I identify the correct HE221W for my engine?

Read the Holset data plate on the compressor housing and order by that assembly number. The HE221W is built in several ratings and emissions levels, so the housing casting number alone will not pin down your exact unit; the tag number does.

Does the HE221W need actuator calibration after replacement?

No. It is a fixed-geometry wastegated turbo with no variable vanes and no electronic actuator, so there is nothing to calibrate with a service tool. Just confirm the wastegate and its boost reference line are sound, then follow the maker’s priming and first-start steps.
