Holset HE341VE Turbocharger: 5.9L Cummins Application, Specs & Replacement Guide

The Holset HE341VE Turbocharger is one of the more misunderstood units in the 5.9L Cummins family, largely because it sits between the well-known fixed-geometry HX35/HY35 chargers and the later variable-geometry HE351VE found on 6.7L engines. If you run a mid-range Cummins ISB or ISBe application and you are chasing a boost problem, a whistle, or a check-engine light tied to turbo actuation, this guide walks through the specs, the failure points, and how to replace or rebuild the unit correctly.

At PT Turbo we have been rebuilding Holset chargers since 1978, more than 45 years, and we stock both new and remanufactured cores along with the actuators these turbos depend on. Here is what you need to know before you pull the unit.

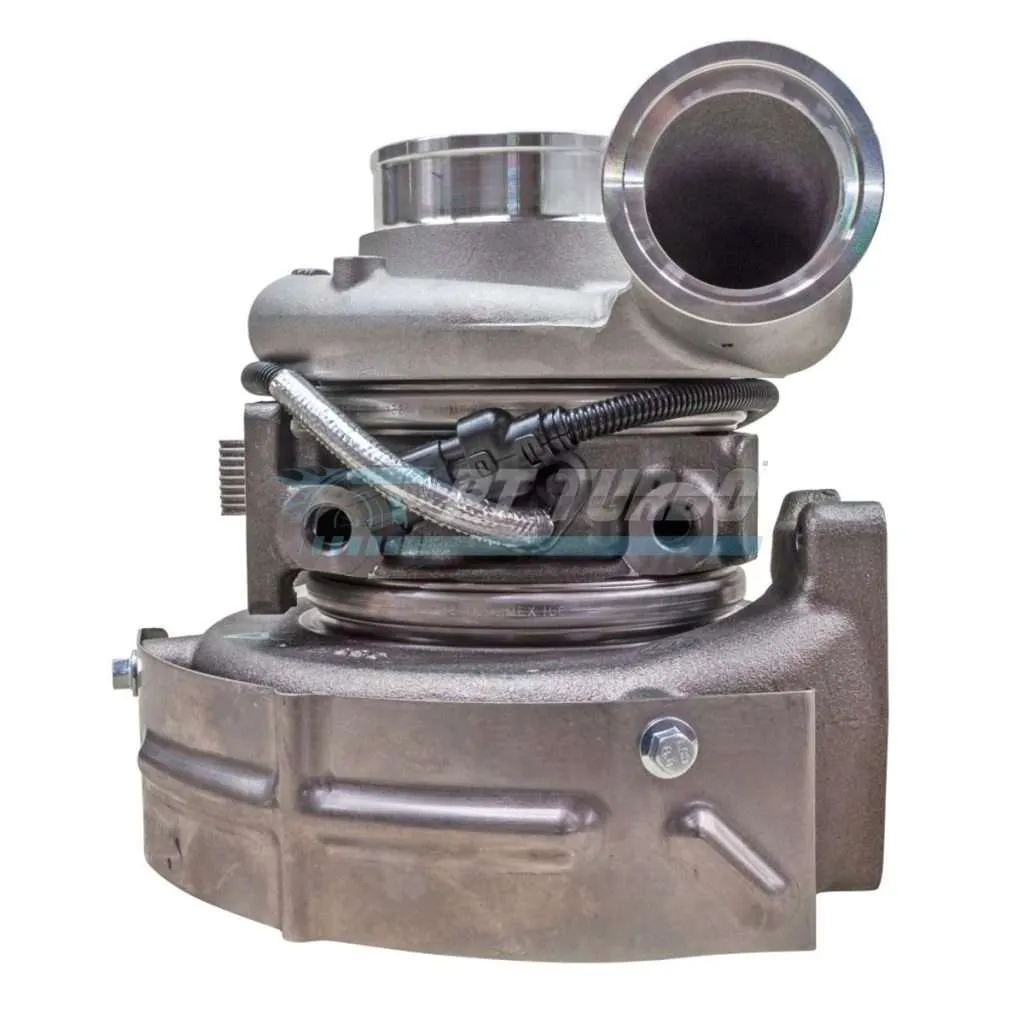

What the Holset HE341VE Is and Where It’s Used

The HE341 is the OEM-fitment cousin of the HX35 frame that made the 5.9L Cummins legendary. It shares the same basic 54mm-class compressor architecture but was built for factory and industrial applications rather than the aftermarket performance crowd.

The “VE” suffix is the important part. It designates a variable-geometry turbine section with electronic control, as opposed to the fixed nozzle ring on an HX35. Instead of a wastegate dumping excess drive pressure, adjustable vanes in the turbine housing change the effective A/R on the fly. That gives you fast spool at low RPM and controlled backpressure up top.

You will find HE341VE-family units on 5.9L Cummins ISBe and mid-range ISB platforms, particularly Euro-spec and medium-duty truck applications where emissions control demanded variable geometry. If you want the full breakdown of every charger fitted to these engines, our Ram 2500/3500 5.9L Cummins Turbocharger Guide: HX35, HY35 & HE341VE Explained covers the differences in detail.

Holset HE341VE Turbocharger Specs

Exact trims vary by OEM part number, but the HE341VE family runs in a consistent range. These are the figures to work with when you are matching a replacement or checking a rebuild against spec.

Specification	HE341VE (typical)
Frame family	HE341 / HX35 class
Turbine type	Variable geometry (electronic)
Compressor inducer	~54 mm
Compressor exducer	~76 mm
Turbine wheel	~60 mm
Bearing system	Journal (floating) bearings
Wastegate	None (VGT vanes replace it)
Oil feed	Pressure fed, gravity drain
Typical flow	Supports ~275-350+ HP applications

The variable-geometry turbine is what separates this unit from a plain HX35. If you want the engineering background on how those vanes work, the overview at this variable-geometry turbocharger reference is a solid primer.

Common HE341VE Failure Modes

Variable-geometry Holsets fail in predictable ways, and most of the trouble is downstream of the actual bearing cartridge. The vane mechanism and its control hardware take the brunt of the abuse because they live in a hot, sooty, high-cycle environment.

Sticking or seized VGT vanes

Carbon and soot build up on the unison ring and vane posts. When those vanes stop moving freely you lose low-end response, throw actuator position codes, and in bad cases lose boost control entirely. This is the number one killer of variable Holsets and it is heavily aggravated by short-trip idling and cheap oil.

Actuator failure

The actuator that drives the vane mechanism is a wear item. When it can’t hit commanded position, or the calibration drifts, you get limp mode, poor throttle response, and DTCs. A failed actuator does not always mean a failed turbo, which is good news for your parts budget.

Bearing and shaft wear

Standard oil-related failures apply here: coked oil feeds, delayed oil after a hot shutdown, or contaminated oil chew up the journal bearings. Excessive shaft play shows up as oil in the intake, blue smoke, and a rising whistle.

Symptom	Likely Cause	Severity
Sluggish spool, low boost	Sticking VGT vanes / soot buildup	Moderate
Limp mode, actuator position code	Failed or drifting actuator	Moderate
Blue/black smoke, oil in intake	Worn bearings, seal failure	Severe
Rising whistle / grinding	Shaft play, wheel contact	Severe
Overboost then cut-out	Vanes stuck closed	Severe

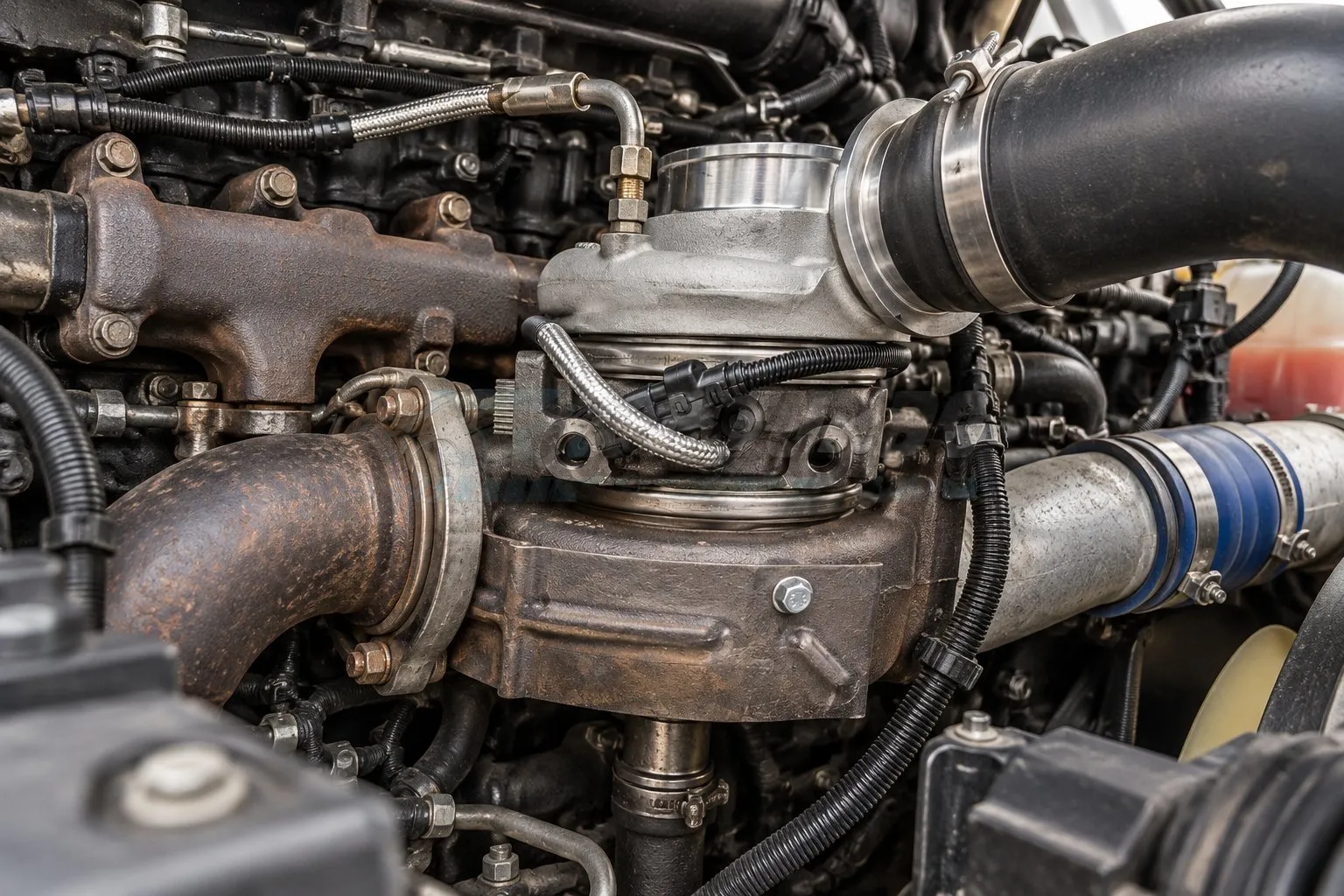

Actuators and Replacement Parts for the HE341VE Turbocharger

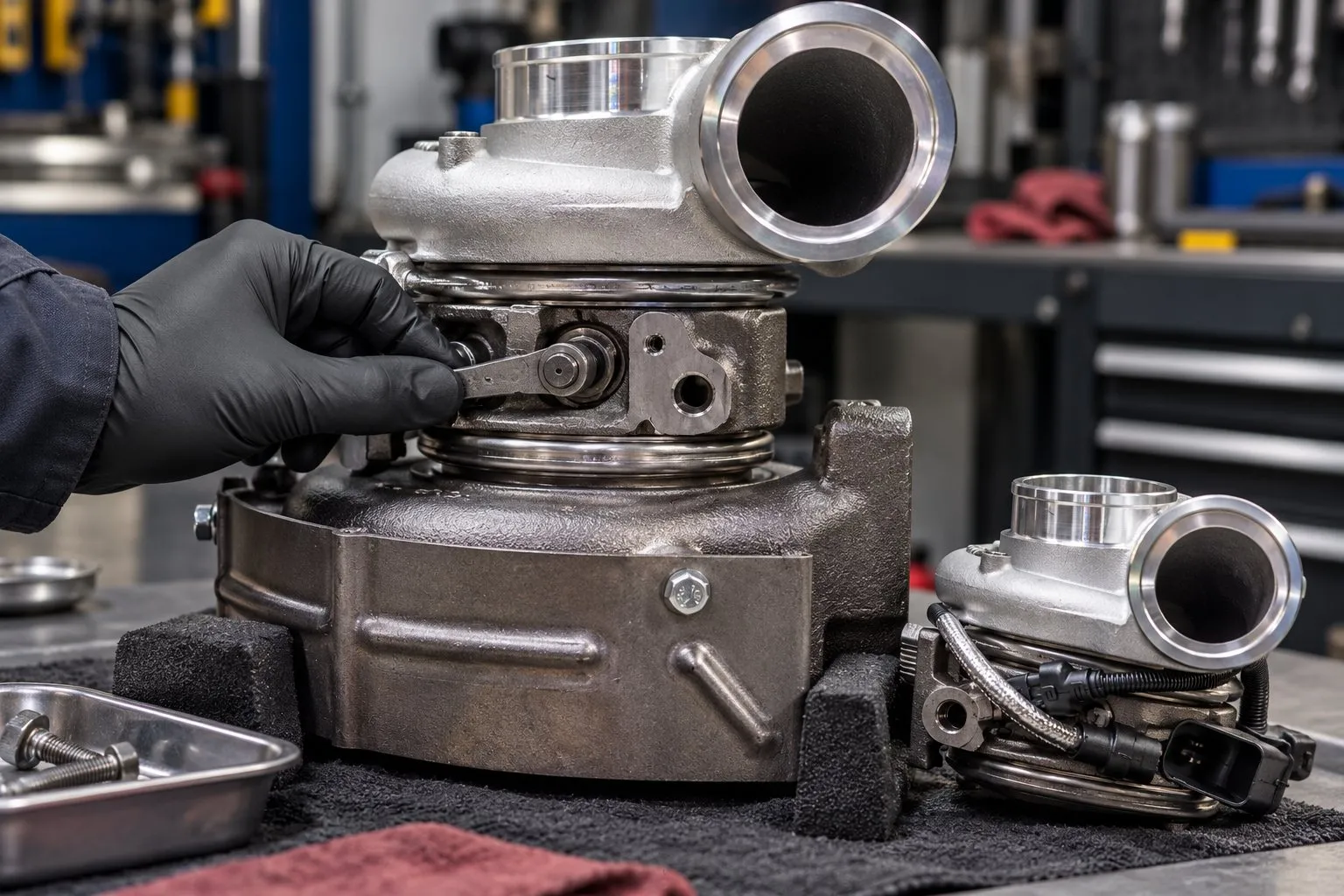

Because so many variable Holset problems trace back to the actuator, it pays to diagnose that component before condemning the whole unit. Confirm the vanes move freely by hand (with the turbo cold and off the engine) before spending money on a new actuator, otherwise you will burn out the replacement the same way.

PT Turbo stocks a wide range of pneumatic and electronic actuators across the Holset, Garrett, and Mitsubishi lines, which matters because many of these mid-range diesel platforms share actuator hardware and calibration families. A few we keep on the shelf:

• Garrett Pneumatic Actuator 757979-5102, a heavier-duty unit for larger VGT applications, available from PT Turbo for $240.94, view the Garrett Pneumatic Actuator 757979-5102 here.
• Garrett Pneumatic Actuator 445963-0040, a premium replacement for high-flow diesel VGTs, priced at $465.52, view the Garrett Pneumatic Actuator 445963-0040 here.
• Mitsubishi TD03 Pneumatic Actuator 49S3118761, a cost-effective option for smaller-frame variable units at $104.33, view the Mitsubishi TD03 Actuator 49S3118761 here.
• Mitsubishi Pneumatic Actuator 4918918935, the budget-friendly choice at $83.99, view the Mitsubishi Pneumatic Actuator 4918918935 here.

Not sure which actuator matches your exact OEM turbo number? Send us your casting and part numbers through the PT Turbo contact page and we will cross-reference it for you. Fitting the wrong actuator or one with the wrong calibration will drive codes even when the hardware is physically bolted on correctly.

Replace, Rebuild, or Buy Remanufactured?

You have three real paths with a failing HE341VE, and the right one depends on the failure mode and your downtime tolerance.

If the cartridge is healthy and the problem is a stuck vane ring or a bad actuator, a rebuild is the smart money. Our turbocharger rebuild service tears the unit down, cleans the vane mechanism, replaces the bearings and seals, balances the rotating assembly, and recalibrates the actuator to spec. You keep your original OEM housings and casting numbers, which matters for fitment.

If the turbine housing is cracked or the wheels are damaged, a
