Holset HX35 Turbochargers
PT Turbo lists 59 complete turbochargers and 38 CHRA cartridges for the Holset HX35, with complete turbos from $499 to $1,897. Most fit Cummins engines, with others for Iveco, Daewoo, Case-New Holland (CNH) and Komatsu. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Holset HX35 is
The plain HX35 is the fixed-geometry version of Holset’s HX35, from Holset’s HX range, which Holset began building in 1987 to replace its H Series. Holset distributors list it for Cummins B-series engines in machines and generators: 3787001H for the Komatsu 6BTA / S6D102E (PC200-6 excavator), 4035497 for industrial 6BT 5.9 engines, 4033173H for the 6BT in Case IH MX tractors and New Holland equipment, 4037469 for the Cummins QSB 6.7 (Komatsu SAA6D107E-1) from 2004, and 2838633 for the Iveco NEF6. For 1994-2002 Dodge Ram 5.9L pickups the distributors list the wastegated HX35W instead; that has its own page.
This page lists complete HX35 turbos and CHRAs for Cummins, Iveco, Daewoo, Case-New Holland (CNH), Komatsu and other engines. Each listing here is one exact part number, so match the full number on your turbo’s tag, or call (909) 824-1020 with your engine model and serial number.
Sources: Holset engineering milestones · HX35 for Komatsu 6BTA (parts distributor) · HX35 for Cummins 6BT (parts distributor) · HX35W for 1995-98 Dodge (parts distributor)
About the Holset HX35
- In the catalog
- 59 complete turbochargers and 38 CHRA cartridges
- Engine makes (listings)
- Cummins 59·Iveco 14·Daewoo 3·Case-New Holland (CNH) 2·Komatsu 2·Dongfeng 1
- Engine models listed
- 6BTA, 6BTAA, NEF, 6B, 6BT, 6CT, B Series, 4BT, 4BTA, 6BTM
- Complete turbo price
- $499 to $1,897
- Related models
- HX35W·HX35G·HX35M
- Shop by category
- Cummins Turbos·Holset Turbos·CHRA·Iveco Turbos
Where the Holset HX35 fits
Engines, years and machines as the Applications tables of the complete turbochargers on this page list them, with the part numbers that fit. Match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
| Engine | Years | Used in | Part numbers |
|---|---|---|---|
| Cummins 6BTA | — | — | 4038482H, 4033393H, 3536474H |
| Cummins 6BT 145HP | — | — | 4033173H, 3539654H |
| Cummins 6BTAA | — | Generator | 4036470H, 4033365H |
| Cummins 6BTAA | — | — | 3786885H, 3536474H |

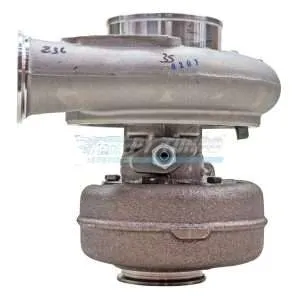

| Iveco 235HP | — | — | 4033371H, 3786541H |
| Cummins 4BT | — | Truck (Class 3-8) | 3596953H |

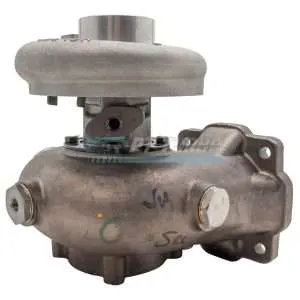

| Cummins 4BTA | — | Boat (Marine) | 3539152H |
| Cummins 6B | — | Generator | 3597863H |
| Cummins 6B | — | — | 3536474H |
| Cummins 6B 190HP | — | Ford | 3597914H |
| Cummins 6BT | — | Excavator | 3598926H |
| Cummins 6BT | — | Generator | 3597863H |
| Cummins 6BT 135HP | — | Generator | 3591364H |
| Cummins 6BT 140-150HP | — | Loader, Excavator | 4031509H |
| Cummins 6BT 166HP | — | Generator | 3591364H |
| Cummins 6BT160 157HP | — | DFM (Dongfeng) Coach/Transit Bus | 3787190H |
| Cummins 6BTA | — | Truck (Class 3-8) | 4038909H |
| Cummins 6BTA | — | Viper FD70 Forklift | 4036325H |
| Cummins 6BTA 330HP | — | — | 3539450H |
| Cummins 6BTAA | — | Hyundai Excavator | 4031650H |
