When Boost Pressure Drops at Highway Speed, you are dealing with one of the most frustrating diagnostic challenges in diesel repair: an intermittent fault that hides at idle and low load, then shows up exactly when the engine is working hardest. The truck pulls fine off the line, cruises clean around town, then loses power at 65 mph on a grade. Codes may or may not set. This guide walks through the real causes, how to isolate them, and the parts that actually fix the problem.
At PT Turbo we have been diagnosing and rebuilding turbochargers since 1978, more than 45 years of hands-on work across Cummins, Duramax, Powerstroke, and hundreds of medium and heavy-duty applications. Intermittent boost loss is a pattern we see constantly, and it almost always traces back to a handful of failure points.
Why Boost Falls Off Only at Speed and Load
Boost is a balance between what the turbine side generates and what the system can hold. At idle and light throttle, demand is low, so a marginal component still delivers enough pressure to feel normal. Push exhaust volume and cylinder demand up on the highway, and any weak link in the chain starts leaking, sticking, or bleeding off.
The key concept is overboost bleed-off versus underboost. A wastegate or variable geometry mechanism that cannot hold position under high exhaust flow will vent boost that the compressor is perfectly capable of producing. That is why the turbo can seem healthy on a bench yet fail on the road.
If you want a refresher on how the turbine, compressor, and control side interact, the turbocharger overview on Wikipedia is a solid technical primer before you start chasing symptoms.
The Most Common Causes When Boost Pressure Drops at Highway Speed
Work these in order of likelihood. Roughly 70 percent of intermittent highway boost complaints we see are actuator or control related, not a failed CHRA (center cartridge).
1. Failing Wastegate or Pneumatic Actuator
The pneumatic actuator sets the reference point for boost control. When the diaphragm inside weakens or the spring loses tension, it starts to open early under high exhaust pressure. The result is textbook: normal boost at low load, then a sudden fall-off as flow increases and the gate cracks open.
You can test this with a hand vacuum or pressure pump. Apply the rated pressure and watch the rod. It should move smoothly and hold position without creeping back. A rod that drifts or a diaphragm that will not hold pressure is your fault.
Replacement actuators are application specific. For many Garrett units we stock the Garrett Pneumatic Actuator 757979-5102, available from PT Turbo for $240.94. On heavier Garrett applications with higher spring rates, the Garrett Pneumatic Actuator 445963-0040 at $465.52 is the correct calibrated unit, and using the right spring pressure matters more than most techs realize.
On Mitsubishi TD03 and similar smaller frame turbos, the actuator is a frequent intermittent-boost culprit. We stock the Mitsubishi Pneumatic Actuator TD03 49S3118761 for $104.33, and the Mitsubishi Pneumatic Actuator 4918918935 for $83.99. Always match the part number to your exact turbo model, since spring calibration varies between otherwise identical looking castings.
2. Boost Leaks in the Charge Air System

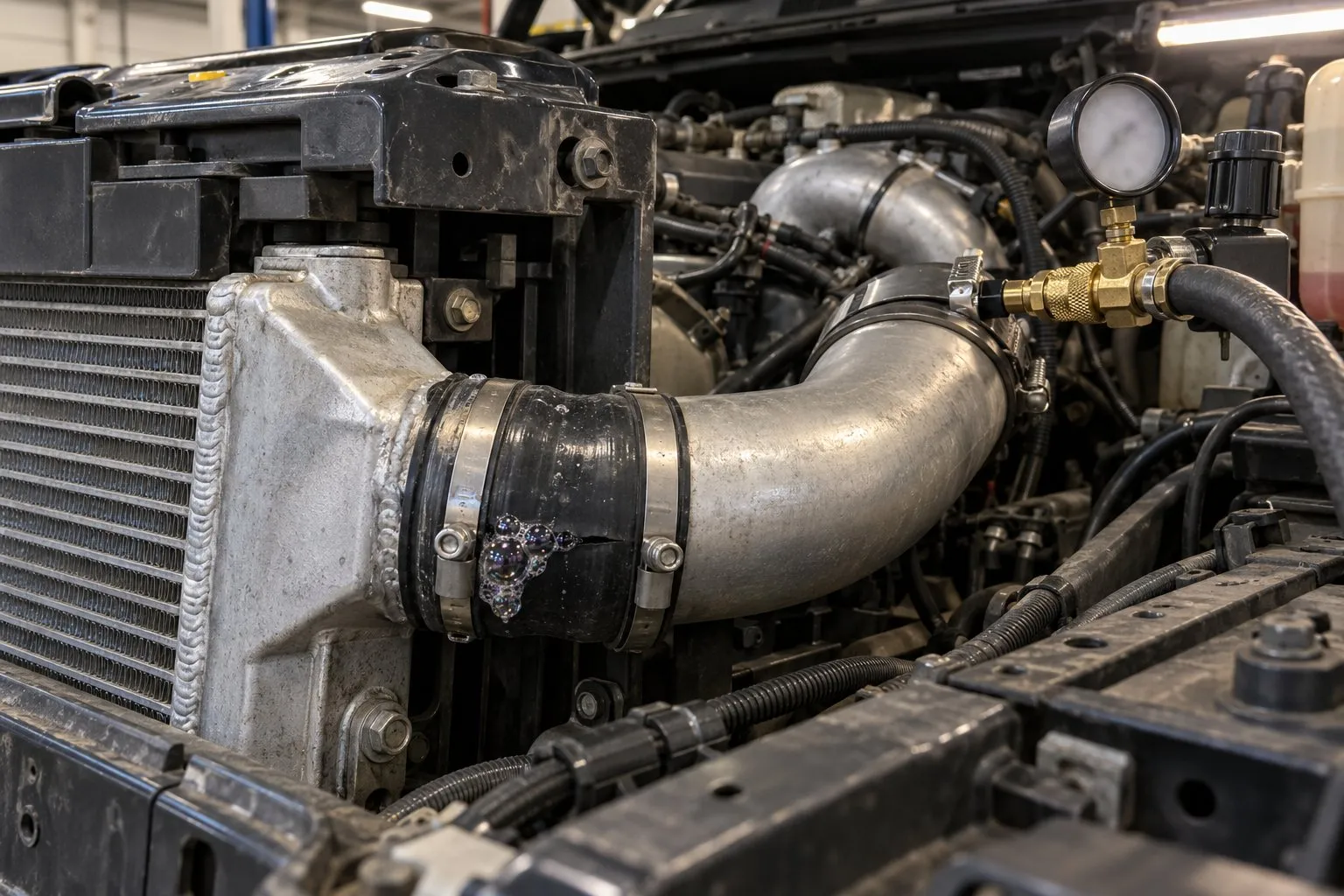

A cracked intercooler, split boot, loose clamp, or leaking charge air cooler will only reveal itself under pressure. At low boost the leak is small enough to seal; at 25 to 35 psi it opens up and the ECM sees the pressure it cannot reach.
Pressure test the cold side at 20 to 30 psi with a shop air kit and listen. Pay special attention to the lower intercooler tank and the boots nearest the turbo outlet, which see the most heat cycling and vibration.
3. Sticking Variable Geometry Vanes
On VGT turbos, soot and carbon build up on the vane mechanism. Cold, the vanes move freely; hot and loaded, deposits cause the ring to bind, and the turbo cannot hold its commanded position. This is extremely common on Duramax LBZ and 6.4L Powerstroke platforms.
The variable-geometry turbocharger design depends on clean, free vane movement. If you are working on a Duramax, our Duramax LBZ GT3788VA turbocharger guide covers the exact vane failure patterns for 2006 to 2007 trucks.
4. EGR and DPF Backpressure Issues
High exhaust backpressure from a clogged DPF or a stuck-open EGR valve steals the energy the turbine needs. The engine can hit target boost briefly, then fall off as backpressure climbs on a sustained pull. Check EGR position and DPF differential pressure before condemning the turbo.
Reference the DPF operation basics and EGR system function if you are ruling out aftertreatment as the source.
5. Worn Turbine or Compressor Wheel and Shaft Play
Excessive shaft end play or a wheel with rub damage bleeds efficiency. Grab the compressor nut and check for radial and axial play. Any wheel-to-housing contact, oil in the compressor housing, or measurable axial slop means the cartridge is done and needs a rebuild or replacement.
A Diagnostic Sequence That Actually Works
Do not throw parts at an intermittent fault. Follow a repeatable sequence and log data with a scan tool that shows commanded versus actual boost.
- Step 1: Pull codes and freeze-frame data. Note the RPM and load where boost drops.
- Step 2: Pressure test the charge air system at 25 to 30 psi. Fix any leaks first.
- Step 3: Bench test the actuator with a pressure pump. Confirm it holds and moves through full travel.
- Step 4: Inspect VGT vane movement and check for carbon binding.
- Step 5: Verify EGR position and DPF backpressure under load.
- Step 6: Check shaft play and inspect wheels only after the above are ruled out.
Symptom Severity: What You Feel vs What Is Failing
| Symptom | Likely Cause | Severity | Typical Fix |
|---|---|---|---|
| Gradual power loss on long grades only | Weak actuator diaphragm / early wastegate opening | Moderate | Replace actuator |
| Sudden boost cut with P0299 code | Charge air leak or stuck VGT vanes | Moderate to High | Pressure test, clean or replace turbo |
| Boost fine cold, drops when hot | Carbon-bound VGT mechanism | High | Rebuild or reman turbo |
| Whistle plus oil in intercooler | Worn cartridge / seal failure | High | Rebuild or replace CHRA |
| Boost surges then falls, black smoke | High backpressure, DPF or EGR fault | Moderate | Service aftertreatment |
Repair Cost: New, Remanufactured, and Rebuild Compared
Once you confirm the turbo itself is at fault, you have three paths. The right one depends on your budget, downtime tolerance, and how long you plan to keep the truck.
| Option | Typical Cost Range | Best For |
|---|---|---|
| New OEM turbo | $$$$ (highest) | Warranty-critical fleets, latest revisions |
| Remanufactured turbo | $$ to $$$ | Best value, balanced and tested to spec |
| Rebuild your core | $ to $$ | Owner-operators keeping the original unit |
| Actuator only | $83.99 to $465.52 | Confirmed control-side failures |
A remanufactured turbo from PT Turbo is fully disassembled, inspected, fitted with new bearings and seals, and balanced. Browse our remanufactured turbochargers or shop all turbos to find your application. If you would rather keep your original core, our
Cross-Reference & Superseded Part Numbers
The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:
008660 • 171025 • 171102 • 173417 • 173419 • 4030094 • 4030227H • 4030574 • 4030715 • 4030720 • 4032304H • 445963-151 • 446131-0011 • 446131-0023 • 446131-0042 • 446131-0046 • 448734-5 • 451764-0003 • 451764-0015 • 451764-0025 • 451764-0039 • 451764-0041 • 452603-0001 • 452603-0002 • 452603-0010 • 452603-0022 • 452603-0031 • 452603-0048 • 452603-0049 • 452603-0051 • 452603-0058 • 452603-0062 • 729592-0006 • 729592-0008 • 740902-0054 • 750685-0017 • 750685-0019 • 750686-0019 • 750686-0020 • 759361-10 • 759361-12 • 761208-0077 • 761208-0083 • 773326-0001 • 800269-5 • 880546-5005S • 880547-5002S • 880547-5031S • 911984-5003S • 914956-0001 • 914956-0002 • 914956-0003 • 914956-0004 • 914959-0001 • 914959-0002 • 914959-0003 • 914959-0004 • 934116-5002S • 934122-5001S • 934124-5002S • 934125-5001S • 953223-5001S • CHRA-GTX2967R • GTX2867R+Bolt-on+Turbo • GTX3071R+Bolt-on+Turbo • PTT-ACS-045 • PTT-ACS-047 • PTT-FIE-006 • PTT-FIE-007 • PTT-FIE-008 • PTT-FIE-009 • PTT-FIE-017 • PTT-FIE-021 • PTT-FIE-022 • PTT-FIE-025 • PTT-FIE-026 • PTT-FLS-098 • PTT-FOC-010 • PTT-FOC-011 • PTT-FOC-012 • PTT-FOC-013 • PTT-FOC-020 • PTT-FOC-030 • PTT-FOC-033 • PTT-FOC-036 • PTT-FOC-050 • PTT-FOC-051 • PTT-FOC-052 • PTT-FOC-056 • PTT-FOC-064 • PTT-FOC-071 • PTT-FOC-076 • PTT-FOC-086 • PTT-FOC-096 • PTT-FOC-B11 • PTT-FOC-B12 • PTT-FOC-B15 • PTT-FOC-B16 • PTT-FOC-B17 • PTT-FOC-B22 • PTT-FOC-B24 • PTT-HGC-004 • PTT-HGC-069 • PTT-HSG-042 • PTT-HSG-316 • PTT-HSG-394 • PTT-HSG-405 • PTT-MS3-003 • PTT-MS3-007 • PTT-MS3-022 • PTT-MS3-023 • PTT-MS3-037 • PTT-MUS-005 • PTT-MUS-010 • PTT-RB2-002 • PTT-SR2-002 • PTT-STC-001 • PTT-SUB-096 • PTT-SUB-100 • PTT-SUB-105 • PTT-TBO-002 • PTT-TBO-023 • PTT-TBO-066 • PTT-TBO-067 • PTT-TBO-107 • PTT-TBO-345 • PTT-TBO-450 • PTT-TBO-592 • PTT-TBO-602 • PTT-TBO-618 • PTT-TBO-620 • PTT-TBO-763 • PTT-TBO-764 • PTT-TBO-770 • PTT-TBO-818 • PTT-TBO-841 • PTT-TBO-846 • PTT-TBO-847 • PTT-TBO-849 • PTT-TBO-889 • PTT-TBO-965 • PTT-TBO-982 • PTT-TBO-B34 • PTT-TBO-B35 • PTT-TBO-C15 • PTT-TBO-C16 • PTT-TBO-F83 • PTT-TBO-F84 • PTT-TBO-J20 • PTT-TBO-J21 • PTT-TBO-J23 • PTT-TBO-J26 • PTT-TBO-J27 • PTT-TBO-J57 • PTT-TBO-M21 • PTT-TBO-N23 • PTT-TBO-N24 • PTT-TBO-R94 • PTT-TBO-R95 • PTT-VEVO-026 • PTT-VEVO-158 • PTT-VEVO-189 • PTT-VEVO-200 • PTT-VSRT-007 • PTT-VVW-004 • PTT-VVW-042 • PTT-VVW-047 • PTT-WGT-011B • PTT-WGT-019 • PTT-WGT-025 • PTT-WGT-032 • PTT-WGT-037 • PTT-WGT-093 • PTT-WGT-103 • PTT-WGT-108 • PTT-WGT-109 • TIL-BOV-007 • TIL-WGT-035 • stock+location+fsi/tsi+option+3
