The P003B Turbocharger VGT Control Circuit Range code is one of the most misdiagnosed trouble codes we see come through the shop, and it costs owner-operators real money when it gets thrown at the wrong parts. This code lands on both Cummins and Ford diesel platforms, and it points to a problem in the variable geometry turbocharger (VGT) actuator control circuit, specifically when the signal falls outside the expected range or performance window. At PT Turbo, we have been rebuilding and diagnosing turbochargers since 1978, and this guide walks you through exactly how to read, test, and fix P003B without throwing parts at it.
What the P003B Code Actually Means
P003B is defined as “Turbocharger/Supercharger Boost Control A Circuit Range/Performance.” The ECM sets this code when it commands the VGT actuator to a certain vane position but the feedback signal does not match the expected value within the calibrated tolerance.
In plain terms, the computer tells the vanes to move, and either they do not move, they move too slowly, or the position sensor reports a value the ECM cannot reconcile. A variable-geometry turbocharger relies on precise vane positioning to control exhaust flow across the entire RPM band, so any lag or mismatch triggers the range/performance fault.
It is important to understand that P003B is a “range” code, not a hard “open” or “short” code. That distinction matters during diagnosis, because it usually means the circuit is intact but the mechanical or electrical response is out of spec.
Common Symptoms of P003B on Cummins and Ford
The symptoms overlap heavily between platforms because the underlying VGT strategy is similar. Here is what drivers and technicians typically report.
- Sluggish acceleration and noticeable loss of low-end torque
- Excessive turbo lag before boost builds
- Reduced engine braking on Cummins ISX and ISB engines
- Active regeneration problems and clogged diesel particulate filter events
- Limp mode or derate that caps power output
- Black smoke under load from incorrect vane position
- Illuminated check engine light with stored P003B
On Ford Power Stroke trucks, this code frequently shows up alongside other boost-related faults. If you are chasing turbo issues on those platforms, our breakdowns of 8 warning signs of 6.0L Power Stroke turbo failure and the 6.4L Power Stroke twin turbo guide cover related symptoms in detail.
Diagnosing P003B Turbocharger VGT Control Circuit Range Step by Step
Do not condemn the actuator or the turbo until you have worked through the circuit methodically. Here is the diagnostic sequence we use in the shop.
Step 1: Verify the Complaint and Pull Freeze Frame Data
Read all stored and pending codes with a capable scan tool. Look at freeze frame data to see what RPM, load, and temperature conditions were present when P003B set. A code that only sets cold points toward a sticking mechanism, while one that sets under load points toward the actuator or wiring.
Step 2: Perform a VGT Actuator Sweep Test

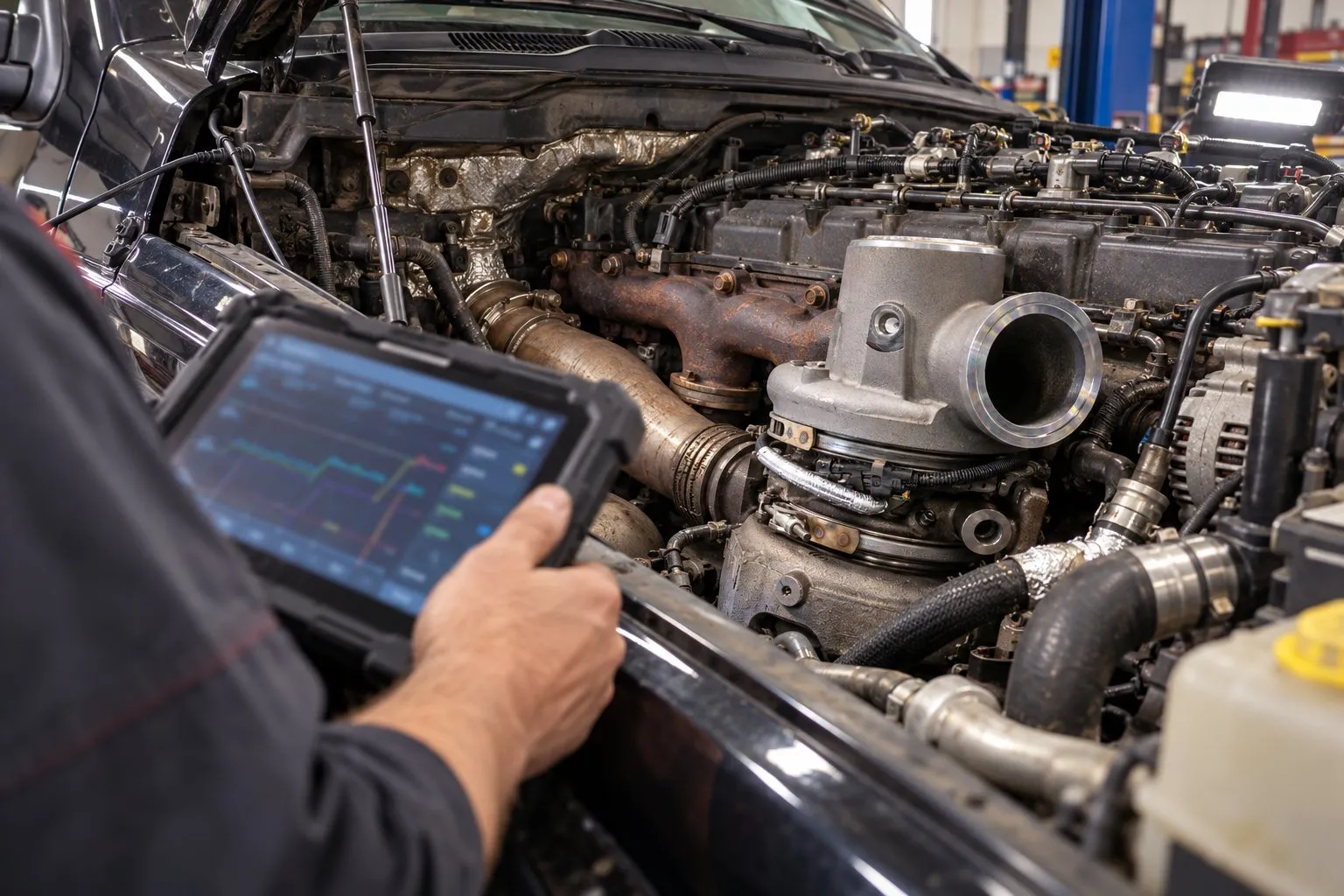

Most Cummins and Ford ECMs support a bidirectional actuator sweep. Command the vanes from fully open to fully closed and watch the commanded versus actual position values. A healthy actuator tracks the command within a few percent and moves smoothly across the full range.
If the actual position lags, sticks at a certain point, or never reaches the commanded value, you have isolated the fault to the actuator or the vane mechanism itself.
Step 3: Check Wiring, Connectors, and Grounds
Inspect the actuator harness for chafing, heat damage, and corroded pins. VGT actuators live in a brutally hot environment right next to the exhaust housing. Back-probe the connector and verify supply voltage, ground integrity, and the position feedback signal against factory specs.
Wiggle-test the harness while monitoring live data. Intermittent range faults are very often a connector or pin problem rather than a failed component.
Step 4: Test the Actuator and Vane Movement Mechanically
With the electrical side confirmed good, focus on the mechanical side. Soot and carbon buildup in the vane pack is the number one cause of sticking vanes on high-mileage diesels. Excessive exhaust gas recirculation soot accelerates this dramatically.

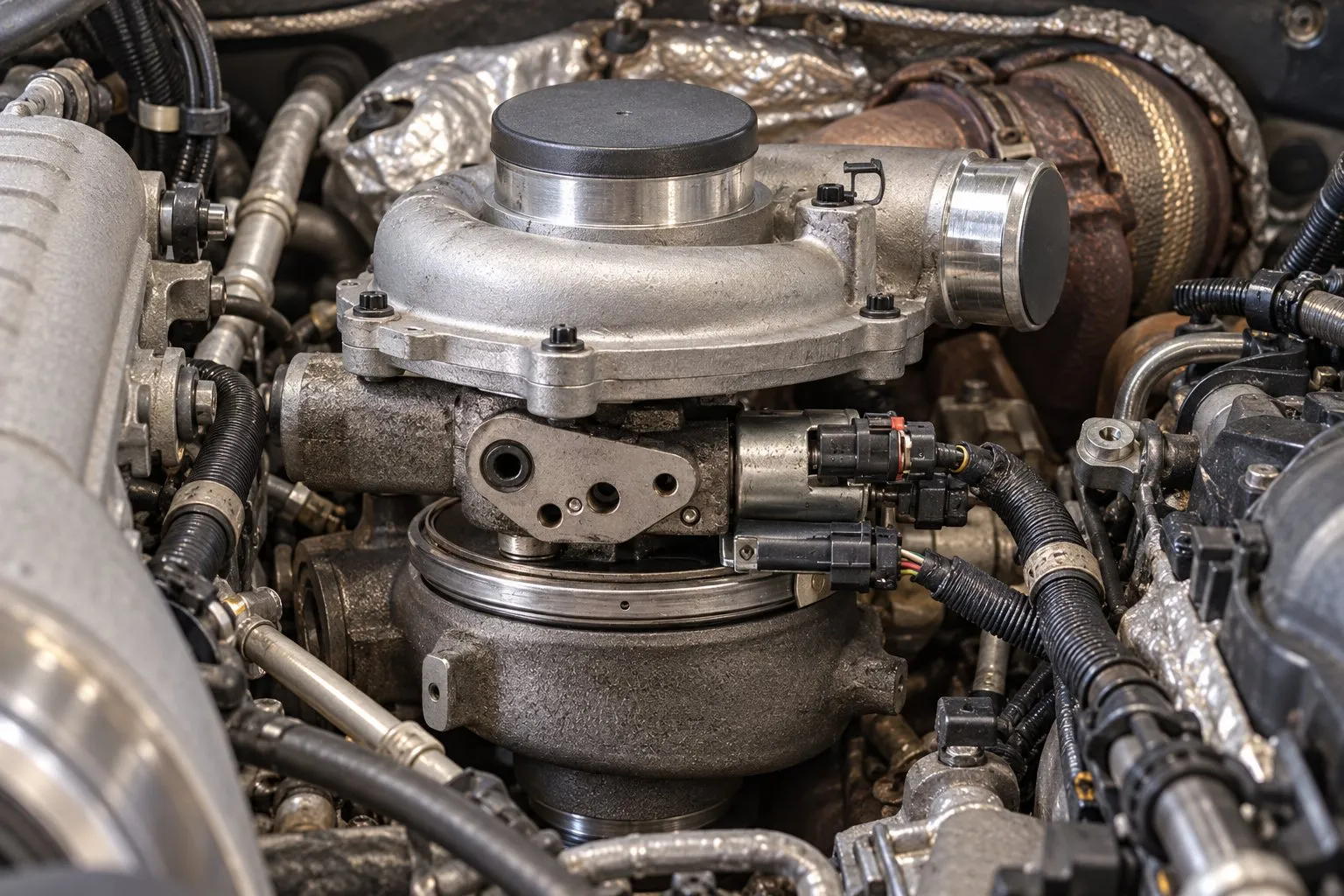

On pneumatic VGT systems, verify the actuator holds vacuum or pressure and responds to the control solenoid. On electric actuators, confirm the internal motor and position sensor respond correctly during the sweep.
Cummins vs Ford: Key Differences in P003B Diagnosis
The code definition is universal, but the hardware and root causes differ between the two platforms. Understanding these differences saves diagnostic time.
| Factor | Cummins (ISX, ISB, 6.7L) | Ford Power Stroke (6.0L, 6.4L, 6.7L) |
|---|---|---|
| VGT actuator type | Electric (Holset VGT / smart actuator) | Electric or pneumatic depending on year |
| Most common root cause | Sticking vanes from soot, actuator calibration loss | Carbon buildup, actuator failure, wiring heat damage |
| Actuator serviceable separately | Yes, often replaceable/recalibratable | Yes on most model years |
| Typical fix | Clean vane pack or replace actuator | Replace actuator or reman turbo |
On the 6.4L Power Stroke twin-turbo setup, remember the code can originate from the high-pressure turbo VGT. Our guide on the difference between high-pressure and low-pressure turbos clears up which unit controls what.
Replacement Actuators and Parts for P003B Repairs
When testing confirms a failed actuator, replacing it with a quality unit is far cheaper than an entire turbo. PT Turbo stocks both new and remanufactured actuators for a wide range of diesel applications. Here are common options we keep on the shelf.
- The Garrett Pneumatic Actuator 757979-5102 is a proven OEM-grade unit, available from PT Turbo for $240.94. View the Garrett 757979-5102 actuator here.
- The Mitsubishi Turbocharger Pneumatic Actuator TD03 49S3118761 fits smaller-displacement applications and is priced at $104.33. View the Mitsubishi TD03 49S3118761 actuator here.
- The Mitsubishi Pneumatic Actuator 4918918935 is a budget-friendly, reliable option at $83.99. View the Mitsubishi 4918918935 actuator here.
- The Garrett Pneumatic Actuator 445963-0040 is a heavier-duty unit for larger turbo applications, priced at $465.52. View the Garrett 445963-0040 actuator here.
Always match the actuator part number to your specific turbo model. A mismatched actuator will not calibrate correctly and can immediately re-trigger P003B. If you are unsure which unit fits, contact our team with your turbo part number and we will confirm the right fit.
When to Replace the Whole Turbocharger
Sometimes the actuator is not the problem. If the vane pack is worn, the bearings have play, or the turbine housing is cracked, cleaning or actuator replacement will not hold. In those cases, a complete replacement is the smart move.
You have two solid paths. New actuators paired with a full turbocharger rebuild service restore your existing core to spec, or you can go with a drop-in remanufactured turbocharger and get back on the road faster.
Here is how the options compare on cost and downtime.
| Option | Relative Cost | Downtime | Best For |
|---|---|---|---|
| Actuator only | Lowest | Same day | Confirmed actuator fault, healthy turbo |
| Rebuild service | Moderate | Few days | Worn core, want to keep original unit |
| Remanufactured turbo | Moderate to high | Fastest turnaround | Failed core, need quick reliable fix |
