14+ G35-1050 In Stock

Garrett G35-1050 Turbochargers

PT Turbo lists 12 complete turbochargers and 2 CHRA cartridges for the Garrett G35-1050, with complete turbos from $2,945 to $3,305. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.

Categories and filters
Shop by
Turbo modelVehicle make
Turbochargers
OEM Replacement Turbos4,806Garrett Performance Turbos803Remanufactured Turbos480Vehicle Specific Kits207PT Turbo Brand30
Turbocharger Parts
CHRA1,606Installation Kits641Actuators & Wastegates418SuperCore / Partial Turbo163Compressor Housings42Gaskets8Rebuild Kits6
Popular makes
FordDodge / RamChevroletGMCFreightlinerKenworthVolvoMackInternationalCaterpillarJohn DeereAll makes
Availability
Order online nowIn stock at the last daily checkOn our shelfShips the same day before 2 PM Pacific
Showing 14 of 14 products
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5009S
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5009S
$2,945.04
In Stock
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880700-5010S
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880700-5010S
$2,945.04
In Stock

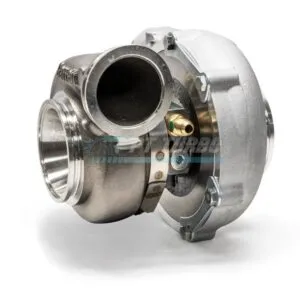

Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5011S
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5011S
$2,945.04
In Stock
Turbocharger, Garrett G35-1050, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5007S
Turbocharger, Garrett G35-1050, REVERSE ROTATION, 0.61 A/R O/V, V-Band In/Out, P/N 880701-5007S
$3,304.55
In Stock

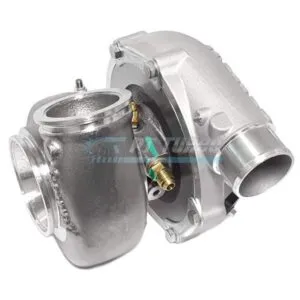

Turbocharger, Garrett G35-1050, REVERSE ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880701-5008S
Turbocharger, Garrett G35-1050, REVERSE ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880701-5008S
$3,304.55
In Stock
Turbocharger, Garrett G35-1050, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880701-5009S
Turbocharger, Garrett G35-1050, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880701-5009S
$3,304.55
In Stock
Turbocharger, Garrett G35-1050, REVERSE ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880701-5010S
Turbocharger, Garrett G35-1050, REVERSE ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880701-5010S
$3,304.55
In Stock

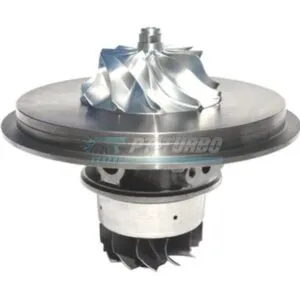

Garrett G-Series G35 CHRA G35-1050-FR (Standard Rotation), P/N: 879673-5002S
Garrett G-Series G35 CHRA G35-1050-FR (Standard Rotation), P/N: 879673-5002S
$2,099.33
In Stock
Garrett G-Series G35 CHRA G35-1050-RR (Reverse Rotation), P/N: 879674-5002S
Garrett G-Series G35 CHRA G35-1050-RR (Reverse Rotation), P/N: 879674-5002S
$2,264.25
In Stock
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
$3,170.32
In Stock
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
$3,170.32
In Stock
Turbo, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5005S
Turbo, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5005S
$3,221.90
In Stock
Turbo, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5006S
Turbo, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5006S
$3,221.90
In Stock
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.06 A/R DIVIDED T4 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.06 A/R DIVIDED T4 INLET W/ 3" VB OUT
$3,170.32
In Stock

What the Garrett G35-1050 is

The G35-1050 is the larger G35 in Garrett’s G-Series, rated at 700 to 1,050 horsepower on engines of 2.0 to 5.5 liters, with a 68 / 84 mm, 65 trim compressor wheel in a 0.75 A/R housing, a 68 / 62 mm, 84 trim Mar-M turbine wheel and a maximum speed of 130,000 rpm. Garrett sells supercores (880695-5002S standard, 880696-5002S reverse) and complete standard-rotation turbos with an internally wastegated V-band housing (880707-5005S, 0.83 A/R; 880707-5006S, 1.01 A/R).

This page lists Garrett’s G35-1050 turbos in standard and reverse rotation with V-band housings from 0.61 to 1.21 A/R, the internally wastegated versions, versions with T3 open-inlet and divided T4 housings, and the CHRAs. Garrett’s own guidance on turbine housings: a smaller A/R gives quicker boost response and more turbine power at low engine speed; a larger A/R lets the wheel flow more, with lower back pressure and more power at high engine speed.

Sources: Garrett G35-1050 catalog page · Garrett: Turbine Housings 101

About the Garrett G35-1050

In the catalog
12 complete turbochargers and 2 CHRA cartridges
Complete turbo price
$2,945 to $3,305
Shop by category
G Series·G35 - Garrett G Series·Garrett Performance Turbos·CHRA
Rather rebuild yours?Turbo Rebuild Service Looking for another turbo?Browse all turbo models

G35-1050 specifications

Wheel sizes are inducer / exducer, taken from the specification published for each part number. The turbine housing sizes are the ones on the listings above; the same turbo is sold with several.

ModelCompressor wheelTurbine wheelCompressor housingTurbine housing A/RListingsFrom
G35-105068 / 84 mm, 65 trim68 / 62 mm, 84 trim0.72 A/R0.61, 0.83, 1.01, 1.06, 1.2114$2,945

On G Series turbos the number after the dash is Garrett's horsepower rating: a G30-660 is rated for up to 660 hp.
