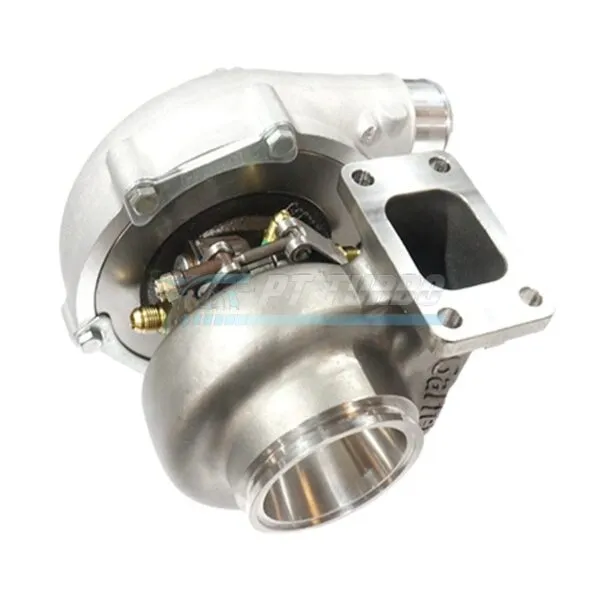

Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT

Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3″ VB OUT

$3,170.32

Garrett G35-1050: up to 1050 hp with 68mm compressor inducer, 0.72 A/R compressor housing, and 0.83 A/R undivided T3 turbine housing. Features 84 trim turbine wheel, oil-restrictor feed, and 3″ V-band outlet.

Specifications

  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch
  • Compressor Housing Outlet: 2.5 inch
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 0.83 (Undivided)
  • Turbine Housing Inlet: T3 Open (undivided) inlet (same flange size and placement as GTX)
  • Turbine Housing Outlet: 3.55 inch (90mm) O.D. with 81mm centering ring V-Band
  • Rotation: Standard Rotation
  • HP Capacity: Up to 1050 hp
  • Model: G35-1050
Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Turbocharger, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R UNDIVIDED, OPEN T3 INLET W/ 3″ VB OUT”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G35-1050

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
