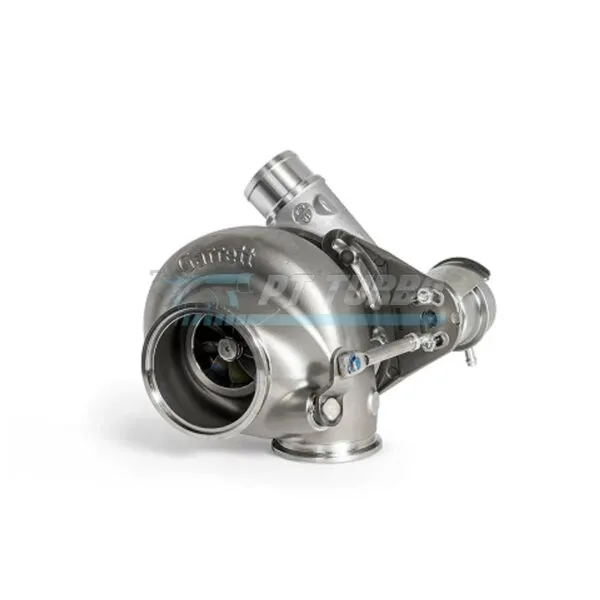

Turbo, Garrett G35-1050, STANDARD ROTATION, 1.01 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5006S

Specifications

• Compressor Wheel Inducer: 68mm
• Compressor Wheel Exducer: 84mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 Inch
• Compressor Housing Outlet: 2.5 Inch
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: 1.01
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 Inch O.D. V-Band
• Wastegate Configuration: Internal
• Rotation: Standard
• Bearing System: Ball Bearing
• Garrett P/N: 880707-5006S

What’s Included

• Oil Feed (1mm) Restrictor Fitting to -4AN
• Two Coolant Fittings to -6AN
