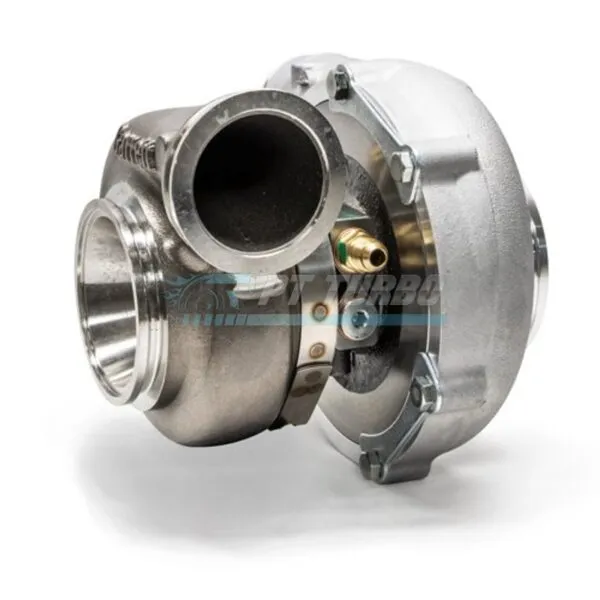

Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5011S
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5011S
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5011S
Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5011S

Turbocharger, Garrett G35-1050, STANDARD ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880700-5011S

$2,945.04

Garrett G35-1050 (P/N 880700-5011S) with 68mm compressor inducer, 0.72 A/R housing, and 84 trim turbine wheel. Standard rotation, V-Band in/out configuration with included oil feed restrictor and coolant fittings.

Specifications

  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Overall A/R (O/V): 1.21
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Rotation: Standard
  • Garrett P/N: 880700-5011S

What’s Included

  • Oil Feed (1mm) Restrictor Fitting to -4AN
  • Two Coolant Fittings to -6AN
  • Turbine Housing Inlet & Outlet V-Band Clamps
Weight 20 lbs
Turbo Model
