Semi Truck Turbocharger Replacement Cost: Cummins ISX, DD15 & PACCAR MX-13

Understanding the Semi Truck Turbocharger Replacement Cost for a Cummins ISX, Detroit DD15, or PACCAR MX-13 is the difference between a smart repair and a blown maintenance budget. These three engines power the majority of Class 8 trucks on North American roads, and when the turbo goes, downtime costs more than the part itself. This guide breaks down real pricing, failure symptoms, and the parts that actually matter.

At PT Turbo, we have been rebuilding and supplying heavy-duty turbochargers since 1978. More than 45 years in the business has taught us one thing: most turbo replacements cost more than they should because fleets reach for a brand-new OEM unit when a quality remanufactured turbo or a simple actuator swap would have done the job.

What Drives the Semi Truck Turbocharger Replacement Cost

The price of a turbo job is never just the turbocharger. You are paying for the unit, the labor, the gaskets and hardware, and often the diagnostic time that led you there. On a Class 8 diesel, all four add up fast.

The biggest variable is whether you need a complete turbocharger or just a failed component. Modern variable-geometry turbos (VGTs) on these engines fail at the actuator and the vane mechanism far more often than the center cartridge. Replacing a $200 actuator instead of a $2,500 turbo is the single best way to control cost.

Here is how the three major engine platforms compare on typical replacement cost, covering parts and labor at a reputable independent shop.

Engine	Turbo Type	New OEM Turbo	Remanufactured Turbo	Labor (shop)
Cummins ISX15	Holset VGT (HE400VG / HE500VG)	$2,400 – $3,600	$1,100 – $1,900	$500 – $900
Detroit DD15	Garrett / BorgWarner VGT	$2,600 – $4,200	$1,300 – $2,200	$600 – $1,000
PACCAR MX-13	Variable-geometry (single or series)	$2,800 – $4,500	$1,400 – $2,300	$600 – $1,100

Note that the DD15 and MX-13 run higher because some model years use a two-stage or series turbo arrangement, which doubles the hardware. Always confirm your engine’s EPA year before pricing a unit.

Cummins ISX / ISX15 Turbocharger Costs

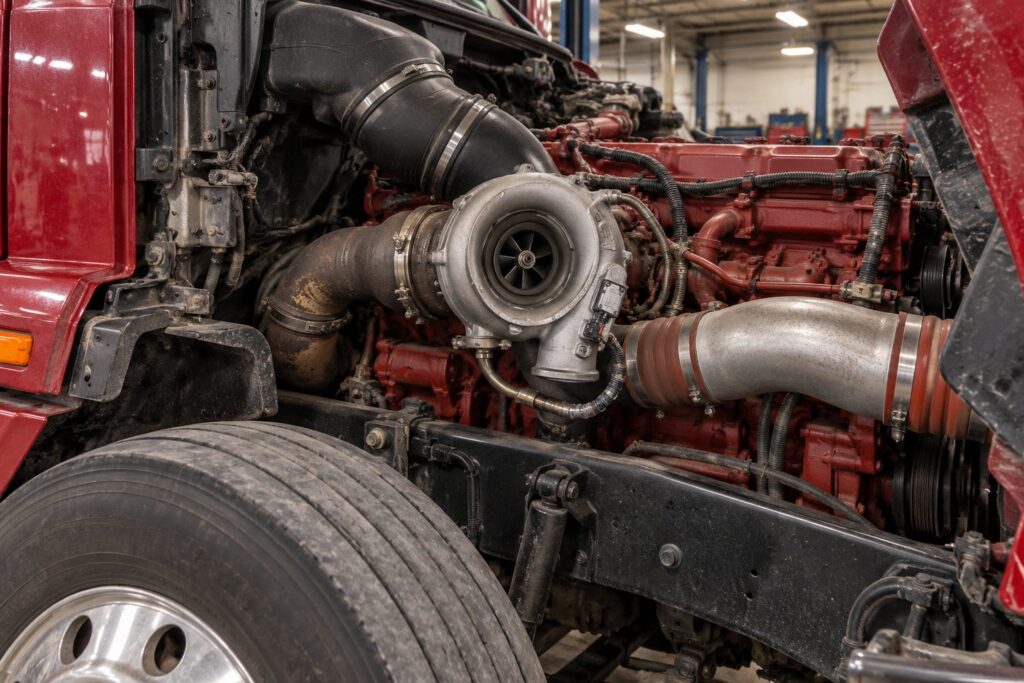

The Cummins ISX15 uses a Holset VGT, and the most common failure is not the turbine wheel. It is the sliding nozzle ring sticking from soot buildup and the actuator losing calibration. When a driver reports sluggish acceleration and a check-engine light with a VGT position fault, the vanes are usually the culprit.

A new Holset turbo for the ISX runs $2,400 to $3,600 depending on the exact part number and emissions configuration. A quality remanufactured Holset from PT Turbo typically lands between $1,100 and $1,900 and carries the same balancing tolerances as new.

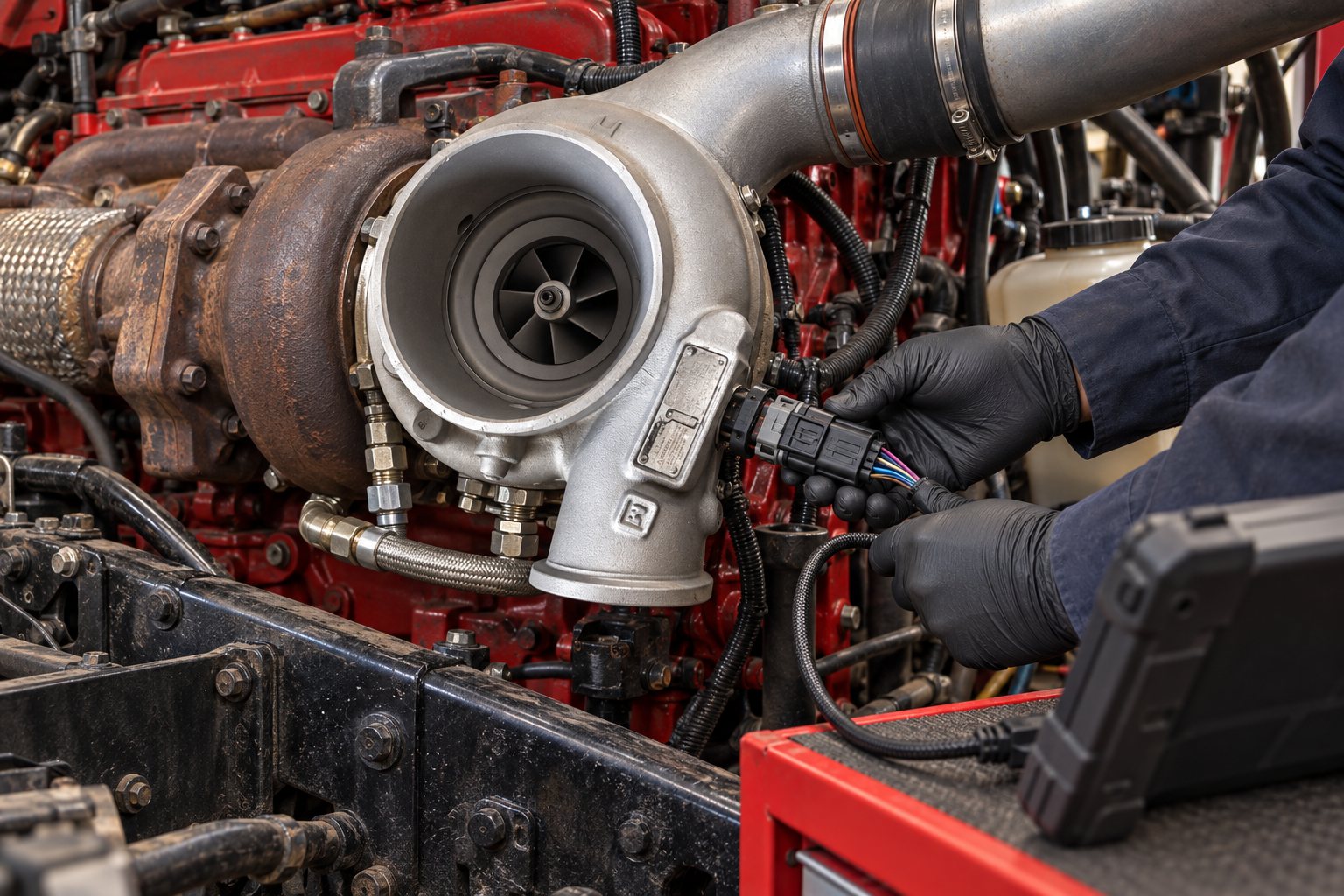

Before you condemn the whole turbo, test the actuator. Many ISX trucks come in with an electronic or pneumatic actuator fault that mimics a dead turbo. Our turbocharger rebuild service can recalibrate or replace the actuator and clean the vane mechanism for a fraction of a full replacement.

Detroit DD15 Turbocharger Costs

The DD15 is the premium engine of this group, and its turbo pricing reflects that. Depending on the model year, you may have a single asymmetric turbo or a two-stage setup on the earlier DD15 and DD16 platforms. The asymmetric design routes exhaust to the EGR circuit, so any turbo problem can ripple into EGR and emissions faults.

A new Detroit-branded turbo runs $2,600 to $4,200. Remanufactured units bring that down to $1,300 to $2,200, which is where most owner-operators land when the truck is out of warranty. Garrett supplies many of these cores, and you can review their engineering at garrettmotion.com.

DD15 turbos are sensitive to oil quality and drain-back. A coked oil feed line is the number one killer of these units. If you replace a DD15 turbo without flushing the oil supply and return lines, expect the new one to fail early.

Watch the Actuator on DD15 and Garrett VGTs

Many Garrett VGTs on medium and heavy-duty diesels use a pneumatic actuator that controls vane position via boost pressure. These fail from diaphragm wear and corrosion. The Garrett Pneumatic Actuator 757979-5102 is a direct-fit replacement for several of these applications, available from PT Turbo for $240.94 – view the Garrett Pneumatic Actuator 757979-5102 here.

For higher-output Garrett applications that run a larger actuator, the Garrett Pneumatic Actuator 445963-0040 covers the heavier spring-rate units at $465.52 – view the Garrett 445963-0040 actuator here. Matching the correct actuator calibration to your turbo is critical, so verify the part number stamped on your old unit before ordering.

PACCAR MX-13 Turbocharger Costs

The PACCAR MX-13, found in Kenworth and Peterbilt trucks, uses a variable-geometry turbo that is among the pricier units to replace new. Expect $2,800 to $4,500 for a factory unit, with reman options from $1,400 to $2,300.

The MX-13 is known for soot accumulation in the VGT vanes, especially on trucks that idle heavily or run short-haul duty cycles that never get the DPF hot enough for a clean regen. Sticking vanes throw boost-deviation codes long before the turbo physically fails.

Some PACCAR and related Daimler-family applications use Mitsubishi TD-series turbos, particularly on auxiliary and smaller displacement setups. The Mitsubishi Turbocharger Pneumatic Actuator TD03 49S3118761 is a cost-effective fix for these at $104.33 – view the Mitsubishi TD03 actuator here. For other Mitsubishi pneumatic applications, the Mitsubishi Pneumatic Actuator 4918918935 covers additional fitments at just $83.99 – view the Mitsubishi 4918918935 actuator here.

If you are unsure which actuator or turbo matches your MX-13 configuration, contact PT Turbo with your engine serial number and we will cross-reference the correct part.

Turbo Failure Symptoms by Severity

Catching a turbo problem early can turn a $2,500 replacement into a $200 actuator repair. Here is how symptoms progress across all three engines.

Severity	Symptoms	Likely Cause	Typical Fix
Early	Sluggish throttle, minor boost-deviation code	Sticking VGT vanes, actuator drift	Clean vanes, recalibrate or replace actuator
Moderate	Black smoke, loss of power under load, active fault code	Stuck actuator, carboned nozzle ring	Actuator replacement, rebuild service
Severe	Whining or grinding, blue smoke, oil in charge pipe	Worn bearings, shaft play, seal failure	Full turbo replacement or rebuild

Shaft play you can feel by hand, oil pooling in the intercooler piping, or a high-pitched whine all point to internal bearing damage. At that stage the cartridge needs replacement. For a deeper look at how VGTs operate, the variable-geometry turbocharger overview is a solid technical reference.

New vs Remanufactured: Lowering Your Semi Truck Turbocharger Replacement Cost

A properly remanufactured turbo is not a used part. It is torn down to the core, inspected, fitted with new bearings, seals, and wheels as needed, then balanced to OEM spec. For out-of-warranty trucks, reman is the smart money.

Buying new makes sense only when the truck is under warranty, the engine has a known reman-core shortage, or you are running a spec that demands factory documentation. Otherwise, a reman unit saves 40 to 50 percent with no meaningful loss in service life.

PT Turbo stocks both new and remanufactured turbochargers for all three of these platforms. If your core is still good, our rebuild service often returns your own unit for less than the cost of an exchange. You can also shop all turbos to compare options.

If you also run light-duty diesels in your fleet, our platform-specific guides cover those costs in detail, including the Ford 6.7L Powerstroke turbocharger guide and the Ram 6.7L Cummins turbocharger guide.

How to Avoid Repeat Turbo Failures

A new turbo on a neglected engine will fail again. Every turbo replacement should include a few non-negotiable steps.

• Flush or replace the oil feed and drain lines to clear coked oil.
• Change oil and filter with the correct spec before first start.
• Inspect the air filter and charge-air cooler for debris that could ingest into the new wheel.
• Verify EGR cooler and valve function, since excess exhaust recirculation accelerates vane fouling.
• Prime the turbo with oil at the feed port before cranking to prevent a dry start.

Skipping the oil-line flush is the most common mistake we see. The fundamentals of how a turbocharger relies on clean, pressurized oil explain why that one step protects your investment.

Frequently Asked Questions

How long does a semi truck turbocharger last?

A well-maintained turbo on a Cummins ISX, DD15, or MX-13 typically lasts 350,000 to 500,000 miles. VGT units can fall short of that if soot-laden vanes are never cleaned or if oil changes are stretched. Clean oil and healthy EGR function are the biggest factors in longevity.

Can I just replace the actuator instead of the whole turbo?

Yes, in many cases. If the center cartridge spins freely with no shaft play and the fault codes point to vane position or actuator drift, a new actuator and a vane cleaning will restore full function. Actuators like the Garrett and Mitsubishi units we stock cost a fraction of a complete turbo and solve a large share of VGT faults.

Is a remanufactured turbo reliable for a Class 8 truck?

Absolutely, when it is rebuilt to OEM balancing and tolerance specs. A quality reman uses new bearings, seals, and wheels where needed, then is balanced on the same equipment as a new unit. With over 45 years in the business, PT Turbo backs its remanufactured turbos for heavy-duty, high-mileage service.

Cross-Reference & Superseded Part Numbers

The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:

3591890  •  3592773  •  3598273  •  3598483  •  4030045  •  4030227H  •  4030269  •  4030273  •  4030715  •  4030720  •  4030736  •  4030747  •  4030757  •  4030763  •  4030767  •  4030780  •  4030782  •  4030784  •  4030786  •  4030793  •  4030831  •  4030835  •  4030845  •  4030847H  •  4030858  •  4030861  •  4030870  •  4030877H  •  4030892  •  4030894H  •  4030914  •  4030915  •  4030916  •  4030918H  •  4030923  •  4030926H  •  4030930  •  4030935  •  4030945  •  4030963  •  4030967  •  4031254H  •  4031315  •  4031327  •  4031381  •  4031435  •  4031461  •  4031488  •  4032006  •  4032029  •  4032046  •  4032219  •  4032238H  •  4032259  •  4032262  •  4032265  •  4032277  •  4032284  •  4032292  •  4032294H  •  4032304H  •  4032305  •  4032306  •  4032664  •  4032706  •  4032721  •  4032739  •  4032769  •  4032869H  •  4032975  •  4034013  •  4034055H  •  4034144H  •  4034145H  •  4034150H  •  4034256H  •  4034294H  •  4034320H  •  4034322H  •  4034356H  •  4034384H  •  4034387H  •  4034464H  •  4034499  •  4035465  •  4036553  •  4037504  •  4038545  •  4038889  •  4040391  •  4042573  •  4043168  •  4043564  •  4044633  •  4044721  •  4044722  •  4044830  •  4047073H  •  5459711RX-RMN  •  5503312H  •  6454763H  •  H45-RBL-KIT-FLL  •  PTT-TBO-N82  •  PTT-TBO-N85  •  X15-RBL-KIT-FLL

Can’t find your number above? Contact PT Turbo — our team has been matching part numbers since 1978.
