Holset HX55 Turbochargers
PT Turbo lists 48 complete turbochargers, 19 CHRA cartridges and 1 installation kit for the Holset HX55, with complete turbos from $849 to $6,167. Most fit Cummins engines, with others for Iveco, Volvo, Mack and Cursor. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Holset HX55 is

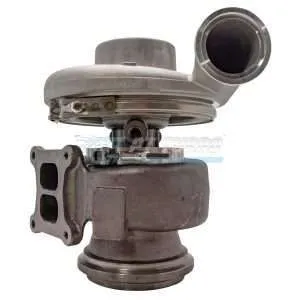

The HX55 belongs to Holset’s HX range, which Holset began building in 1987 to replace its H Series; Cummins names the HX55 as the turbo on its M11 engine. The plain HX55 numbers are fixed-geometry turbos without a wastegate actuator (the wastegated version is the HX55W): Holset distributors list 4033813H for Cummins M11 and ISM highway trucks, 4033050H for the Iveco Cursor 13 in Case IH Steiger and STX and New Holland T9000-series tractors, and 4031121H for the Scania DC11.
This page lists complete HX55 turbos, CHRAs and an installation kit for Cummins, Iveco, Volvo, Mack and other engines, each under its own part number; match the full number on your turbo’s tag.
Sources: Cummins M11 · Holset engineering milestones · HX55 for M11/ISM (parts distributor) · HX55 for Cursor 13 tractors (parts distributor)
About the Holset HX55
- In the catalog
- 48 complete turbochargers, 19 CHRA cartridges and 1 installation kit
- Engine makes (listings)
- Cummins 36·Iveco 13·Volvo 13·Mack 12·Cursor 8·Scania 8
- Engine models listed
- Cursor 13, MD13, Cursor 10, D12, DD15, ISX1, M11, D12C, DC12, DC12 59
- Complete turbo price
- $849 to $6,167
- Related models
- HX55W·HX55WM·HX55M
- Shop by category
- Holset Turbos·Cummins Turbos·CHRA·Iveco Turbos
Where the Holset HX55 fits
Engines, years and machines as the Applications tables of the complete turbochargers on this page list them, with the part numbers that fit. Match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
| Engine | Years | Used in | Part numbers |
|---|---|---|---|
| Iveco Cursor 13 | — | — | 4033622H, 3786653H, 3786648H |
| Cummins ISX1 | — | — | 57869902103, 4036902H |
| Cummins M11 | — | — | 4040345H, 3593607H |

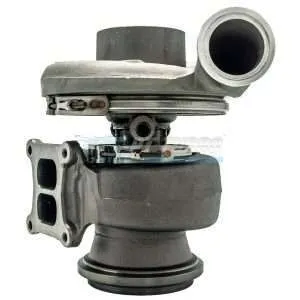

| Cummins ISM | — | — | 4038847H |
| Cummins M11 305-450HP | 1996 | International | 4033813H |

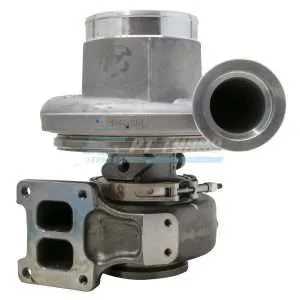

| Detroit Diesel DD13 12.8L | 2014–2016 | Western Star 4700SF Truck (Class 3-8) | 4034194H |
| Detroit Diesel DD15 14.8L | 2009–2016 | Freightliner 122SD Truck (Class 3-8), Freightliner Century Truck (Class 3-8), Freightliner Columbia Truck (Class 3-8) +1 more | 4034194H |
| Detroit Diesel DD15 14.8L 472901, 472903, 472909 | 2009–2016 | Freightliner Cascadia Truck (Class 3-8) | 4034194H |
| Detroit Diesel DD15 14.8L Up to 472909 | 2009–2016 | Western Star 4900EX Truck (Class 3-8), Western Star 4900FA Truck (Class 3-8) | 4034194H |
| Iveco Cursor 10 | — | — | 4033639H |
| Iveco Cursor 10 | — | Generator | 4033363H |
| Iveco Cursor 13 | — | Generator | 4033050H |
| Iveco Cursor 8 492HP | — | Emergency Vehicle | 4033723H |
| Iveco Cursor 9 350-360HP | — | Harvester | 4033185H |
| Mercedes-Benz OM501LA | — | Truck (Class 3-8) | 4031064H |
| Renault MIDR 063540L | — | Renault | 3580288H |
| Renault MIDR 063541 | — | — | 3580288H |
| Scania DC12 | — | Coach/Transit Bus, Truck (Class 3-8) | 4031122H |

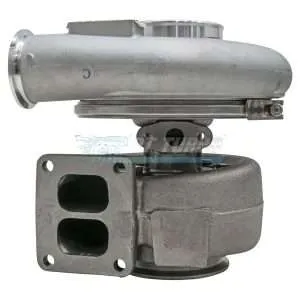

| Scania DC12 59 | — | Generator | 4031127H |
| Scania DC12 60 | — | Generator | 4031127H |
