The Holset HX35W Turbocharger has earned a reputation as one of the most reliable factory chargers ever bolted to a diesel engine, and the wastegate version fitted to the 5.9L Cummins is the exact reason so many trucks are still running strong past 400,000 miles. If you own a 1994 to 2002 Dodge Ram with the 12-valve or 24-valve Cummins, this is the turbo you’re working with, and understanding how the wastegate variant behaves will save you money and downtime.
At PT Turbo, we’ve been rebuilding Holset units since the HX35W first showed up in trucks. With 45+ years in the turbocharger business, we stock both new and remanufactured Holset cores, and we know exactly where these units fail and why. Here’s the full breakdown.
What Makes the HX35W Wastegate Version Different
The base HX35 came in both non-wastegated and wastegated configurations. The “W” in HX35W simply denotes the wastegate housing, and that distinction matters a lot for how the turbo drives and spools.
The wastegate is an internal valve built into the turbine housing that bleeds off excess exhaust gas once boost hits a target pressure. This keeps peak boost in check, protects the head gasket, and lets Cummins run a smaller, quicker-spooling A/R turbine housing without overspeeding the compressor at high RPM.
On the 1994 to 1998 12-valve trucks, the HX35W ran a 12cm² wastegated turbine housing. The 1999 to 2002 24-valve trucks used a similar setup with minor changes to the compressor wheel and actuator calibration. The wastegate actuator typically opens around 20 to 24 psi depending on year and application.
Core Specs of the Holset HX35W Turbocharger
- Compressor wheel: 54mm inducer / 76mm exducer
- Turbine wheel: 65mm / 60mm depending on year
- Turbine housing: 12cm² wastegated (most common)
- Wastegate actuation: pneumatic, boost-referenced, roughly 20 to 24 psi crack pressure
- Supported power: reliable to around 450 to 500 rear-wheel horsepower
- Common Holset part numbers: 3592766, 3802290, 3535635, 3538415
That compressor is efficient in a usable street range, which is why the HX35W remains a favorite for mild-to-moderate builds. Push much past 500 horsepower and you’ll run out of compressor before you run out of ideas. For a wider look at the Cummins turbo family, our Ram 2500/3500 5.9L Cummins turbocharger guide covers the HX35, HY35, and HE341VE side by side.
How the Wastegate Actuator Works and Why It Fails

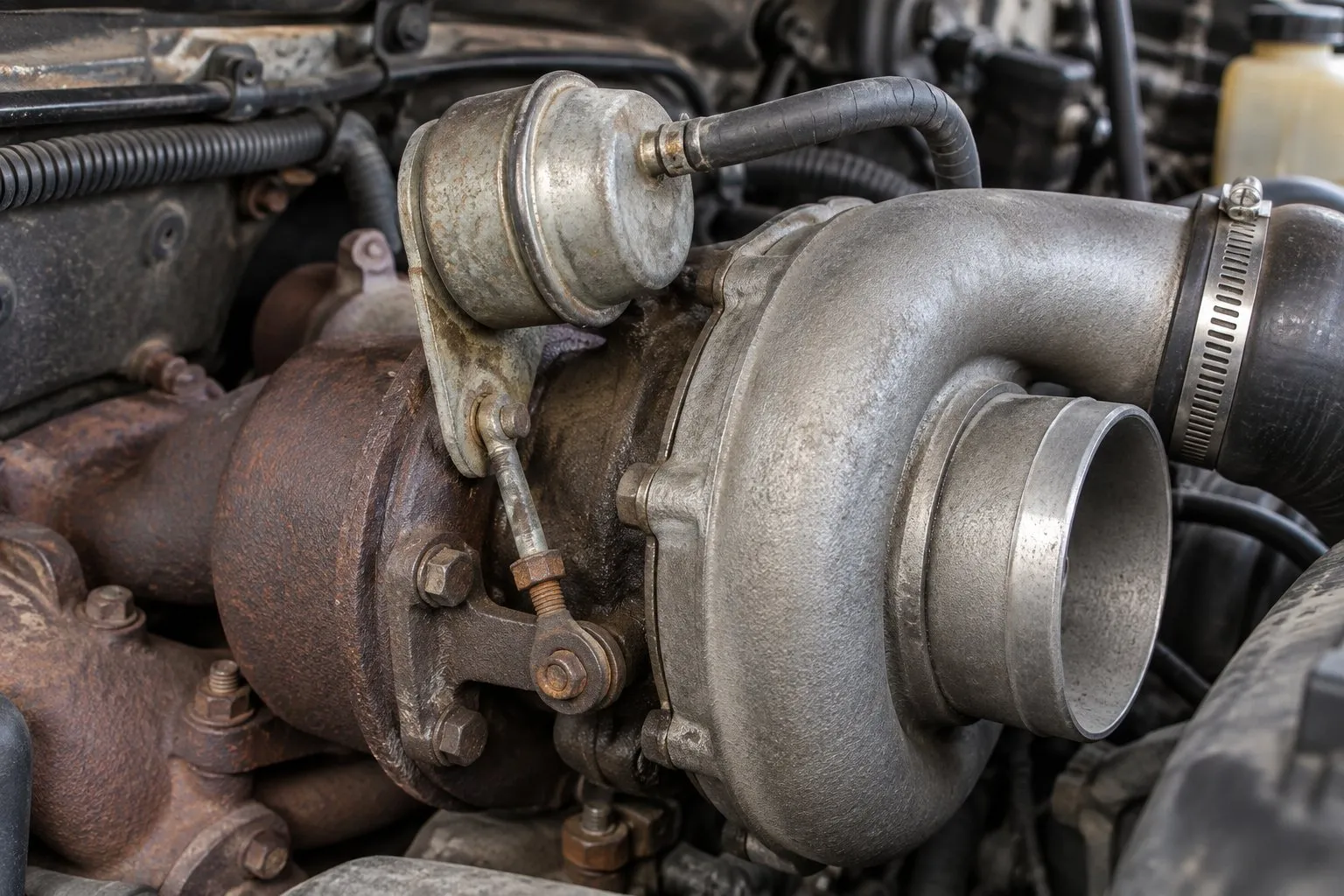

The wastegate on the HX35W is controlled by a spring-loaded pneumatic actuator (also called a canister) mounted to the compressor housing. A boost line feeds pressure to the diaphragm. When boost exceeds the spring’s preset value, the diaphragm pushes the rod, which cracks the wastegate flap open.
When that actuator fails, it fails in predictable ways. The diaphragm ruptures, the spring weakens, or the rod seizes from rust and carbon. Any one of these throws your boost control out of spec.
Symptoms of a Failing Wastegate Actuator
| Symptom | Likely Cause | Severity |
|---|---|---|
| Overboost / boost spikes above 28 psi | Seized wastegate flap, stuck-closed actuator | High: head gasket risk |
| Low boost / lazy spool | Ruptured diaphragm, weak spring, cracked boost line | Medium: power loss |
| Boost creep at high RPM | Wastegate not opening fully | Medium |
| Rattling near compressor housing | Loose actuator rod or worn linkage | Low to medium |
| Whistling from wastegate port | Flap not seating, leaking gate | Low |
Overboost is the dangerous one. A stuck wastegate on a Cummins will happily push 35+ psi and lift the head gasket, especially on the notoriously weak factory 24-valve gasket and its 11mm head bolts. If you see boost climbing past where it used to cap out, stop and diagnose before you lunch the engine.
Replacing the Actuator vs Replacing the Turbo
Here’s where a lot of owners overspend. If the cartridge (CHRA) is healthy with no shaft play and no oil in the intake, and only the wastegate actuator has failed, you often don’t need a whole new turbo. You need a properly calibrated actuator.
A quality pneumatic actuator restores correct boost control at a fraction of the cost of a replacement charger. We stock several pneumatic actuators that cover Holset and related applications.
- Garrett Pneumatic Actuator 757979-5102, available from PT Turbo for $240.94, view the Garrett 757979-5102 actuator here.
- Mitsubishi TD03 Pneumatic Actuator 49S3118761, available for $104.33, view the Mitsubishi TD03 49S3118761 actuator here.
- Mitsubishi Pneumatic Actuator 4918918935, available for $83.99, view the Mitsubishi 4918918935 actuator here.
- Garrett Pneumatic Actuator 445963-0040, available for $465.52, view the Garrett 445963-0040 actuator here.
Not sure which actuator matches your setup or crack pressure? That’s exactly what we’re here for. Contact PT Turbo with your turbo part number and we’ll match the correct unit and spring rate.
When You Should Replace the Whole Turbo
If you’ve got excessive shaft play (more than a few thousandths of radial movement), oil in the intercooler piping, a scored compressor wheel, or a cracked turbine housing, the actuator is not your problem. At that point a rebuild or replacement is the smart money.
Our turbocharger rebuild service restores your original HX35W core with new bearings, seals, and a balanced rotating assembly. If you’d rather do a straight swap, we carry remanufactured turbochargers built to OEM spec, or you can shop all turbos to see what’s in stock.
New vs Remanufactured HX35W: Cost and Value
The HX35W responds extremely well to remanufacturing because the Holset design uses a robust journal bearing system and simple, serviceable internals. A properly reman’d unit performs identically to new for most operators.
| Option | Typical Price Range | Best For |
|---|---|---|
| New OEM Holset HX35W | $900 to $1,400 | Warranty-focused fleet trucks |
| Remanufactured HX35W | $450 to $750 | Best value for daily drivers and work trucks |
| Rebuild your existing core | $350 to $600 | Owners keeping matched-numbers or a good housing |
| Actuator only | $84 to $466 | Healthy CHRA, failed wastegate control only |
The math is straightforward. If your core is good, a reman or a fresh actuator saves hundreds. If your core is finished, don’t throw good parts at it. Diagnose first, then buy once.
HX35W vs Later Cummins Turbos
The HX35W is a fixed-geometry wastegated turbo. Later 5.9L and 6.7L trucks moved to variable-geometry designs like the HE351VE and HE300VG, which use moving vanes instead of a wastegate to control boost and drive exhaust braking.
Those variable-geometry units spool faster and improve emissions performance, but they add electronic complexity the HX35W simply doesn’t have. That simplicity is why the HX35W is bulletproof and so popular for swaps and builds.
If you’re comparing generations, our 6.7L Cummins turbocharger guide and our dedicated HE351VE vs HE300VG comparison break down the newer VGT platforms in detail. Driving a Ford instead? See our 7.3L Powerstroke turbocharger guide.
Installation and Break-In Tips
When you install a fresh or reman HX35W, get the basics right so you don’t kill it in the first week.

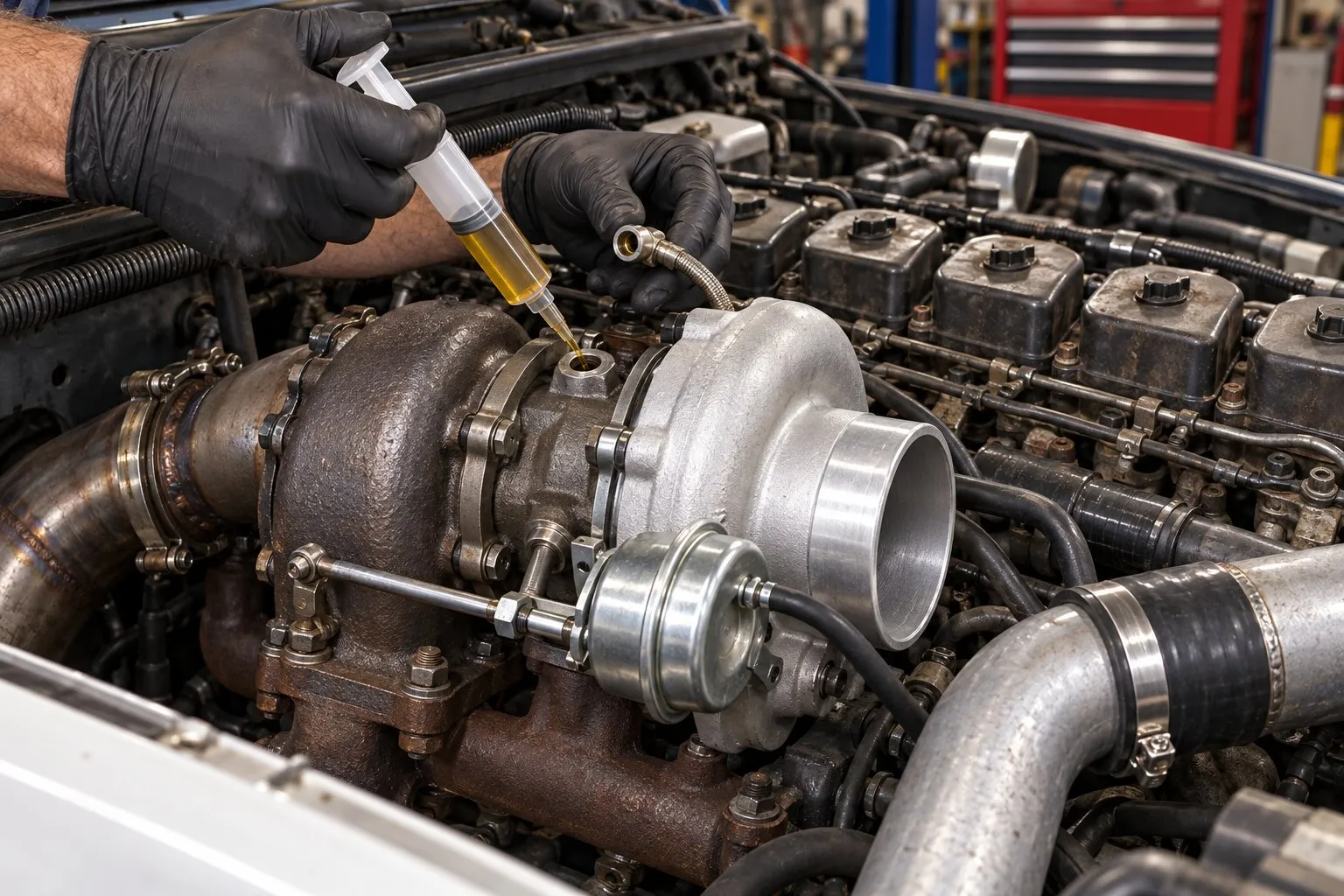

- Prime the oil feed. Crank with the fuel shut off or pre-fill the bearing housing so the shaft isn’t running dry on startup.
- Use a new oil feed and drain gasket. A restricted or leaking drain is the fastest way to blow a seal.
- Flush your oil
Cross-Reference & Superseded Part Numbers
The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:
3537815H • 3537817H • 3591890 • 3592773 • 3598273 • 3598483 • 4027212H • 4027376H • 4027420H • 4027436H • 4027519H • 4027840H • 4030045 • 4030227H • 4030269 • 4030273 • 4030715 • 4030720 • 4030736 • 4030747 • 4030757 • 4030763 • 4030767 • 4030780 • 4030782 • 4030784 • 4030786 • 4030793 • 4030831 • 4030835 • 4030845 • 4030847H • 4030858 • 4030861 • 4030868H • 4030870 • 4030877H • 4030892 • 4030894H • 4030914 • 4030915 • 4030916 • 4030918H • 4030923 • 4030926H • 4030930 • 4030935 • 4030945 • 4030963 • 4030967 • 4031254H • 4031315 • 4031327 • 4031381 • 4031435 • 4031461 • 4031488 • 4031539H • 4031590H • 4032006 • 4032029 • 4032046 • 4032219 • 4032238H • 4032259 • 4032262 • 4032265 • 4032277 • 4032284 • 4032292 • 4032294H • 4032304H • 4032305 • 4032306 • 4032409H • 4032472H • 4032494H • 4032569H • 4032574H • 4032594H • 4032633H • 4032664 • 4032695H • 4032706 • 4032721 • 4032739 • 4032769 • 4032869H • 4032975 • 4033085H • 4033086H • 4033087H • 4033089H • 4033102H • 4033143H • 4033152H • 4033153H • 4033162H • 4033170H • 4033174H • 4033178H • 4033204H • 4033246H • 4033282H • 4033284H • 4033295H • 4033312H • 4033314H • 4033316H • 4033336H • 4033362H • 4033368H • 4033378H • 4033381H • 4033384H • 4033386H • 4033398H • 4033407H • 4033413H • 4033418H • 4033590H • 4033602H • 4033660H • 4033661H • 4033671H • 4033672H • 4033681H • 4033682H • 4033732H • 4033786H • 4033789H • 4033790H • 4033861H • 4033874H • 4033903H • 4033943H • 4033982H • 4033985H • 4033987H • 4033988H • 4033989H • 4033990H • 4033991H • 4034013 • 4034055H • 4034144H • 4034145H • 4034150H • 4034166H • 4034256H • 4034294H • 4034320H • 4034322H • 4034356H • 4034384H • 4034387H • 4034464H • 4034499 • 4035024H • 4035376H • 4035465 • 4036106H • 4036553 • 4037504 • 4038211H • 4038478H • 4038545 • 4038889 • 4039044H • 4039331H • 4039674H • 4039964H • 4039967H • 4040391 • 4042573 • 4042708H • 4042810H • 4043148H • 4043168 • 4043248H • 4043271H • 4043564 • 4043957H • 4044095H • 4044099H • 4044104H • 4044633 • 4044721 • 4044722 • 4044830 • 4044890H • 4045173H • 4045396H • 4045700H • 4047073H • 5451476H • 5503312H • 5601134H • 6454763H
Can’t find your number above? Contact PT Turbo — our team has been matching part numbers since 1978.
