BorgWarner S200 Turbocharger: CAT C7, John Deere & Agricultural Applications

The BorgWarner S200 Turbocharger is one of the most widely fitted fixed-geometry diesel turbos in the medium-duty and off-highway world, turning up on Caterpillar 3116, 3126 and C7 engines, John Deere PowerTech blocks, Deutz, and Volvo Penta marine applications. If you run a truck, a tractor, a wheel loader or a generator set built around a mid-range diesel, there is a good chance an S200-frame unit is bolted to the manifold. This guide covers what the frame is, which engines carry it, how it fails, and how to order the correct one without guessing.

PT Turbo has been rebuilding turbochargers since 1978, more than 45 years, and we stock both new and remanufactured units along with the cores to rebuild yours in-house. The one rule that never changes with the S200 family: go by the part number on the turbo’s tag, not the engine name on the valve cover.

What the BorgWarner S200 Turbocharger Is

The S200 is a frame size in BorgWarner’s AirWerks S-series lineup. In that naming scheme the “2” marks the frame; the compressor and turbine wheel sizes vary within the frame by application. The BorgWarner S200 turbochargers we see are fixed-geometry units, with or without a wastegate depending on the engine and emissions rating.

Across the AirWerks S200 line, BorgWarner lists compressor inducers from roughly 46 to 57 mm, covering engines in the 220 to 650 hp range, with a 70 mm turbine wheel on the frame. That is the span you are working inside when you compare one S200 to another. The S257, for example, is an S200-frame turbo with a 57 mm compressor inducer, not a separate frame between the S200 and S300.

Industrial and on-highway versions are often tagged with a letter suffix such as S200G or S200AG. You will see the BorgWarner S200G listing used for several of these ratings. The suffix and the full part number tell you the wheel sizes, the housing A/R and the wastegate setup; the engine name alone does not.

A turbocharger in this class is a straightforward device: exhaust spins the turbine, the turbine drives the compressor on a common shaft, and the compressor packs more air into the cylinders. If you want a refresher on the basic principle, this overview lays it out. The S200’s job is to do that reliably for thousands of hours in dusty, hot, high-load service.

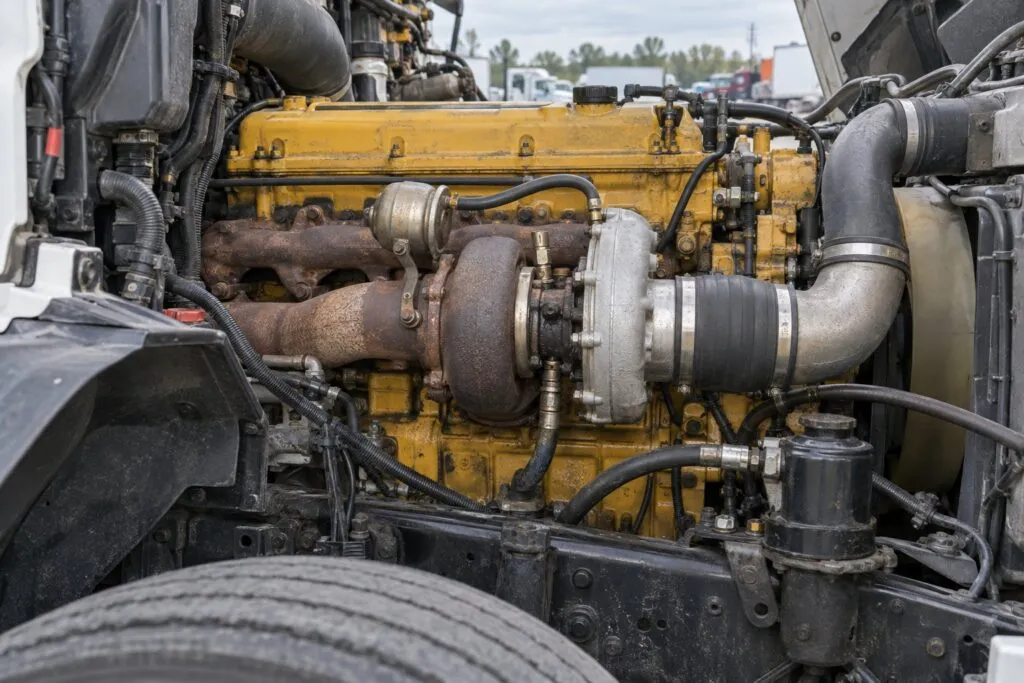

Caterpillar C7, 3116 and 3126 Applications

On most Caterpillar 3116, 3126 and C7 ratings, the factory turbo is a BorgWarner S200AG or S200G version. The exceptions matter: the 3126B, the 3126E and some C7 ratings carry an S300 instead, for example an S300AG072. This is exactly why you confirm by the part number rather than assuming every 3126 or C7 wears an S200.

The C7 was Caterpillar’s 2003 to 2009 on-highway engine, and it went into Freightliner, Sterling and Ford medium-duty trucks, buses and motorhomes. It did not go into International trucks. Only the 2007 and later C7 ratings used a variable-vane turbo; the earlier C7, 3116 and 3126 ran fixed-geometry units. The 3126 itself ran from the mid-1990s to 2003 and has no factory particulate filter.

If you are working on the larger brother of this engine, the Caterpillar C9 turbocharger guide covers the S310 family and the S200AG ratings that show up on some C9 machine engines. Caterpillar does not build its own turbochargers; Garrett and BorgWarner supply them, so the same reading-the-tag discipline applies up and down the Cat line.

John Deere PowerTech and Agricultural Applications

John Deere PowerTech engines, including the 4045, 6068, 6081 and 6090, are mostly BorgWarner-charged. Earlier engines run S200 and S300 fixed-geometry turbos; later, cleaner-emissions PowerTech Plus engines moved to variable-geometry units with an electronic actuator, such as the S300BV (BorgWarner also lists an S200V variable-geometry turbo for 4.5 L agricultural engines). The 4045 is also listed with S1B and S2A turbos, and some versions carry Garrett units.

That spread is the whole reason the “agricultural S200” is hard to pin down from the engine model. A 6068 in a combine, a sprayer, a backhoe and a genset can wear different turbos depending on the horsepower rating, the year and the emissions tier. The PowerTech letter helps: PowerTech M is a mechanical fuel system, PowerTech E is electronic, and PowerTech Plus is the four-valve engine with the variable-geometry turbo.

For the owner-operator or the farm shop, the practical takeaway is simple. Pull the turbo, read the tag, and match the BorgWarner number. BorgWarner part numbers run six digits on the older S-series or eleven on newer ones, never seven, and the nameplate sits on the compressor housing. You can confirm a current listing against BorgWarner if you want to cross-check the frame.

S200 vs S300: Which Frame Is on Your Engine

Because the same engine family can carry either frame, it helps to understand what separates them. The S300 is a physically larger frame with bigger wheels and a higher flow ceiling. BorgWarner lists the S300 with inducers from 57 to 72 mm and a 76 or 80 mm turbine wheel, against the S200’s 46 to 57 mm inducers and 70 mm turbine.

Attribute	S200 frame	S300 frame
Compressor inducer range	~46 to 57 mm	~57 to 72 mm
Turbine wheel	~70 mm	76 or 80 mm
Typical power band	Lower mid-range ratings	Higher mid-range ratings
Common Cat fitment	3116, 3126, many C7	3126B / 3126E, some C7
Geometry	Fixed, with or without wastegate	Fixed; variable (S300BV, S200V) on later Deere

If your core is an S300-frame unit, see our BorgWarner S300 and S300BV listings instead. On Cummins engines, by contrast, an S300 or S400 is an aftermarket upgrade rather than the factory turbo, which is worth remembering if you also run Cummins iron in the same fleet. Our Cummins ISL turbocharger guide and Cummins QSB guide cover those Holset applications.

How the S200 Fails and What to Check First

Most turbo failures trace back to the oil supply, not to the turbo itself. On the S200, as on any journal-bearing unit, a dirty or interrupted oil feed, coked oil from hard hot shutdowns, or a restricted drain will take out the bearings. Before you condemn a turbo, check the oil feed line, the drain, the oil level and the air filter.

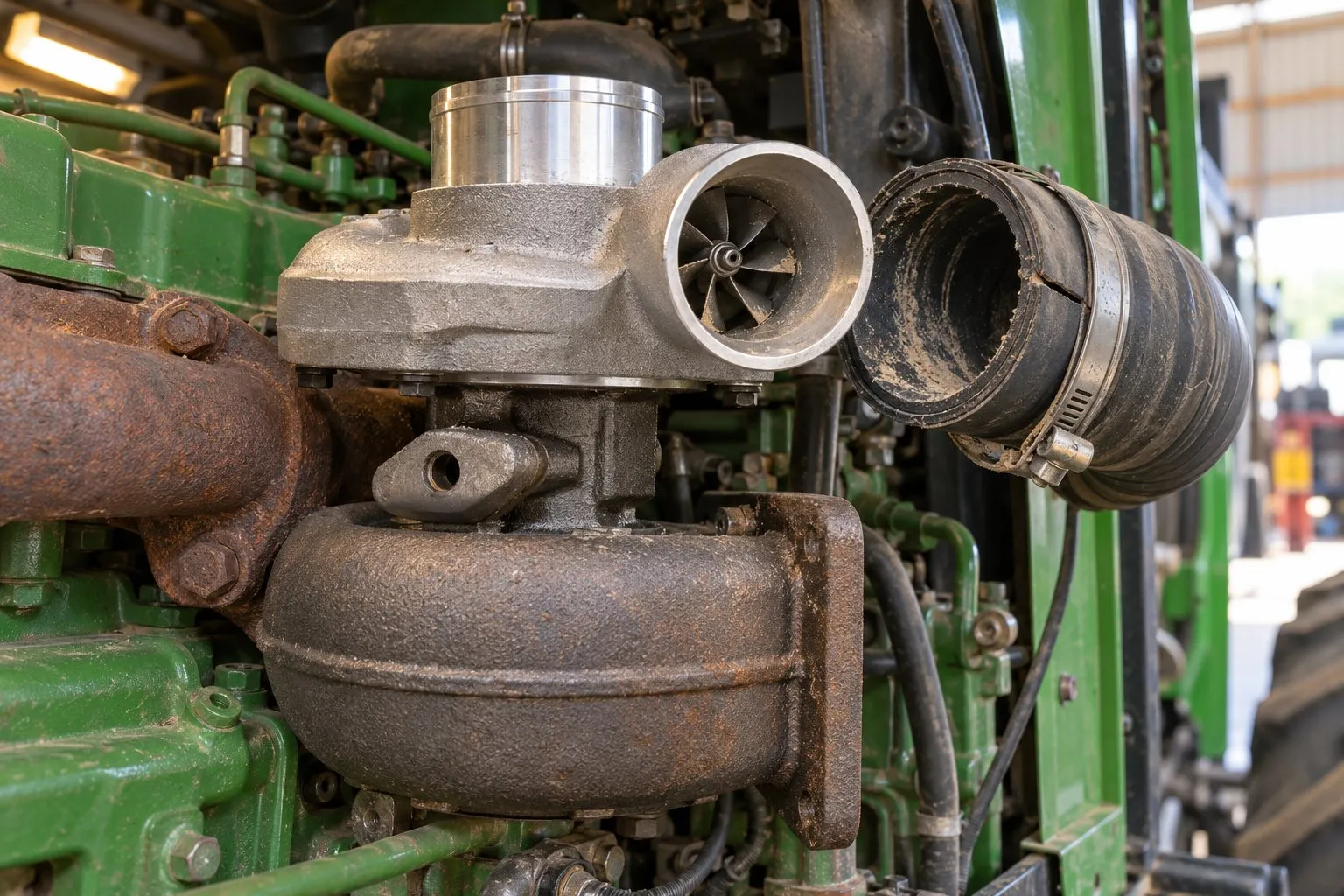

The classic agricultural and construction killer is ingested dirt. A split intake boot, a loose clamp or a neglected air filter lets abrasive dust reach the compressor wheel, and the leading edges erode. The inlet side ahead of the turbo is under suction, so a crack there pulls in dirt rather than leaking boost.

Here is how the common symptoms sort out on a fixed-geometry S200:

• Low boost, slow spool, black or gray smoke: leak in the up-pipes or manifold before the turbine, a wastegate that is not seating, or a worn compressor from dirt ingestion.
• Blue-gray smoke and oil in the charge pipes: check the breather, air filter, oil level and drain first; some oil film from crankcase ventilation is normal.
• Grinding, whine or shaft noise under load: bearing wear. In-and-out shaft play you can feel, or wheel contact with the housing, condemns the unit.
• Overboost: on a boost-opened wastegate, a leaking actuator diaphragm lets the gate open late.

When you check shaft play, remember that some side-to-side rock is normal on a journal-bearing turbo. Condemn it for in-and-out play you can feel or for wheel contact with the housing, not for any movement at all. If a compressor wheel has shed metal into the charge air cooler, replace the cooler; metal in the fins cannot be reliably flushed out and will go straight into the engine.

New, Remanufactured or Rebuilt: Getting the Right S200

You have three good paths with an S200, and the best one depends on your downtime and your core. We stock new units, carry remanufactured turbochargers, and we rebuild your own turbo in-house on our own equipment.

Option	Best when	Core needed	Turnaround
New	No usable core, want longest service life	No	In-stock ships same day before 2 PM Pacific
Remanufactured	Fast swap, exchange your core within 30 days	Yes	In stock ships same day; others 1 to 2 business days
Rebuild your unit	Original housings and tag must stay	Your turbo	Most rebuilds ship in 3 days or less

Our rebuilds and remans carry a 12-month, unlimited-mileage warranty. The core return on a remanufactured turbo is within 30 days, with the customer covering return shipping. For rebuild cost, see our turbo rebuild price list by model; the price is confirmed after inspection and before any work starts. For new or reman pricing on a specific S200 number, check the product page or call us.

Whichever path you choose, send us the full part number off the data plate on the compressor housing. Casting numbers on the housings are not part numbers; one casting serves many turbos, so they only narrow the search. Wheel sizes and housing A/R confirm the rest. If you are not sure what you have, contact PT Turbo or call (909) 824-1020 and read us the tag.

Frequently Asked Questions

Is the BorgWarner S200 Turbocharger used on the Caterpillar C7?

Yes, most Caterpillar 3116, 3126 and C7 ratings carry an S200AG or S200G version from the factory. But the 3126B, 3126E and some C7 ratings use an S300 instead, and the 2007 and later C7 used a variable-vane turbo, so always confirm by the part number on the tag rather than the engine name.

What is the difference between the S200 and S300 frame?

The S300 is a larger frame with bigger wheels and a higher flow ceiling. The S200 runs roughly 46 to 57 mm compressor inducers with a 70 mm turbine, while the S300 runs about 57 to 72 mm inducers with a 76 or 80 mm turbine. The same engine family can carry either, which is why the tag number is the only reliable guide.

Can PT Turbo rebuild my John Deere or Cat S200 turbo?

Yes. We rebuild S200-frame turbos in-house, stock new and remanufactured units, and back our work with a 12-month unlimited-mileage warranty. Send us the part number from the compressor-housing data plate and we will match the correct build; most rebuilds ship in 3 days or less.
