If you wrench on 5.9L Cummins trucks, you already know the Holset turbo bolted to that inline-six is half the reason these engines move freight for 400,000 miles without blinking. But the Ram 2500/3500 5.9L Cummins turbocharger lineup confuses a lot of owners and even some shops, because Dodge ran three very different Holset units across the 1994 to 2007 production span: the fixed-geometry HX35, the quick-spooling HY35, and the variable-geometry HE341VE. Bolt the wrong one on, or feed it the wrong fueling, and you either choke the top end or lag off the line. This guide breaks down each turbo by year, specs, failure symptoms, and what it costs to do the job right.
HX35, HY35 and HE341VE: Which Turbo Came on Your 5.9L?
All three turbos are Holset units, but they were never interchangeable from the factory without supporting changes. Here is how Dodge and Cummins matched them to model years.
| Turbo | Years | Engine | Design | Stock HP Support |
|---|---|---|---|---|
| HX35 / HX35W | 1994–2002 | 12-valve & early 24-valve | Fixed geometry, wastegated | ~215–245 hp (up to ~450 hp built) |
| HY35 / HY35W | 2003–2004 | 5.9L common rail (305 hp) | Fixed geometry, wastegated | ~305 hp (up to ~500 hp built) |
| HE341VE | 2004.5–2007 | 5.9L common rail (VGT applications) | Variable geometry, electronic actuator | ~325 hp (up to ~525 hp built) |
The short version: 12-valve and 24-valve trucks (1994 to 2002) run the HX35. The 2003 to 2004 common rail trucks run the HY35. The later 5.9L common rail trucks moved to variable-geometry Holset technology, the platform the HE341VE shares with the ISBe family before the 6.7L took over in 2007.5. If you are stepping up to the 6.7L platform, our 6.7L Cummins HE351VE vs HE300VG guide covers that generation in detail.
The HX35: The Workhorse That Built the Cummins Reputation
The HX35 is the turbo most people picture when they think “Cummins.” It is a fixed-geometry, wastegated charger with a roughly 54mm inducer compressor wheel and a 70mm turbine wheel, typically paired with a 12cm or 16cm turbine housing depending on application. The “W” suffix (HX35W) added a 360-degree thrust bearing and machined-back compressor wheel on later 24-valve trucks, which is why the 1998.5 to 2002 units handle more boost than the early 12-valve castings.
What makes the HX35 legendary is its simplicity. There is no electronic actuator, no sliding nozzle, no VGT solenoid to fail. The wastegate is a vacuum or boost-referenced diaphragm, and that is it. It spools by around 1,800 to 2,000 rpm under load and supports 35 to 40 psi all day. Built engines regularly push these to 450 horsepower before the turbine wheel becomes the bottleneck.
Common HX35 failure points:
- Wastegate actuator diaphragm rupture causing overboost or a stuck-open creep.
- Shaft play and oil seal leakage from worn journal bearings, often after extended idling and coked oil.
- Compressor wheel damage from ingested debris when the intake boot splits.

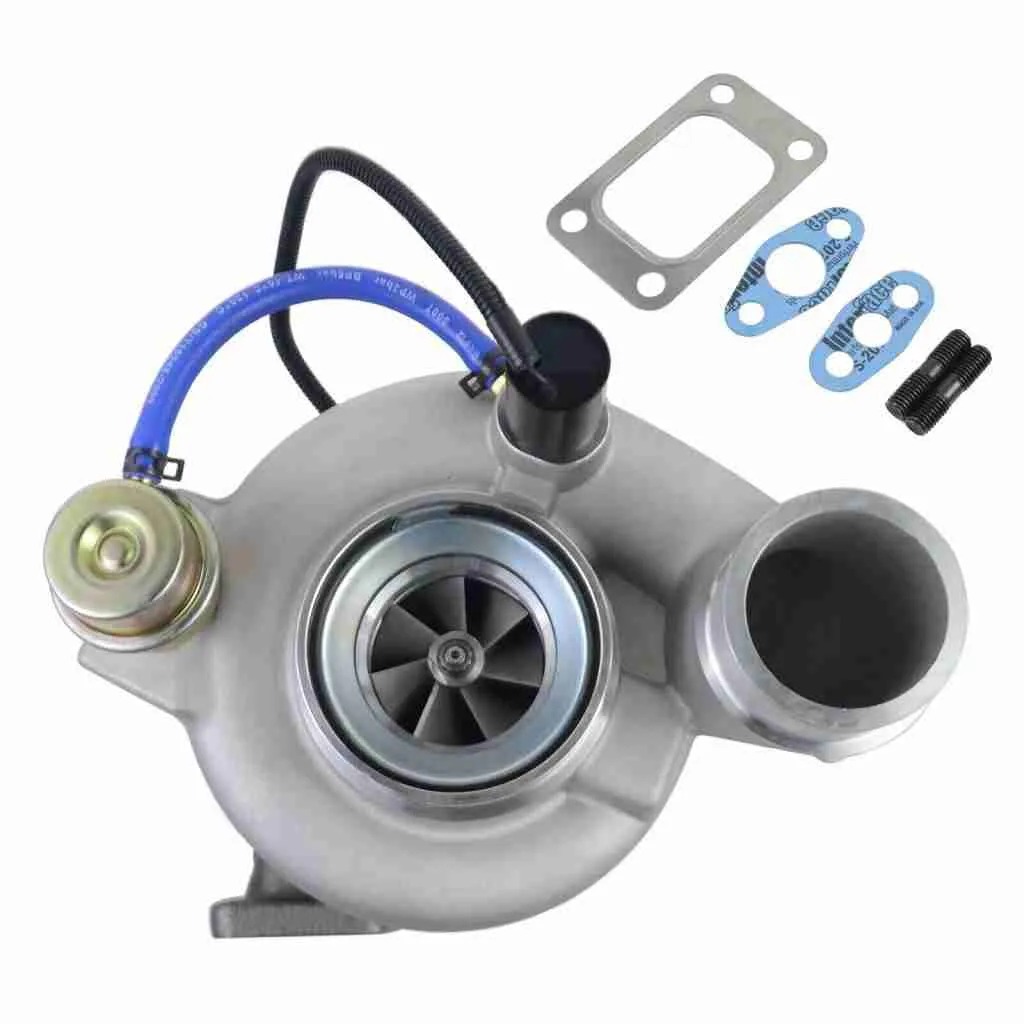

The HY35: Smaller, Faster, Tuned for the Common Rail
When Cummins introduced the high-pressure common rail in 2003, they paired it with the HY35. It is physically similar to the HX35 but uses a smaller turbine A/R and revised wastegate calibration to spool faster and meet tighter emissions response targets. On a stock 305-horsepower truck, the HY35 lights quickly and gives that 2003 to 2004 truck its snappy throttle feel.
The tradeoff is top-end. The HY35 runs out of breath sooner than an HX35 once you add fuel, which is why a lot of owners of these trucks swap to an HX35 or an aftermarket charger when they tune. If you are keeping it stock or near-stock, the HY35 is a perfectly good turbo and a direct bolt-in replacement. Watch the same wastegate and bearing wear items as the HX35, plus check the exhaust manifold for cracks, which is a known weak point on the 2003 to 2004 trucks that puts uneven load on the turbine flange.
The HE341VE: Variable Geometry on the 5.9L
The HE341VE represents Holset’s move to variable geometry on the 5.9L platform. Instead of a wastegate dumping excess exhaust energy, a variable-geometry turbo uses a sliding nozzle ring that changes the effective turbine housing area on the fly. At low rpm the vanes close down to accelerate exhaust gas across the turbine for fast spool; at high rpm they open up to flow freely and prevent overboost. The result is broad, drive-by-wire-managed boost with strong exhaust braking capability.
That capability comes with complexity. The HE341VE relies on an electronic actuator and the sliding nozzle assembly, and both are sensitive to soot buildup. The single most common VGT failure on these Holsets is a sticking nozzle ring caused by carbon and ash packing into the vane mechanism, usually from short trips, heavy idling, and skipped regen-style highway runs. Symptoms include a flashing check engine light, actuator fault codes, low boost, or a turbo that whistles and overboosts because the vanes are stuck closed.
If your actuator is throwing codes but the cartridge is otherwise sound, a professional turbocharger rebuild service that disassembles, media-blasts the nozzle ring, and recalibrates the actuator is often far cheaper than a new unit. PT Turbo has been doing exactly that for 45-plus years.
Symptoms of a Failing 5.9L Cummins Turbo
Catch a turbo before it grenades and sends metal downstream into the intercooler and intake. Use these symptoms to gauge severity.
| Severity | Symptom | Likely Cause |
|---|---|---|
| Early warning | Faint whistle or whine that changes pitch | Bearing wear, minor shaft play |
| Early warning | Blue/gray smoke at idle or on startup | Oil seal leakage past the seals |
| Moderate | Low boost, sluggish acceleration | Stuck wastegate or sooted VGT nozzle |
| Moderate | Boost codes / flashing CEL (HE341VE) | Electronic actuator or nozzle fault |
| Severe | Loud grinding, oil in the charge pipe | Bearing failure, wheel contact |
| Severe | Sudden power loss with metal in intercooler | Compressor or turbine wheel failure |
Replacement
Cross-Reference & Superseded Part Numbers
The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:
172-784-0109 • 172-784-0127 • 172-784-0128 • 172-784-0130 • 172-784-0136 • 172-784-0428 • 3580725H • 4027225H • 4032425H • 407302-5005S • 408742-5001S • 408742-5002S • 408742-5006S • 408742-5007S • 409172-9009S • 431922-9001S • 442032-5001S • 442032-5002S • 442032-9002S • 451686-5007S • 451742-5009S • 452705-5045S • 57699900001 • 57909882500 • 6379347H • 6379347HX • 700148-5001S • 702173-5001S • 709835-5003S • 709838-5006S • 709838-9006S • 710270-5035S • 711736-5001W • 712303-5005S • 712371-5016S • 712371-5039S • 712371-5204S • 712371-5263S • 712371-5271S • 712402-5006S • 712402-5007S • 712402-5008S • 712473-5001S • 713673-9007S • 714508-5003S • 715432-5010S • 715432-5037S • 715583-5007S • 716703-5001S • 724193-5005S • 725390-5006S • 725390-9006S • 726027-5018S • 727263-5001S • 730892-5097S • 730892-5098S • 735574-5019S • 735913-5007S • 736554-5011S • 736554-9011S • 738233-5001S • 750853-5001S • 751361-5001S • 755593-5006S • 755963-5007S • 757621-5007S • 758535-5005S • 761303-5003S • 761303-5004S • 763286-5001S • 777318-5002W • 777318-5003W • 777318-9003W • 784783-5048S • 784783-5049S • 784783-5050S • 789003-5009S • 789773-5035S • 790463-5010S • 795949-5001S • 805868-5001S • 805868-5002S • 805868-5003S • 805869-5001S • 806173-5001S • 806173-5003S • 806183-5001S • 806183-5002S • 806183-5003S • 806183-5006S • 816557-5001S • 817763-5004S • 818125-5071S • 820803-5009S • 821443-5006S • 821613-5004S • 824453-5004S • 827052-5002S • 827053-5001S • 827729-5002S • 828375-0001 • 830232-5009S • 830233-5015S • 830233-9015S • 836012-5002S • 836012-5004S • 836012-5007S • 836012-5008S • 836012-5009S • 836023-5001S • 836023-5003S • 836023-5004S • 836033-5002S • 836042-5001S • 836042-5002S • 836042-5003S • 838452-5003S • 841902-5019S • 846903-5001S • 848212-5001S • 848212-5002S • 848212-5003S • 848212-9001S • 848212-9002S • 848212-9003S • 851824-5001S • 851824-9001S • 853073-5003S • 853333-5001W • 853603-5002S • 854572-5001S • 854572-9001S • 855562-5001S • 855562-5002S • 855563-5001S • 855563-5002S • 872862-5005S • 872862-5006S • 880063-5004S • 880693-5001S • 880693-5002S • 880693-5003S • 880862-5001W • 881294-5003S • 881294-5004S • 886976-5004S • 887393-5005S • 888142-5001S • 888142-9001S • 888143-5001S • 888143-9001S • 889939-5001W • 892925-5001Y • 894017-5011S • 895473-5001S • 896052-5003S • 896053-5003S • 904272-5001S • 904272-5002S • 912615-5002S • 914155-5001S • 914553-5002S • 914553-5003S • 922683-5001S • 926432-5001S • 952201-5001S • C71CND-S0012B • C71CND-S0019B • C71CND-S0021B • C71CND-S0028B • C71CND-S0029B • C71CND-S0031B • C71CND-S0039B • C71CND-S0061B • C71CND-S0063B • C71CND-S0071B • C71CND-S0073B • C71CND-S0076B • C71CND-S0097B • F32CAD-S0031B • F41CEY-SR082B • JTC11720 • RA4720901480 • V41VAT-S0105B • V41VAT-S0106B
Can’t find your number above? Contact PT Turbo — our team has been matching part numbers since 1978.
Cross-Reference & Superseded Part Numbers
The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:
172-784-0109 • 172-784-0127 • 172-784-0128 • 172-784-0130 • 172-784-0136 • 172-784-0428 • 3580725H • 4027225H • 4032425H • 407302-5005S • 408742-5001S • 408742-5002S • 408742-5006S • 408742-5007S • 409172-9009S • 431922-9001S • 442032-5001S • 442032-5002S • 442032-9002S • 451686-5007S • 451742-5009S • 452705-5045S • 57699900001 • 57909882500 • 6379347H • 6379347HX • 700148-5001S • 702173-5001S • 709835-5003S • 709838-5006S • 709838-9006S • 710270-5035S • 711736-5001W • 712303-5005S • 712371-5016S • 712371-5039S • 712371-5204S • 712371-5263S • 712371-5271S • 712402-5006S • 712402-5007S • 712402-5008S • 712473-5001S • 713673-9007S • 714508-5003S • 715432-5010S • 715432-5037S • 715583-5007S • 716703-5001S • 724193-5005S • 725390-5006S • 725390-9006S • 726027-5018S • 727263-5001S • 730892-5097S • 730892-5098S • 735574-5019S • 735913-5007S • 736554-5011S • 736554-9011S • 738233-5001S • 750853-5001S • 751361-5001S • 755593-5006S • 755963-5007S • 757621-5007S • 758535-5005S • 761303-5003S • 761303-5004S • 763286-5001S • 777318-5002W • 777318-5003W • 777318-9003W • 784783-5048S • 784783-5049S • 784783-5050S • 789003-5009S • 789773-5035S • 790463-5010S • 795949-5001S • 805868-5001S • 805868-5002S • 805868-5003S • 805869-5001S • 806173-5001S • 806173-5003S • 806183-5001S • 806183-5002S • 806183-5003S • 806183-5006S • 816557-5001S • 817763-5004S • 818125-5071S • 820803-5009S • 821443-5006S • 821613-5004S • 824453-5004S • 827052-5002S • 827053-5001S • 827729-5002S • 828375-0001 • 830232-5009S • 830233-5015S • 830233-9015S • 836012-5002S • 836012-5004S • 836012-5007S • 836012-5008S • 836012-5009S • 836023-5001S • 836023-5003S • 836023-5004S • 836033-5002S • 836042-5001S • 836042-5002S • 836042-5003S • 838452-5003S • 841902-5019S • 846903-5001S • 848212-5001S • 848212-5002S • 848212-5003S • 848212-9001S • 848212-9002S • 848212-9003S • 851824-5001S • 851824-9001S • 853073-5003S • 853333-5001W • 853603-5002S • 854572-5001S • 854572-9001S • 855562-5001S • 855562-5002S • 855563-5001S • 855563-5002S • 872862-5005S • 872862-5006S • 880063-5004S • 880693-5001S • 880693-5002S • 880693-5003S • 880862-5001W • 881294-5003S • 881294-5004S • 886976-5004S • 887393-5005S • 888142-5001S • 888142-9001S • 888143-5001S • 888143-9001S • 889939-5001W • 892925-5001Y • 894017-5011S • 895473-5001S • 896052-5003S • 896053-5003S • 904272-5001S • 904272-5002S • 912615-5002S • 914155-5001S • 914553-5002S • 914553-5003S • 922683-5001S • 926432-5001S • 952201-5001S • C71CND-S0012B • C71CND-S0019B • C71CND-S0021B • C71CND-S0028B • C71CND-S0029B • C71CND-S0031B • C71CND-S0039B • C71CND-S0061B • C71CND-S0063B • C71CND-S0071B • C71CND-S0073B • C71CND-S0076B • C71CND-S0097B • F32CAD-S0031B • F41CEY-SR082B • JTC11720 • RA4720901480 • V41VAT-S0105B • V41VAT-S0106B
Can’t find your number above? Contact PT Turbo — our team has been matching part numbers since 1978.
