Nissan YD25 2.5L Diesel Turbocharger Guide: Navara & Pathfinder Replacement

This Nissan YD25 2.5L Diesel Turbocharger Guide is built for the mechanics, fleet operators, and owner-operators who need straight answers about the turbo bolted to one of Nissan’s most widely used common-rail diesels. The YD25DDTi has powered the Navara (D22, D40), Pathfinder R51, and NP300 across two decades of hard service, and the turbocharger is one of the most failure-prone components on the engine once mileage climbs.

At PT Turbo we have been rebuilding and supplying turbochargers since 1978, more than 45 years of hands-on experience with variable-geometry units exactly like the ones fitted to the YD25. This guide covers the factory specs, common failure modes, the actuator situation, and how to choose between a new, remanufactured, or rebuilt turbo.

YD25DDTi Turbocharger Specifications

The YD25DDTi is a 2.5-liter, 16-valve, DOHC inline-four with common-rail direct injection. Depending on model year and market, output ranges from roughly 98 kW to 140 kW, with the later twin-turbo YS25 variants pushing higher.

Most single-turbo YD25 applications run a variable-geometry turbocharger (VGT), also called a variable-nozzle turbo. Garrett GT series and IHI RHF series units are the most common factory fitments, with Mitsubishi TD-series turbos appearing in certain builds.

Attribute	Detail
Engine	YD25DDTi 2.5L common-rail diesel
Turbo type	Variable geometry (VGT / VNT)
Common OEM units	Garrett GT2056V, IHI RHF4/RHF5, Mitsubishi TD-series
Actuator	Pneumatic (vacuum) or electronic depending on year
Applications	Navara D22/D40, Pathfinder R51, NP300
Typical service life	150,000 to 250,000 km before major service

The variable-geometry design lets the turbo deliver strong low-end boost and reduce lag by adjusting the angle of the vanes in the turbine housing. If you want the background on how these work, the variable-geometry turbocharger overview covers the fundamentals.

Common YD25 Turbocharger Failure Modes

The YD25 turbo rarely fails without warning. The vast majority of problems trace back to three areas: the variable-geometry vane mechanism, the actuator, and oil-related bearing wear.

Carbon and soot buildup on the VGT vanes is the number one killer. Short trips, EGR contamination, and infrequent oil changes cause the vanes to stick, which produces erratic boost, limp mode, and loss of power.

Symptoms by severity

Severity	Symptoms	Likely cause
Early	Mild lag, slight power loss, occasional whistle	Vane carbon buildup, small boost leak
Moderate	Limp mode, black or white smoke, overboost/underboost codes	Sticking vanes, failing actuator
Severe	Loud whine, blue smoke, oil in intake, shaft play	Bearing failure, worn seals, damaged wheel

Blue smoke and oil in the intercooler piping almost always mean the turbo seals have failed and oil is passing into the intake. Once you have shaft play you can feel by hand, the center cartridge is done and the unit needs a rebuild or replacement.

Contaminated or restricted oil supply is the other big one. A blocked feed line or extended oil-change intervals starve the center bearing, and on a VGT that runs hot exhaust gas through the cartridge, that heat cooks the oil into coke.

The Actuator: Where Most YD25 Turbos Actually Fail

Here is the truth that saves a lot of money: many YD25 turbos condemned as “failed” only need a new actuator. The pneumatic actuator controls the VGT vane position, and when the diaphragm tears or the linkage seizes, you get boost control faults even though the cartridge is fine.

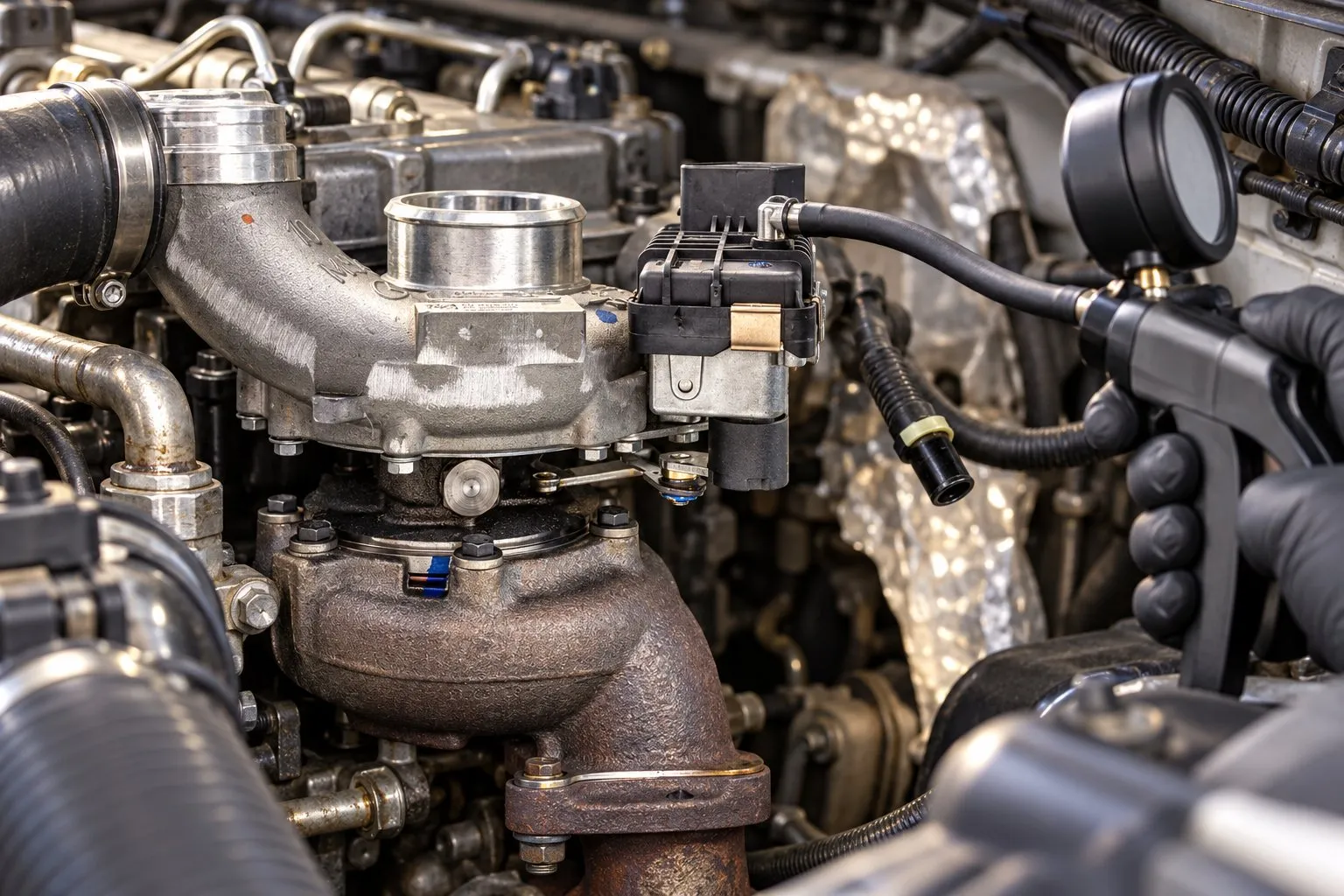

Before you replace an entire turbo, test the actuator. If it will not hold vacuum or the rod does not move through full travel, that is your problem. Replacing the actuator is a fraction of the cost of a full turbo swap.

PT Turbo stocks a range of pneumatic actuators that fit YD25-family and closely related VGT turbos. For Garrett-based units, the Garrett Pneumatic Actuator 757979-5102 is available for $240.94, a direct-quality replacement for common Garrett VNT applications.

For heavier-duty or higher-boost Garrett builds, the Garrett Pneumatic Actuator 445963-0040 runs $465.52 and is calibrated for the larger frame units.

If your YD25 or a related engine in your fleet runs a Mitsubishi TD-series turbo, we carry the Mitsubishi TD03 Pneumatic Actuator 49S3118761 at $104.33, along with the Mitsubishi Pneumatic Actuator 4918918935 for $83.99. Both are cost-effective fixes when the cartridge is still healthy.

One caution: many replacement actuators need to be preset to the correct calibration. Setting vane position wrong will cause overboost or underboost. If you are not sure how to set it, our team can walk you through the procedure or supply a preset unit.

Nissan YD25 2.5L Diesel Turbocharger Guide to Replacement Options

When the cartridge is genuinely worn, you have three real paths: buy a brand-new OEM or aftermarket turbo, install a remanufactured unit, or send your original core in for a professional rebuild. Each has a place depending on budget and how long you plan to keep the truck.

Option	Typical cost	Best for	Notes
New OEM	Highest	Late-model, warranty-critical vehicles	Longest life, highest upfront cost
Remanufactured	Moderate	Most owners and fleets	Balanced, tested, new wear parts
Rebuild your core	Lowest	Keeping matched original housing	Requires a usable core, some downtime
Actuator only	Lowest overall	Healthy cartridge, actuator fault	Verify cartridge first

A quality remanufactured turbocharger is the sweet spot for most YD25 owners. Every reman unit gets new bearings, seals, and a balanced center cartridge, then it is flow-tested before it ships. You get near-new reliability without the OEM price tag.

If you want to keep your exact original housing and matched components, our turbocharger rebuild service restores your core to factory tolerances. This is a smart route when your casting is in good shape and you would rather refresh than replace.

You can also browse the full range in our turbo shop or reach out through our contact page if you need help matching a part number to your VIN and build.

Installation and Longevity Tips

Whether you fit new, reman, or rebuilt, a few steps make the difference between a turbo that lasts 200,000 km and one that fails in a month.

• Always replace the oil feed line and clean the return line. A partially blocked feed is the fastest way to kill a fresh turbo.
• Prime the new turbo with clean oil at the feed port and spin it by hand before startup.
• Change the engine oil and filter at install, and use the correct diesel-rated oil.

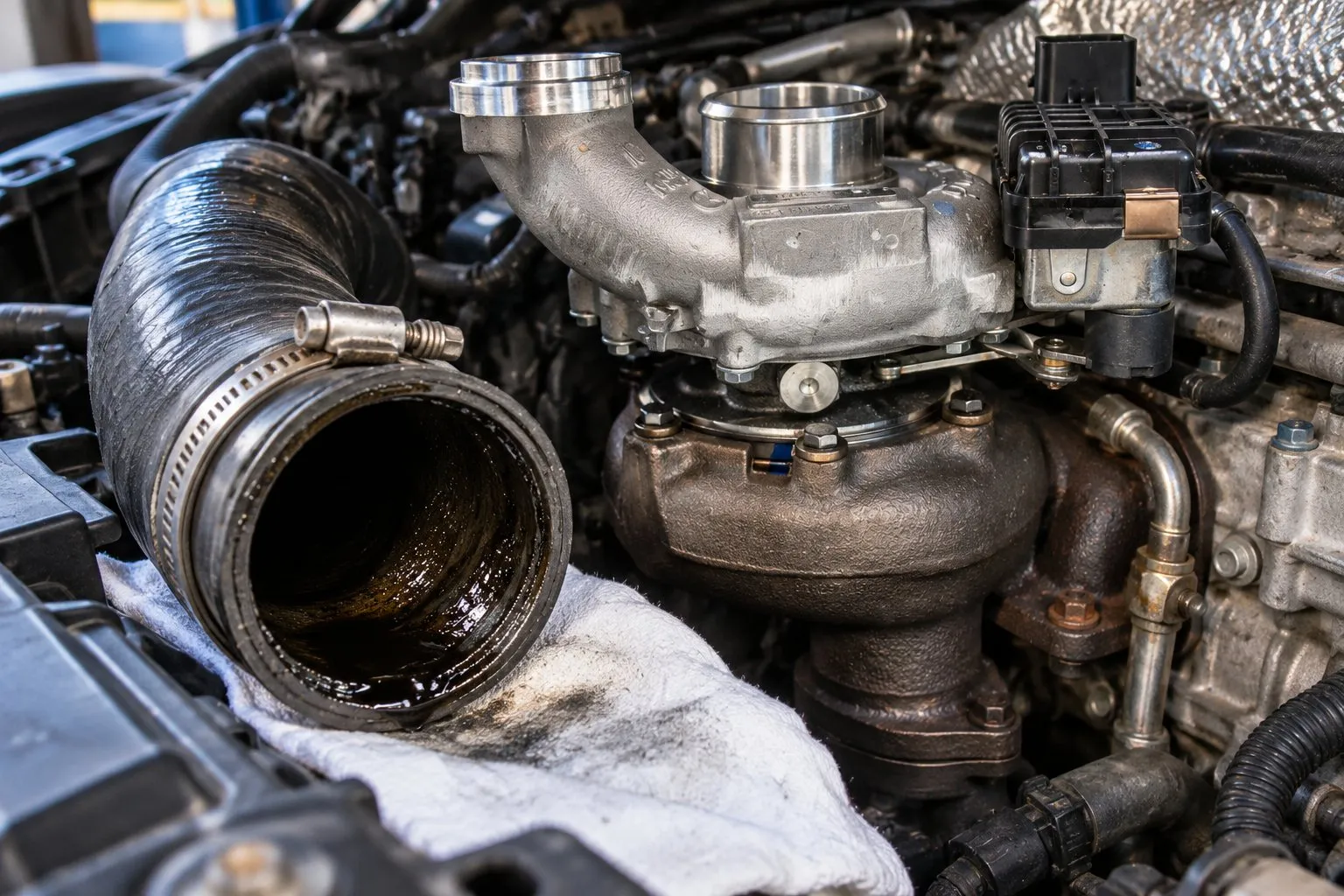

• Inspect the intercooler and piping for old oil residue and clean it out before connecting.
• Check and clean or replace the EGR system if carbon buildup was the original cause.
• After startup, idle for a few minutes to let oil circulate before loading the engine.

Carbon-laden intake air from a leaking EGR system is a recurring cause of vane sticking on the YD25. If you replace the turbo without addressing EGR contamination, you are inviting the same failure again.

On the maintenance side, avoid shutting the engine down immediately after hard driving. Letting a hot turbo sit without oil flow bakes the bearing oil and shortens cartridge life. A short idle-down habit protects your investment.

Frequently Asked Questions

How do I know if it is my turbo or just the actuator on a YD25?

Test the actuator first. Apply vacuum to the actuator and watch the rod: it should move smoothly through full travel and h

Cross-Reference & Superseded Part Numbers

The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:

172-784-0568  •  172-784-0577  •  172-784-0592  •  3786245H  •  4031007H  •  4033691H  •  49S3107605  •  49T3501801  •  766886-5018S  •  768440-5015S  •  827388-5012S  •  827388-5013S  •  836026-5006S  •  C61CAD-S0085B  •  CHRA-707160-5  •  CHRA-707160-9  •  F41CAD-S0058B  •  F41CAD-S0058C  •  F41CAT-S0125B  •  F41CAT-S0125C  •  F41CAT-S0153B  •  F45CET-S0057B  •  F51CAD-S0123B  •  F51CAD-S0150B  •  F54VAD-S0057B  •  G61CAD-S0011B  •  GRR-GT2-GT2-GSK  •  GRR-T4-T04-GSK  •  JTC11352  •  JTC11768  •  PTT-HSG-180  •  PTT-RB2-002  •  PTT-SR2-002  •  PTT-TBO-002  •  PTT-TBO-003  •  PTT-TBO-036  •  PTT-TBO-067  •  PTT-TBO-107  •  PTT-TBO-618  •  PTT-TBO-620  •  PTT-TBO-752  •  PTT-TBO-753  •  PTT-TBO-769  •  PTT-TBO-770  •  PTT-TBO-794  •  PTT-TBO-817  •  PTT-TBO-818  •  PTT-TBO-826  •  PTT-TBO-828  •  PTT-TBO-840  •  PTT-TBO-841  •  PTT-TBO-849  •  PTT-TBO-851  •  PTT-TBO-889  •  PTT-TBO-899  •  PTT-TBO-C15  •  PTT-TBO-C16  •  PTT-TBO-F83  •  PTT-TBO-G27  •  PTT-TBO-J22  •  PTT-TBO-J23  •  PTT-TBO-J24  •  PTT-TBO-J25  •  PTT-TBO-J26  •  PTT-TBO-J27  •  PTT-TBO-J28  •  PTT-TBO-K54  •  PTT-TBO-N21  •  PTT-TBO-N23  •  PTT-TBO-N24  •  PTT-WGT-011B  •  PTT-WGT-019  •  PTT-WGT-037  •  PTT-WGT-109  •  T3-60-TRM-CMP

Can’t find your number above? Contact PT Turbo — our team has been matching part numbers since 1978.
