The Holset HE431VE is a variable geometry turbocharger used on the 2007 and later Cummins ISC 8.3-liter and ISL 8.9-liter engines (and the QSL off-highway version), and on the Volvo D11 and Mack MP7. It is one of the commercial turbos we service regularly at PT Turbo. Here is a complete service overview.

How the HE431VE Electronic Actuator Works

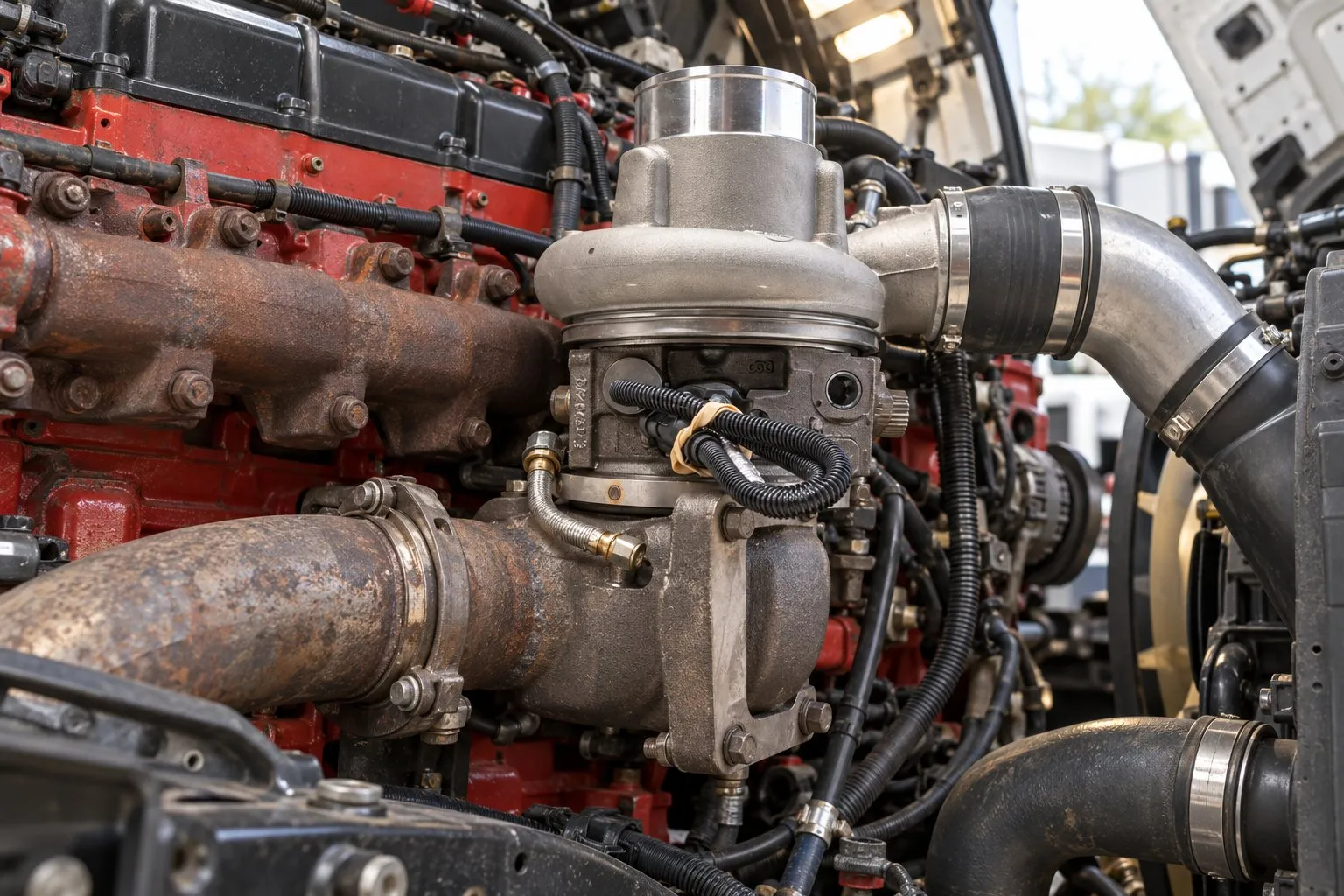

Unlike earlier Holset VGTs that use pneumatic actuators, the HE431VE uses a direct-drive electronic actuator—a small motor with a feedback position sensor that is controlled directly by the ECM. The ECM commands a nozzle position based on RPM, load, and emissions targets. The actuator slides the nozzle ring, which carries the vanes, in and out of the exhaust passage to narrow or widen it.

The advantage of the electronic design is faster and more precise vane control. The disadvantage is that the actuator is more sensitive to heat and vibration than a pneumatic design, and it cannot be controlled without scan tool access.

Signs the Actuator Is Failing

• Low boost or VGT actuator fault codes in INSITE (Cummins fault codes such as 2449, 1894 or 2634), especially under load
• Engine entering derate or limp mode
• Erratic boost readings on a scan tool (nozzle position feedback errors)
• Actuator motor running but no nozzle movement (gear failure inside actuator)
• Actuator not moving when commanded during a scan tool actuator test

When the actuator fails entirely, the VGT vanes typically default to a mid-open position. This causes underboost at low RPM and limits engine output. The truck will run but will not produce full rated power.

VGT Vane Cleaning: Can It Be Done Without Removal?

For a mildly sticking nozzle, where the sliding nozzle ring moves but is sluggish or does not reach full travel, an in-place chemical cleaning is sometimes effective. This involves introducing a turbo cleaning solvent through the intake while the engine is at operating temperature. The solvent softens carbon deposits on the sliding nozzle ring.

This approach works on trucks with moderate, recent carbon buildup. It does not work on a nozzle ring that is stuck hard, on worn nozzle parts, or on actuator gear failures. If a scan tool actuator test shows the actuator motor is running but nozzle position is not changing, chemical cleaning will not help—the actuator or nozzle assembly needs mechanical service.

Actuator Replacement vs Full Rebuild

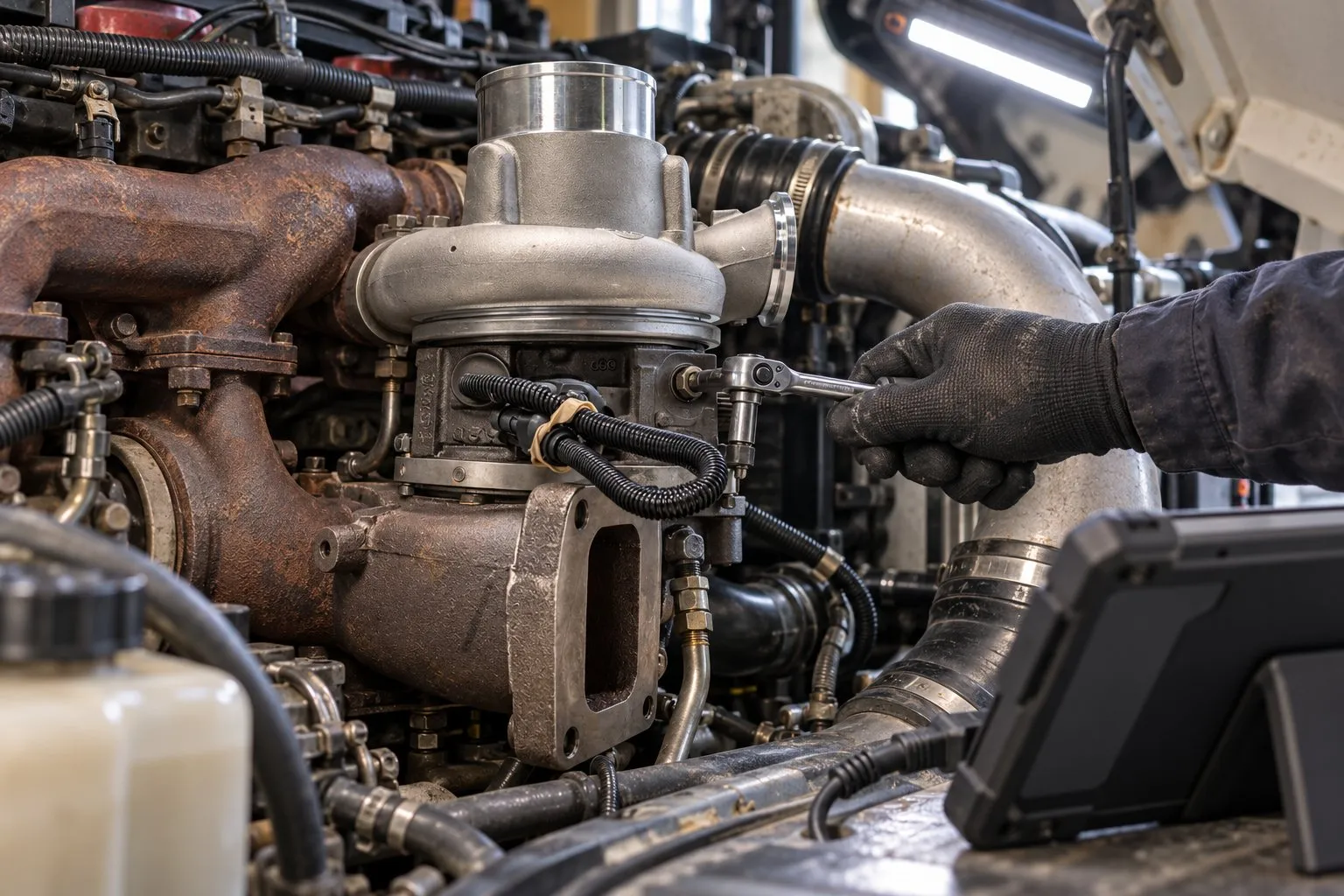

If the bearings and seals are serviceable and the turbine and compressor housings are in good condition, actuator replacement alone is a cost-effective repair. The actuator bolts to the center section and can be replaced in the field with basic tools and a scan tool for calibration.

A full rebuild is warranted when shaft play exceeds specifications, there is oil in the compressor inlet, or the turbine wheel shows heat damage or cracking.

PT Turbo lists remanufactured HE431VE units and replacement actuators in the store. We can help you determine over the phone whether you need an actuator, a rebuild, or a full reman unit. Call (909) 824-1020 or visit our store. Contact us here for fleet inquiries.

Shop PT Turbo: Browse our Holset turbocharger catalog and our Cummins turbocharger catalog — OEM-spec replacements with a 12-month, unlimited-mile warranty. Most orders ship within 1–2 business days.

Price ranges in this article are general estimates to help with budgeting, not PT Turbo quotes. Our current prices are on each product listing, and our rebuild prices are on the turbo rebuild price list.

Frequently Asked Questions

What engines use the Holset HE431VE?

The Cummins ISL 8.9L and ISC 8.3L from the 2007 emissions engines on, the QSL 8.9L, the Volvo D11 and the Mack MP7. It is a variable geometry turbo with a sliding nozzle and an electronic actuator.

Does a new HE431VE actuator have to be calibrated?

Yes. Actuator replacement includes secure mounting and calibration with a scan tool. The actuator bolts to the center section and can be replaced in the field with basic tools, provided a scan tool is available for the calibration.

When does an HE431VE need a full rebuild and not just an actuator?

When shaft play exceeds specifications, there is oil in the compressor inlet, or the turbine wheel shows heat damage or cracking. If the bearings, seals and both housings are in good condition, replacing the actuator alone is a cost-effective repair.
