The Garrett T04B Turbocharger is one of those workhorse designs that refuses to disappear from shop floors, even decades after it first bolted onto agricultural, industrial, and light commercial diesel engines. Built around the proven T-Series frame that Garrett refined through the 1970s and 1980s, the T04B earned a reputation for tough compressor housings, forgiving bearing systems, and a wide range of trim options that let engine builders dial in exactly the airflow they needed.
At PT Turbo, we have been rebuilding and cross-referencing units like this since 1978. Over 45 years in the turbocharger business means we have seen the T04B do everything from feeding a Perkins tractor engine to boosting a hot-rodded small block. This guide breaks down the design, the fitment realities, and how to keep one running when parts feel scarce.
What Makes the Garrett T04B Turbocharger a Classic Design
The T04B belongs to Garrett’s T04 family, a lineup that became the industry benchmark for medium-airflow applications. Its journal bearing center housing rotating assembly (CHRA) is simple, serviceable, and cheap to rebuild compared to modern variable geometry units.
Where variable-geometry turbos rely on moving vanes and tight tolerances, the T04B uses a fixed nozzle turbine housing sized by A/R ratio. That simplicity is exactly why so many are still in service. There are fewer parts to fail, and a competent shop can restore one to spec without proprietary electronics.
Compressor wheels on the T04B typically flow enough for roughly 250 to 450 horsepower depending on trim and housing selection. Common trims include the S, H, and V configurations, each shifting the compressor map to favor either low-end response or top-end flow.
- Bearing system: Full-floating journal bearings, oil-cooled
- Compressor inducer range: roughly 2.0 to 2.5 inches depending on trim
- Turbine housing: Fixed A/R, available in multiple ratios (0.58 to 1.15 common)
- Lubrication: Pressure-fed engine oil, gravity drain
- Actuation: Internal or external wastegate depending on application
If you want a deeper look at how these older frames relate to the modern S-Series and GT platforms, our BorgWarner turbochargers fitment guide covers the lineage in detail.
Garrett and BorgWarner: How the Lineage Overlaps
The T04B carries the Garrett name, but the modern turbo landscape blends both Garrett and BorgWarner engineering across countless applications. Garrett, now Garrett Motion, continued developing the T-Series and GT-Series lines, while BorgWarner pushed the S-Series into heavy-duty dominance.
For technicians, the practical takeaway is interchangeability. Many T04B-based setups can be updated with modern compressor wheels or swapped for a BorgWarner S200 or S300 frame when parts availability or performance goals demand it.
We see this constantly on medium-duty diesels. A worn T04B on a Caterpillar or Detroit platform often gets replaced with a current-production BorgWarner unit. If that is your situation, our Caterpillar C9 S200 guide and Detroit Series 60 S300 guide walk through those upgrade paths.
Common T04B Failure Symptoms and Diagnosis
Because the T04B is a journal-bearing turbo, most failures trace back to oil quality, oil supply, or foreign object damage. Catching problems early saves the CHRA and often the engine.
| Symptom | Likely Cause | Severity |
|---|---|---|
| Blue smoke on startup | Worn seals, oil drain restriction | Moderate |
| Whining or siren noise | Bearing wear, shaft play | High |
| Low boost / sluggish response | Wastegate stuck open, actuator failure | Moderate |
| Oil in intake tract | Failed compressor-side seal | Moderate |
| Metal grinding, no boost | Complete bearing failure, wheel contact | Critical |

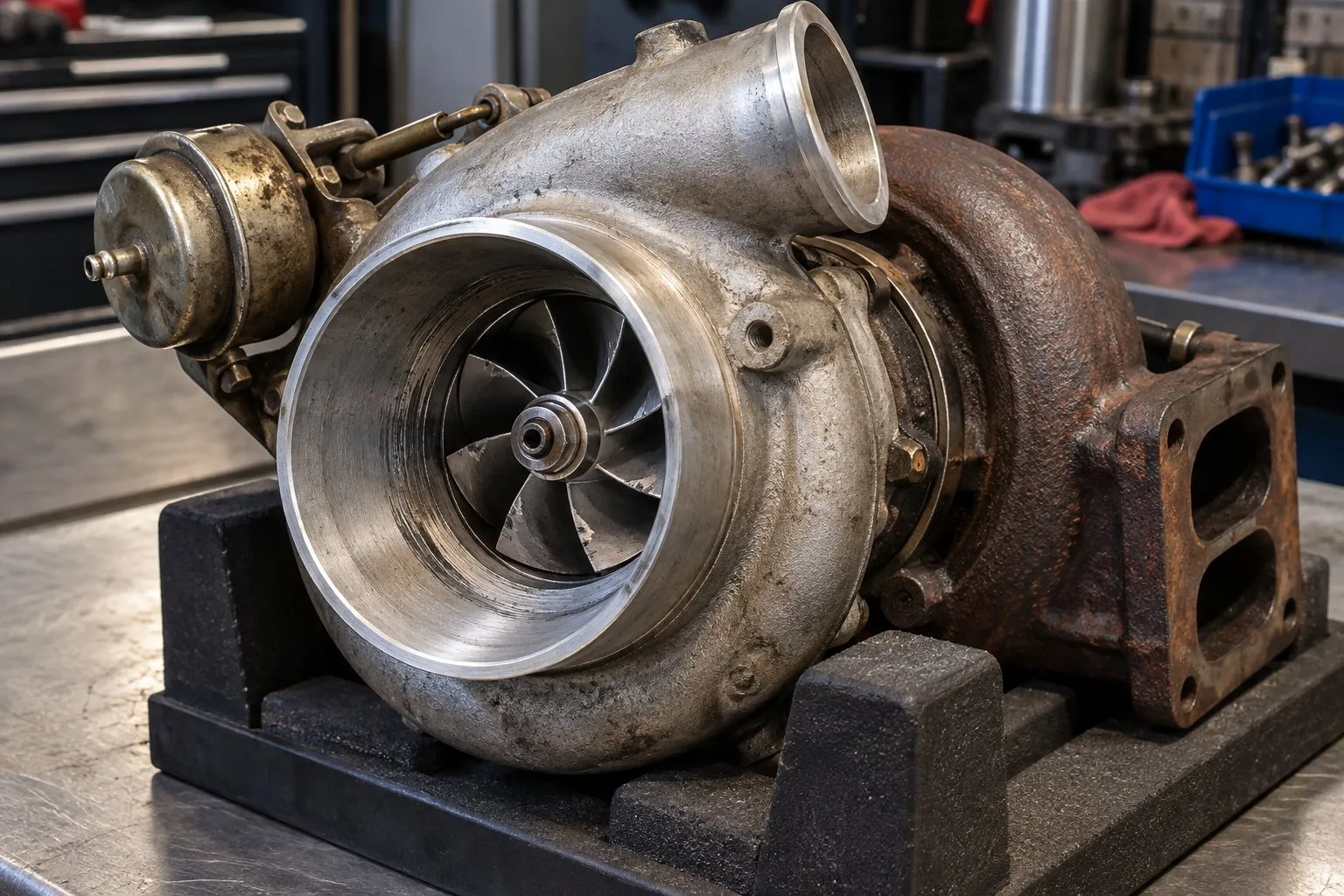

Check shaft play first. Grab the compressor nut, push and pull axially, and rock the wheel radially. Excessive axial movement or wheel-to-housing contact means the CHRA needs a rebuild or replacement.
A stuck or leaking wastegate actuator is one of the most misdiagnosed T04B problems. Owners condemn the whole turbo when the actuator is the real culprit. That is a far cheaper fix, and it is worth ruling out before you pull the unit.
Actuators and Boost Control for T04B and Related Turbos
Boost control on T-Series and later Garrett turbos comes down to a healthy pneumatic actuator holding the correct spring pressure. When the diaphragm cracks or the rod seizes, boost either overshoots or never reaches spec. Replacing the actuator restores factory boost behavior without touching the CHRA.
PT Turbo stocks genuine Garrett actuators for a wide range of applications. If you are chasing a boost fault or refreshing an actuator during a rebuild, these are the units to know:
- Garrett Pneumatic Actuator 757979-5102, available from PT Turbo for $240.94, view the Garrett Pneumatic Actuator 757979-5102 here.
- Garrett Pneumatic Actuator 757979-0002, available for $248.75, view the Garrett Pneumatic Actuator 757979-0002 here.
- Garrett Pneumatic Actuator 445963-0040, available for $465.52, view the Garrett Pneumatic Actuator 445963-0040 here.
Always confirm the spring rate and rod length against your original actuator before installing. An actuator with the wrong preload will throw off your boost curve even if it physically bolts on. If you are unsure which fits your setup, contact our team with your turbo part number and we will match it.
New vs Remanufactured Garrett T04B Turbocharger Options
Sourcing a brand-new T04B in original form is getting harder as the frame ages out of production. That leaves three practical paths: a new-production equivalent, a professionally remanufactured unit, or rebuilding the turbo you already have.
| Option | Typical Cost Range | Best For |
|---|---|---|
| New-production equivalent | $900 to $1,600 | Fleets needing maximum service life |
| Remanufactured T04B | $450 to $850 | Best value with warranty coverage |
| Rebuild your existing unit | $300 to $600 | Preserving original fitment and housings |
For most owner-operators and equipment owners, a remanufactured turbocharger hits the sweet spot. Every reman unit gets a new CHRA, balanced rotating assembly, fresh seals, and bench testing before it ships.
If your original housings are in good shape and you want to keep exact fitment, our turbocharger rebuild service restores your core to spec. This is often the smartest route for older machinery where housing casting numbers matter for bolt-up.
Fitment, Cross-Reference, and Modern Upgrade Paths
The T04B’s biggest strength today is its adaptability. The T04 flange pattern and compressor housing options make it a candidate for hybrid builds, where a modern compressor wheel improves efficiency without changing the mounting.
When cross-referencing, always verify these five details before ordering:
- Turbine housing A/R ratio and flange type
- Compressor housing outlet size and clocking
- Oil inlet and drain orientation
- Wastegate configuration (internal vs external)
- Original Garrett part number stamped on the CHRA
Emissions-era engines add another layer. If your platform runs exhaust gas recirculation or a downstream diesel particulate filter, a mismatched turbo can trigger backpressure and regeneration faults. For those applications, matching original boost behavior matters as much as raw airflow.
Not every diesel is a candidate for a simple T04B refresh. Newer trucks often use variable-geometry designs instead, like the setup covered in our Duramax LLY GT3788V
Cross-Reference & Superseded Part Numbers
The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:
408077-5102S • 408105-5047S • 408105-5111S • 408105-5112S • 408105-5115S • 408105-5148S • 408105-5174S • 408105-5207S • 408105-5215S • 408105-5348S • 408105-5383S • 409250-5002S • 409300-5031S • 409410-5006S • 409570-5016S • 409770-5019S • 409930-5003S • 445963-0040 • 446131-0011 • 446131-0023 • 446131-0042 • 446131-0046 • 446131-0048 • 451764-0003 • 451764-0015 • 451764-0025 • 451764-0036 • 451764-0039 • 451764-0041 • 451764-0045 • 451764-0050 • 452603-0001 • 452603-0002 • 452603-0010 • 452603-0022 • 452603-0031 • 452603-0045 • 452603-0048 • 452603-0049 • 452603-0051 • 452603-0052 • 452603-0058 • 452603-0062 • 452603-0066 • 452603-0069 • 452603-0070 • 465242-5001S • 465242-5002S • 465242-9002S • 465366-5018S • 465590-5005S • 465960-5015S • 709167-5001S • 712921-0070 • 712921-0089 • 716991-0001 • 729592-0005 • 729592-0006 • 729592-0008 • 750685-0017 • 750685-0019 • 750686-0019 • 750686-0020 • 757979-0002 • 757979-5102 • 836026-5006S • PTT-C30-020 • PTT-C30-025 • PTT-HSG-053 • PTT-HSG-054 • PTT-HSG-145 • PTT-HSG-165 • PTT-HSG-278 • PTT-S60-002 • PTT-SUB-096 • PTT-SUB-100 • PTT-SUB-105 • PTT-TBO-003 • PTT-TBO-023 • PTT-TBO-067 • PTT-TBO-107 • PTT-TBO-185 • PTT-TBO-450 • PTT-TBO-455 • PTT-TBO-465 • PTT-TBO-490 • PTT-TBO-495 • PTT-TBO-602 • PTT-TBO-604 • PTT-TBO-607 • PTT-TBO-612 • PTT-TBO-614 • PTT-TBO-617 • PTT-TBO-618 • PTT-TBO-620 • PTT-TBO-752 • PTT-TBO-753 • PTT-TBO-763 • PTT-TBO-764 • PTT-TBO-769 • PTT-TBO-770 • PTT-TBO-794 • PTT-TBO-795 • PTT-TBO-817 • PTT-TBO-818 • PTT-TBO-826 • PTT-TBO-828 • PTT-TBO-840 • PTT-TBO-841 • PTT-TBO-849 • PTT-TBO-851 • PTT-TBO-889 • PTT-TBO-890 • PTT-TBO-898 • PTT-TBO-899 • PTT-TBO-911 • PTT-TBO-915 • PTT-TBO-916 • PTT-TBO-B34 • PTT-TBO-B35 • PTT-TBO-C15 • PTT-TBO-C16 • PTT-TBO-F83 • PTT-TBO-F84 • PTT-TBO-G27 • PTT-TBO-J48 • PTT-TBO-J80 • PTT-TBO-J81 • PTT-TBO-M19 • PTT-TBO-M20 • PTT-TBO-N23 • PTT-TBO-N24 • PTT-TBO-R94 • PTT-TBO-R95 • PTT-TBO-R96 • PTT-WGT-037 • PTT-WGT-108
Can’t find your number above? Contact PT Turbo — our team has been matching part numbers since 1978.
