Welcome to the PT Turbo Mercedes OM642 Turbocharger Guide, a straight-shooting technical resource for anyone diagnosing, replacing, or rebuilding the turbo on Mercedes-Benz’s 3.0L V6 diesel. Whether you’re wrenching on a Sprinter van running a delivery fleet or a GL350 that’s lost its low-end pull, this is the practical information you need to get the job done right the first time.
The OM642 has powered a huge swath of Mercedes and Dodge/Freightliner diesel vehicles since 2005. It’s a durable engine, but the turbocharger system and its actuator are common failure points once these engines cross 120,000 miles. Knowing what fails, why, and how to fix it saves you real money.
OM642 Engine and Turbocharger Overview
The OM642 is a 3.0-liter, 72-degree V6 turbodiesel with a single variable-geometry turbocharger (VGT) mounted in the valley of the V. Output ranges from roughly 188 hp in early Sprinters to 258 hp in later BlueTEC passenger cars.

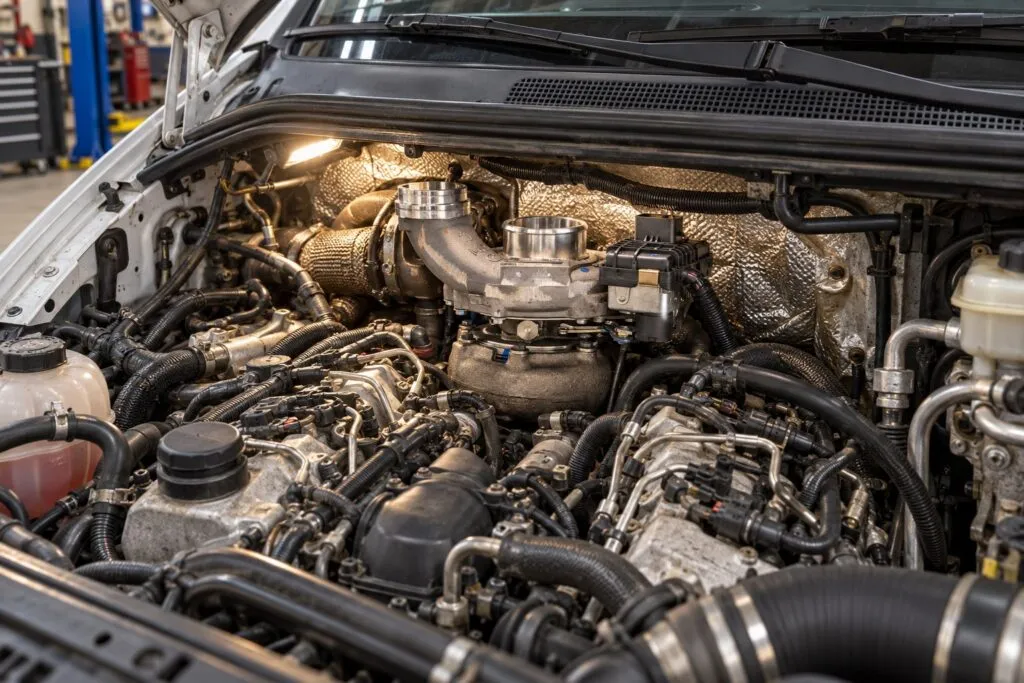

Because the turbo sits in the engine valley under the intake, it runs hot and is a pain to access. That heat load is exactly why the pneumatic actuator and vane mechanism wear out over time.
The factory turbo on most OM642 applications is a Garrett GTB2056V or GT2056V variant. The variable-geometry turbocharger uses movable vanes to optimize exhaust flow across the RPM range, giving strong low-end torque and quick spool.
Common OM642 Applications
| Vehicle | Years | Approx. Power | Notes |
|---|---|---|---|
| Sprinter 2500/3500 (NCV3) | 2007–2018 | 188 hp / 325 lb-ft | Highest-mileage, most turbo replacements |
| E320 / E350 BlueTEC (W211/W212) | 2007–2016 | 210–255 hp | Actuator failure very common |
| ML350 BlueTEC (W164/W166) | 2009–2015 | 240 hp | Oil feed line clogging issues |
| GL350 BlueTEC (X164/X166) | 2010–2016 | 240 hp | Heavy vehicle, hard on turbo |
| R350 BlueTEC | 2007–2012 | 210 hp | Shares most parts with ML |
Symptoms of a Failing OM642 Turbocharger
The OM642 rarely suffers a catastrophic, instant turbo failure. Instead you get a slow decline as the vane mechanism gums up with soot and the pneumatic actuator loses its ability to move the vanes accurately.
Learn to read the symptoms by severity so you don’t throw parts at the wrong problem.
| Severity | Symptoms | Likely Cause |
|---|---|---|
| Early | Sluggish low-end, slight lag, occasional limp mode on hills | Sticking vanes, actuator drifting out of calibration |
| Moderate | Recurring limp mode, P0299 underboost or P2563 actuator range codes, whistle | Actuator failure, vane linkage wear |
| Severe | Blue/black smoke, oil in intercooler piping, loud grinding or metallic whine | Failed shaft bearings, seal failure, oil starvation damage |
Fault codes P0299, P2563, and P004F are the most common OM642 turbo-related trouble codes. P2563 specifically points at the turbo boost control position sensor circuit, which usually means the actuator, not the whole turbo.

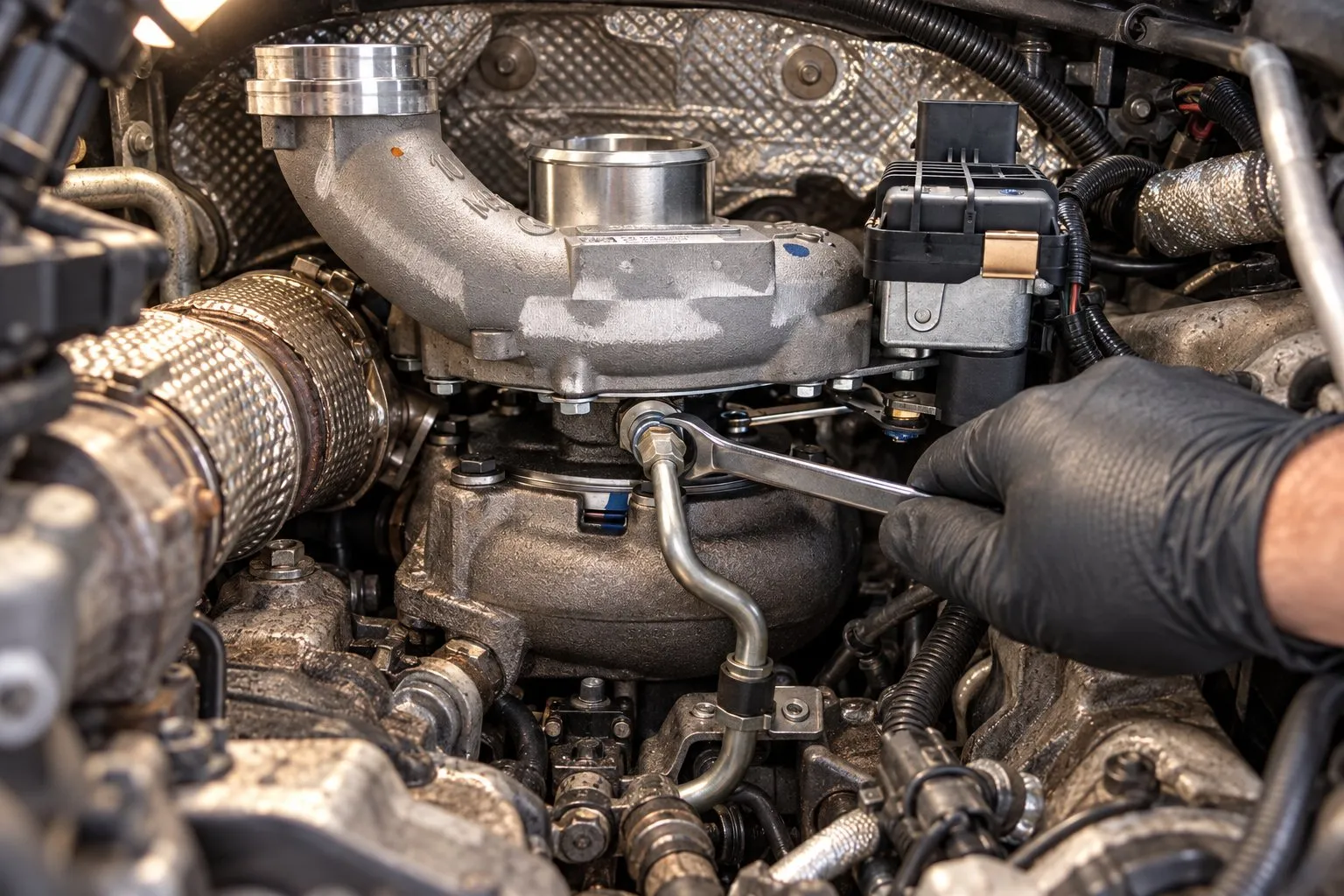

Don’t Overlook the Oil Feed Line
On ML350 and GL350 models especially, the turbo oil feed line clogs with carbon and restricts oil flow to the bearings. Replacing a turbo without replacing this line will kill the new unit. Always renew the feed line and inspect the return line when you do a turbo job.

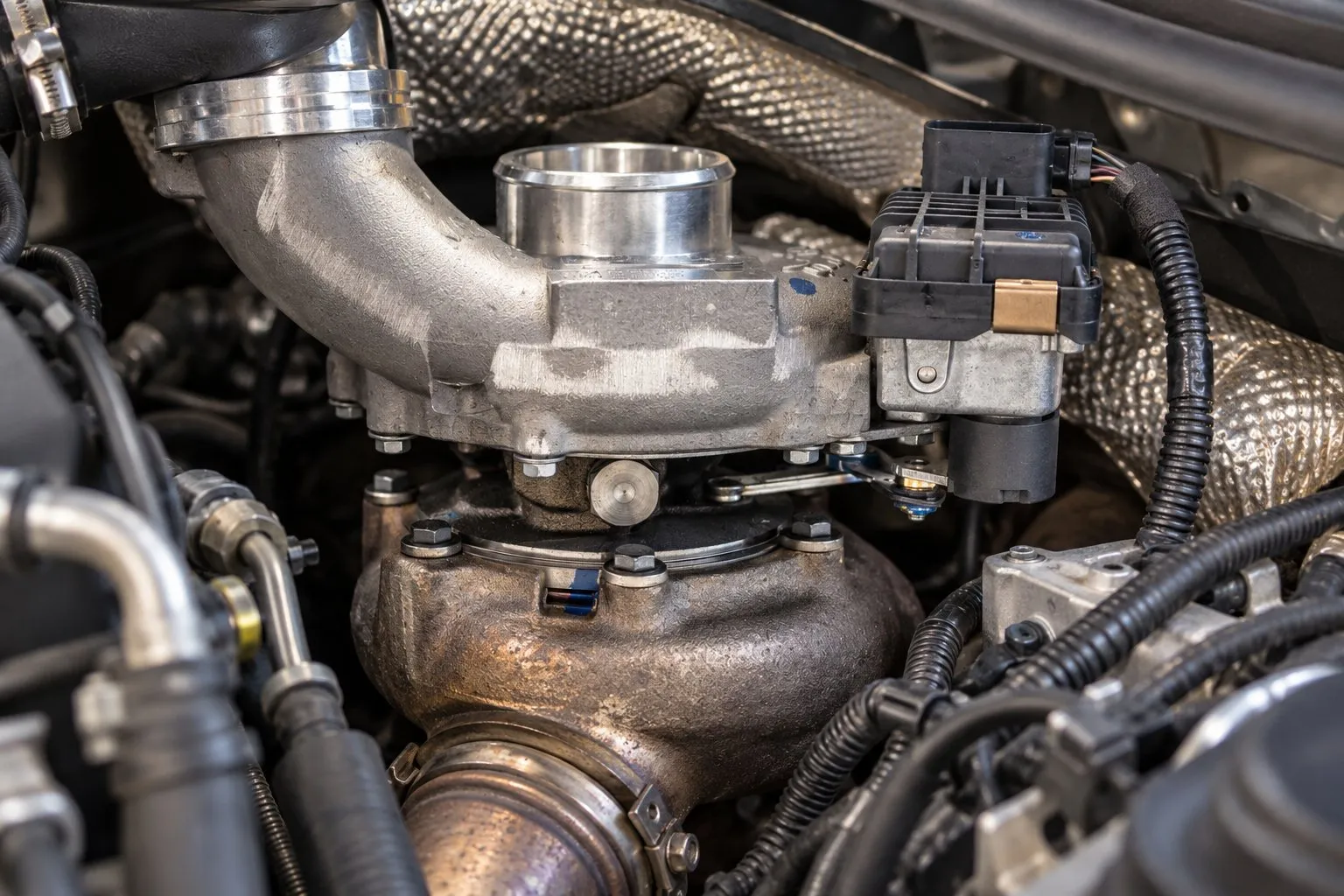

The Actuator: The Most Common OM642 Failure Point
Here’s the good news that saves OM642 owners thousands of dollars: most “bad turbo” complaints on this engine are actually a failed pneumatic actuator, not a failed turbo core. The actuator controls the VGT vane position, and when it drifts out of range or seizes, the ECU throws underboost codes and drops the engine into limp mode.
Before you condemn a full turbocharger, test and replace the actuator. A quality replacement actuator is a fraction of the cost of a complete turbo and the vane mechanism inside the OM642 core is often perfectly serviceable.
PT Turbo stocks the correct pneumatic actuators for OM642 and related Garrett and Mitsubishi platforms:
- Garrett Pneumatic Actuator 757979-5102, available from PT Turbo for $240.94, view the Garrett Pneumatic Actuator 757979-5102 here.
- Garrett Pneumatic Actuator 445963-0040, a heavier-duty Garrett unit at $465.52, view the Garrett Pneumatic Actuator 445963-0040 here.
- Mitsubishi Turbocharger Pneumatic Actuator TD03 49S3118761 for $104.33, view the Mitsubishi TD03 actuator 49S3118761 here.
- Mitsubishi Pneumatic Actuator 4918918935, the most affordable option at $83.99, view the Mitsubishi Pneumatic Actuator 4918918935 here.
Confirm your exact turbo part number and casting before ordering. Actuators are calibrated to a specific vane setup, and installing the wrong one will not resolve your codes. If you’re unsure which unit matches your build, contact PT Turbo with your VIN and turbo casting number and our team will match it.
Replacement Options: New, Remanufactured, or Rebuild
Once you’ve confirmed the core itself is bad, you have three real paths. Each has a place depending on your budget and how long you plan to keep the vehicle.
| Option | Typical Cost | Best For | Warranty |
|---|---|---|---|
| New OEM Garrett | $1,400–$2,200 | Fleets, low-downtime priority | Full factory |
| Remanufactured | $650–$1,100 | Best value for most owners | Typically 1 year |
| Rebuild your core | $400–$700 | Rare or hard-to-source castings | On labor/parts done |
| Actuator only | $84–$466 | Confirmed actuator fault, good core | Part warranty |
For most OM642 owners, a remanufactured turbocharger is the sweet spot. A properly remanufactured unit gets new bearings, seals, a balanced CHRA, and a fresh or rebuilt vane mechanism, so you’re getting near-new reliability at a big discount over OEM.
If your casting is uncommon or you want to keep your matched-numbers unit, our turbocharger rebuild service restores your existing core to spec on a balancing machine. PT Turbo has been rebuilding turbos for over 45 years, and every unit is VSR balanced before it leaves the shop.
OM642 Turbo Replacement Tips From the Bench
This is not a beginner job, but it’s manageable with the right prep. A few field notes that separate a clean install from a comeback:
- Budget several hours. On ML/GL models the intake and EGR plumbing must come off to reach the turbo in the valley.
- Always replace the oil feed line and both gaskets. Clogged feed lines are the number one cause of repeat failure.
- Clean the EGR system and intake while you’re in there. Excessive exhaust gas recirculation soot buildup is what stuck the vanes in the first place.
- Prime the new turbo with clean oil at the feed port and crank without starting to build oil pressure before firing it up.
- Check your diesel particulate filter for excessive backpressure, since a clogged DPF increases load on the turbo and masks boost problems.
- After install, some scan tools require an actuator calibration or adaptation reset for the ECU to relearn vane position.
Torque all exhaust fasteners to spec and use anti-seize on the manifold studs. These fasteners live in extreme heat and will fight you at the next service if you don’t.
