Mercedes Sprinter Turbocharger Replacement Guide: 2.1L & 3.0L CDI Applications by Year

This Mercedes Sprinter Turbocharger Replacement Guide covers the 2.1L and 3.0L CDI engines that have powered Sprinter vans, cab-chassis units, and RV platforms across three generations. Whether you run a single delivery van or manage a fleet, knowing exactly which turbo, actuator, and part number fits your VIN year saves days of downtime and hundreds in guesswork. PT Turbo has been rebuilding and supplying turbochargers since 1978, so the specs below come from real bench experience, not a catalog copy-paste.

The Sprinter uses variable geometry turbochargers (VGTs) on nearly every diesel it has offered. That means when performance drops, the failure point is often the actuator or the vane mechanism, not always the core itself. Diagnosing the difference is where you save money.

Sprinter Turbocharger Applications by Engine and Year

Mercedes has run two main diesel families in the Sprinter for North America: the 5-cylinder OM612/OM647 3.0L in early models, the 6-cylinder OM642 3.0L V6 from 2007 forward, and the 4-cylinder OM651 2.1L twin-turbo starting in 2014. Each uses different turbo hardware.

Model Years	Engine	Displacement	Turbo Type	Common Manufacturer
2002-2006 (T1N)	OM612 / OM647	2.7L 5-cyl	Single VGT	Garrett GT2256V
2007-2018 (NCV3)	OM642	3.0L V6	Single VGT	Garrett GTB2260VK
2014-2018 (2.1L)	OM651	2.1L 4-cyl	Sequential twin-turbo	Garrett / Mitsubishi
2019+ (VS30)	OM642 / OM654	3.0L V6 / 2.0L	Single or twin VGT	Garrett

The 2.1L OM651 setup is the trickiest. It runs a small high-pressure turbo and a larger low-pressure turbo in sequence. When customers report lag at low RPM but strong top-end pull, the small turbo actuator is usually the culprit. When they lose top-end boost, look at the large turbo.

How to Read the Symptoms Before You Pull the Turbo

Most Sprinter turbo complaints trace back to one of four issues. Do not condemn a $1,200 core when a $100 actuator will fix it. Here is how the failures line up by severity.

Symptom	Likely Cause	Severity	Typical Fix
Limp mode, P0299 underboost	Sticking vanes or failed actuator	Moderate	Actuator or vane cleaning
Whistle or surge under load	Boost leak or worn vane ring	Moderate	Inspect, reman turbo
Blue smoke, oil in intake	Failed seals, worn bearings	Severe	Rebuild or replace
Grinding, shaft play	Bearing failure, contact damage	Critical	Replace immediately

The P0299 code is the single most common Sprinter turbo fault. On the OM642 and OM651, carbon builds up in the VGT vane mechanism and the actuator can no longer sweep it fully. A stuck actuator throws the same code as a dead one, so test the sweep before ordering parts.

If you are new to how variable geometry works, this overview of variable-geometry turbochargers explains why vane position controls boost across the entire RPM range.

Mercedes Sprinter Turbocharger Replacement Guide: Actuator Options

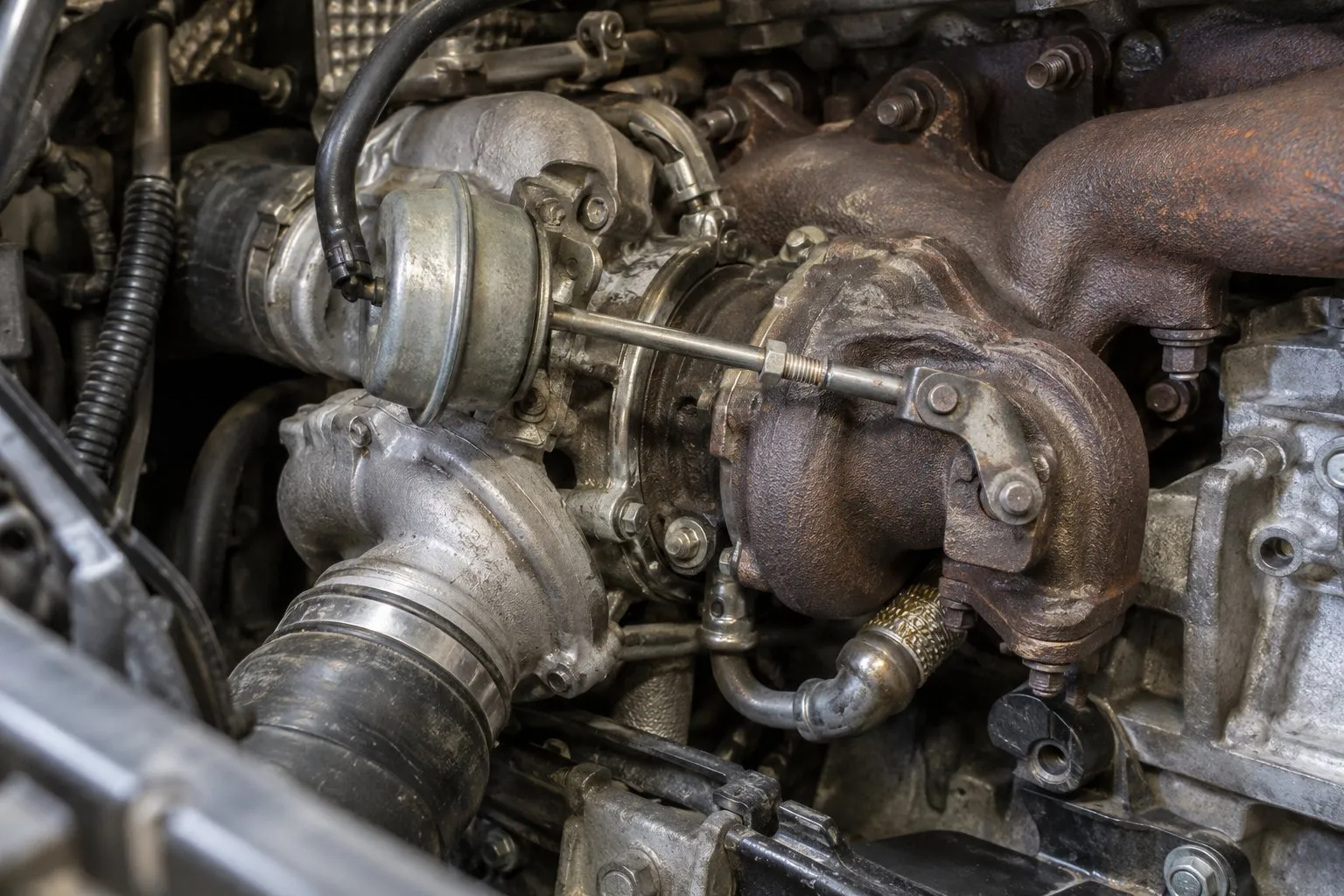

The pneumatic actuator is the part that moves the VGT vanes. On many Sprinter jobs, replacing the actuator restores full boost without touching the turbo core. PT Turbo stocks direct-fit pneumatic actuators for both Garrett and Mitsubishi Sprinter applications.

Garrett Actuators

For Garrett-based VGT units common on the 3.0L V6 and later builds, the Garrett Pneumatic Actuator 757979-5102 is a proven replacement. It is available from PT Turbo for $240.94, view the Garrett Pneumatic Actuator 757979-5102 here.

For higher-output Garrett applications that need a heavier-duty actuator, the Garrett Pneumatic Actuator 445963-0040 handles the load. It runs $465.52, view the Garrett Pneumatic Actuator 445963-0040 here. Match the part number to your turbo casting, not just the engine, because Garrett revised actuator geometry across production runs.

Mitsubishi TD03 Actuators

The 2.1L twin-turbo layout frequently pairs a Mitsubishi TD03 small turbo with the larger unit. For that small high-pressure turbo, the Mitsubishi Turbocharger Pneumatic Actuator TD03 49S3118761 is the correct fit at $104.33, view the Mitsubishi TD03 actuator 49S3118761 here.

Another common Mitsubishi replacement is the Pneumatic Actuator 4918918935, priced at $83.99, view the Mitsubishi Pneumatic Actuator 4918918935 here. Both bolt on with the factory linkage, but they must be calibrated to the correct vane end-stop after install or you will chase the same underboost code.

New, Remanufactured, or Rebuild: Choosing the Right Path

Once you have confirmed the core is bad, you have three routes. Each makes sense in different situations, and the right call usually comes down to lead time and budget.

Option	Typical Cost Range	Lead Time	Best For
New OEM turbo	$1,400 – $2,400	Same day if stocked	Warranty fleets, latest revision needed
Remanufactured turbo	$700 – $1,300	Same day if stocked	Best value, proven reliability
Rebuild your core	$400 – $800	2 – 5 days	Rare part numbers, keeping matched hardware

For most owner-operators, a remanufactured Sprinter turbocharger is the sweet spot. A properly reman VGT is disassembled, cleaned, fitted with new bearings and seals, and balanced on a VSR machine to OEM tolerance. That is not a cosmetic refresh, it is a full mechanical restoration.

If your turbo carries a hard-to-find casting or you want to keep the exact hardware your ECU is calibrated to, our turbocharger rebuild service returns your original unit to spec. This is often the fastest route for older T1N cores that are getting scarce in the reman pool.

Installation Notes That Prevent Repeat Failures

A Sprinter turbo rarely fails for no reason. If you install a fresh unit without addressing the root cause, you will be back under the van in a month. Work through these before you finish the job.

• Prime the oil feed. Fill the new turbo with clean oil and crank with the fuel disabled to build pressure before first start.
• Inspect the oil feed line. Carbon-clogged feed lines starve the bearings and are the number one cause of premature turbo death on the OM642.
• Check the EGR system. A failing EGR cooler dumps soot into the intake and accelerates vane fouling. Review how exhaust gas recirculation loads the intake tract.
• Verify the DPF is not restricted. High backpressure from a plugged diesel particulate filter overworks the turbo and skews boost readings.

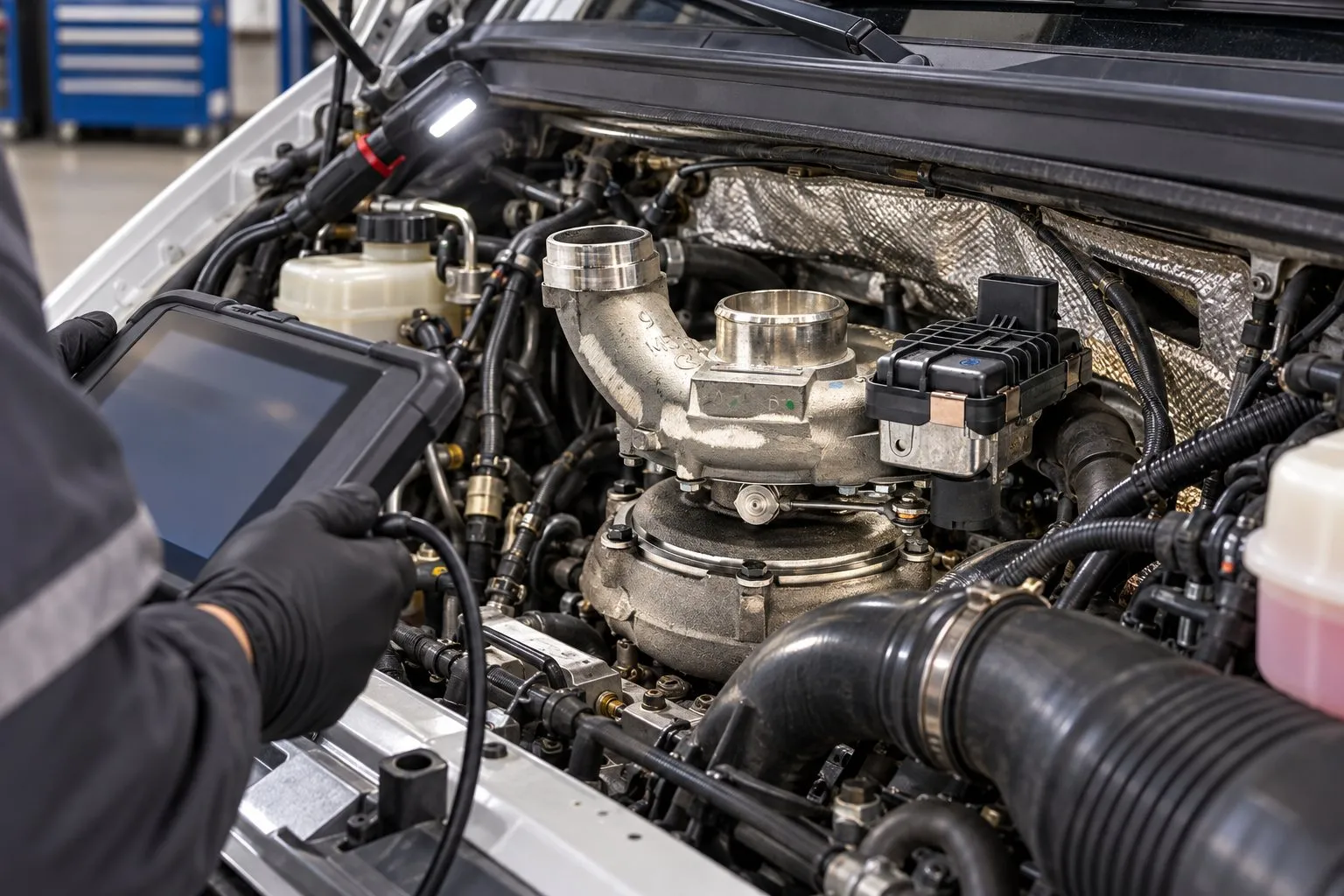

• Perform actuator calibration. The OM642 and OM651 require a guided actuator adaptation with a scan tool after replacement.

Torque the oil drain and coolant lines to spec and use fresh gaskets. A weeping drain will pressurize the center housing and push oil past the seals, mimicking a failed turbo when the part is actually fine

Cross-Reference & Superseded Part Numbers

The turbochargers covered in this article match or supersede the following OEM and manufacturer part numbers. If you are searching by part number, these are the units stocked by PT Turbo for this application:

10009880074  •  172-784-0004  •  172-784-0090  •  172-784-0130  •  172-784-0578  •  53039887004  •  53049880057  •  53249886705  •  53279880004  •  53279880007  •  53279880012  •  53279880014  •  53279880020  •  53279880022  •  53279886206  •  53279886425  •  53279886441  •  53279886444  •  53279886507  •  53279886533  •  53279886534  •  53279887101  •  53279887115  •  53279887118  •  53279887120  •  53279887160  •  53279887161  •  53279887163  •  53279887192  •  53279887196  •  53279887206  •  53279887208  •  53279887210  •  53319886911  •  53319887137  •  53319887147  •  53339886403  •  53339886429  •  53339887001  •  53369886703  •  54399880049  •  56409880017  •  56419880001  •  56419880016  •  57509900000  •  709838-5006S  •  709838-9006S  •  729546-5002S  •  736088-5006S  •  761154-5007S  •  765155-5008S  •  765155-9007W  •  777318-5002W  •  777318-5003W  •  777318-9003W  •  778794-5002S  •  802774-5008S  •  817280-5001S  •  827052-5002S  •  827053-5001S  •  827054-5002S  •  827056-5001S  •  828375-0001  •  832808-0001  •  952201-5001S  •  F41CAY-S0091B  •  F41CAY-S0103B  •  F41CAY-SR057B  •  F41CAY-SR061B  •  F41CAY-SR073B  •  F41CAY-SR074B  •  F41CAY-SR075B  •  F41CAY-SR076B  •  F41CEY-SR082B  •  F43VAY-S0094B  •  JT12337  •  JTC11010  •  JTC11033  •  JTC11039  •  JTC11068  •  JTC11191  •  JTC11207  •  JTC11305  •  JTC11323  •  JTC11369  •  JTC11399  •  JTC11403  •  JTC11434  •  JTC11478  •  JTC11555  •  JTC11597  •  JTC11720  •  JTC11781  •  JTC11847  •  JTC11849  •  JTC11850  •  JTC11851  •  JTC11854  •  JTC11949  •  JTC12246  •  V30VEY-SR021B  •  V41VEY-SR020B  •  V41VEY-SR025B

Can’t find your number above? Contact PT Turbo — our team has been matching part numbers since 1978.
