BorgWarner B2 CHRA: What It Fits and When to Replace vs Full Turbo

/ Turbocharger Tech Explained / By

The BorgWarner B2 CHRA is one of those parts that quietly keeps thousands of medium-duty diesels on the road, and knowing when to swap just the cartridge versus the whole turbo can save you hundreds of dollars per job. The CHRA, or center housing rotating assembly, is the heart of any turbocharger. It carries the compressor wheel, turbine wheel, shaft, bearings, and seals in a single balanced unit. When that core wears out, you have a decision to make: replace the cartridge or replace the entire turbo.

At PT Turbo, we have been rebuilding and supplying turbochargers since 1978. That is 45-plus years of hands-on experience telling us exactly when a CHRA swap is the smart call and when it is a false economy. This guide breaks down what the B2 frame fits, how to diagnose a failing core, and how to weigh a cartridge against a complete replacement.

What Is the BorgWarner B2 CHRA?

The B2 is a frame size within BorgWarner’s turbocharger lineup, sitting on the smaller end of their commercial and light commercial range. It is commonly found on 2.0L to 4.0L diesel and gasoline applications, including European passenger diesels, light commercial vans, and small industrial engines.

The CHRA itself is the rotating guts of the unit. Order a genuine BorgWarner B2 cartridge and you get a factory-balanced core ready to drop between your existing turbine and compressor housings. That means you reuse the housings you already have bolted to the engine.

A CHRA replacement makes sense when the wear is confined to the rotating assembly. If the housings are cracked, warped, or the actuator system has failed, you are looking at a larger repair. We will get into that distinction below.

What the B2 Frame Typically Includes

  • Center bearing housing with journal or ball bearings
  • Balanced shaft and turbine wheel assembly
  • Compressor wheel
  • Piston ring seals and thrust components
  • Pre-set balance from the factory or a professional rebuild shop

For a deeper primer on how all these pieces work together, the turbocharger overview on Wikipedia is a solid technical reference.

Common Symptoms of a Failing B2 CHRA

A worn cartridge shows itself in predictable ways. Catch it early and you often save the housings and the engine from oil contamination or debris ingestion.

The table below groups symptoms by severity so you can gauge how urgent the repair is.

Severity Symptom Likely Cause
Early Faint whistle or whine that changes with RPM Bearing wear, minor shaft play
Early Slight blue smoke on startup Seal seepage on the turbine or compressor side
Moderate Oil in the intake or intercooler piping Failed piston ring seals
Moderate Noticeable loss of boost and power Worn wheels, excessive clearances
Severe Grinding or metal-on-metal contact noise Shaft riding the housing, imminent failure
Severe Excessive shaft end-play or radial play by hand Bearing failure, cartridge past service life

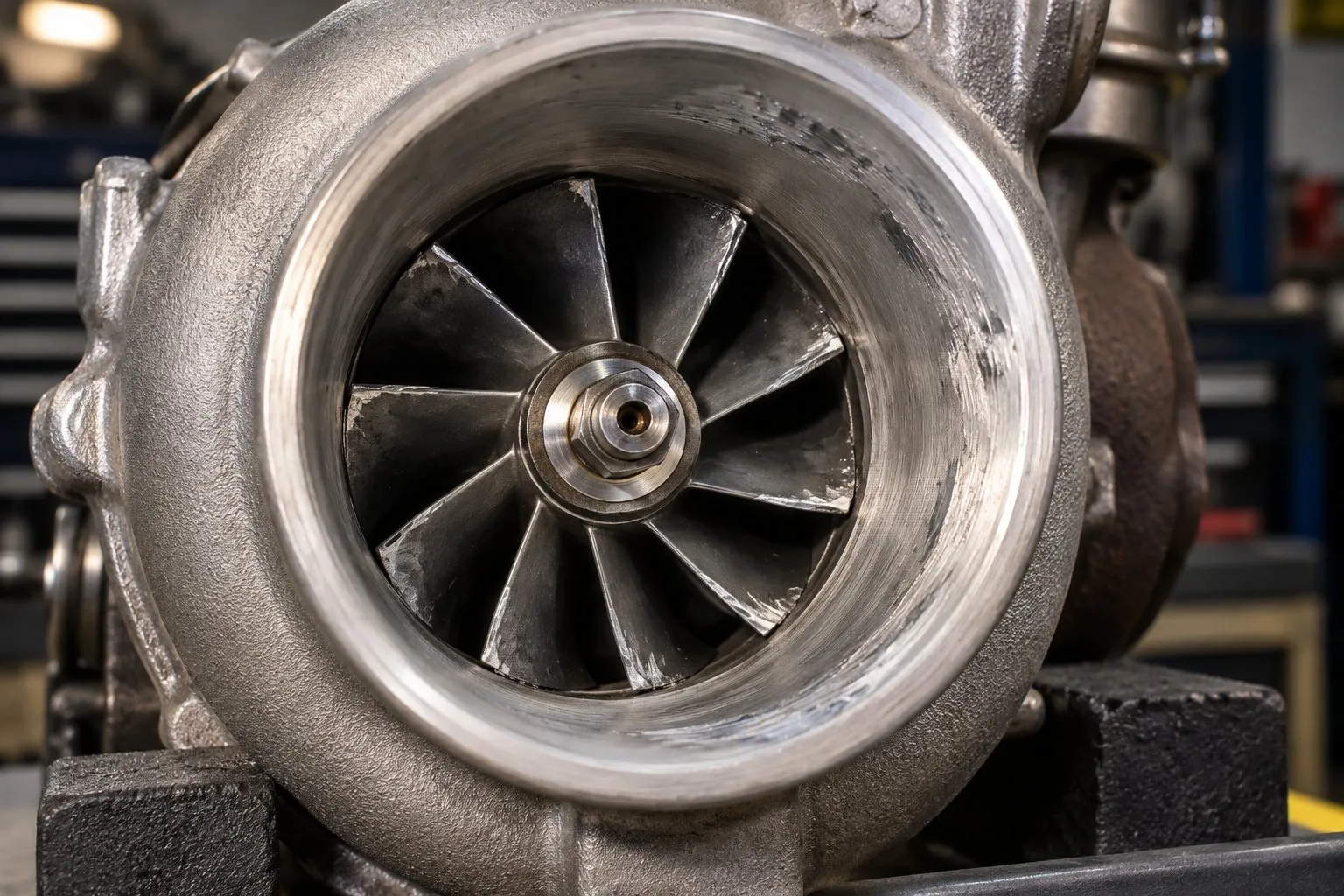

If you can wiggle the shaft and feel it kiss the housing, stop running the engine. A wheel strike sends aluminum or Inconel fragments straight into your intake or exhaust, and that turns a cartridge job into a full engine cleanup.

How to Check Shaft Play on a B2 CHRA

Pull the intake and exhaust ductwork. Grip the shaft nut and rock it side to side, then push and pull along the axis. Radial play should be minimal with no contact against the housing walls. Axial (end) play should be barely perceptible. Any grinding, gritty feel, or visible wheel contact means the cartridge is done.

CHRA Replacement vs Full Turbo Replacement

This is the question that decides your parts bill. A cartridge is cheaper, but it is not always the right move. Here is how we break it down at PT Turbo.

Replace the CHRA when: the housings are intact, the actuator and wastegate work correctly, and the failure is isolated to the rotating assembly. This is the most cost-effective repair and gets you a fresh, balanced core.

Replace the full turbo when: the turbine or compressor housing is cracked or heat-checked, the actuator has failed alongside the core, mounting flanges are warped, or the turbo has already suffered a catastrophic wheel strike that contaminated the housings.

Factor CHRA Only Full Turbo
Cost Lower Higher
Labor time More (reuse housings, reclock unit) Less (bolt-on complete)
Best for Good housings, isolated core wear Damaged housings or actuator failure
Warranty coverage Core assembly only Entire unit
Reclocking required Yes No

One thing crews often overlook: labor. A CHRA swap requires you to reclock the housings, torque the clamp bands to spec, and verify the actuator geometry. A complete remanufactured turbocharger arrives pre-clocked and ready to bolt on, which can offset the higher parts price when shop time is expensive.

Do Not Forget the Actuator

A fresh cartridge with a tired actuator is a false repair. On boost-controlled and variable-geometry turbos, the pneumatic actuator sets wastegate position or vane angle. If it sticks or leaks, you will chase boost faults even with a perfect core installed. For background on how vane control works, see the variable-geometry turbocharger reference.

We stock a full range of pneumatic actuators to match your rebuild. For Mitsubishi TD03 frame units, the Mitsubishi TD03 Pneumatic Actuator 49S3118761 runs $104.33, and the Mitsubishi Pneumatic Actuator 4918918935 is available for $83.99. Both are common on the small-frame diesels that share design DNA with the B2 platform.

For Garrett applications, we carry the Garrett Pneumatic Actuator 757979-5102 at $240.94, and the heavier-duty Garrett Pneumatic Actuator 445963-0040 for $465.52. Matching the correct actuator to your calibration is critical, so if you are unsure, contact our team with your part number and we will confirm fitment.

When to Choose a New vs Remanufactured B2 CHRA

New cartridges give you factory tolerances and full component life. Remanufactured cartridges deliver the same balanced performance at a lower price, and a quality reman uses new bearings, seals, and often new wheels. The difference is cost and lead time.

Our turbocharger rebuild service lets you send in your existing unit for a professional rebuild to OEM spec. Every core we build is balanced on a VSR machine and pressure tested before it ships. That is the standard we have held for over four decades.

  • Choose new when downtime is critical and the machine cannot wait, or when the application runs at the edge of its duty cycle.
  • Choose reman when budget matters and lead time allows, which covers most fleet and owner-operator scenarios.

Emissions-era engines add another wrinkle. If your platform runs EGR or a DPF, a poorly matched or worn turbo drives up soot loading and regen frequency. Understanding how EGR interacts with boost helps you avoid repeat failures after a rebuild.
