The IHI RHF4 Turbocharger is one of the most widely used small-frame turbos in the world, powering everything from light commercial vans and pickups to compact marine diesels and industrial gensets. Its compact housing, quick spool, and proven reliability have made it a favorite among manufacturers building engines in the 1.5L to 3.0L displacement range. At PT Turbo, we have been rebuilding and supplying units like this for over 45 years, so we know exactly where these turbos shine and where they need attention.
This guide breaks down the RHF4 family, the applications it serves, common failure points, and the parts you need to keep one running. Whether you manage a fleet of delivery vans or maintain a marine diesel, this is the practical information that matters.
What Is the IHI RHF4 Turbocharger?
IHI (Ishikawajima-Harima Heavy Industries) is a Japanese manufacturer that supplies OEM turbochargers to Ford, Mazda, Isuzu, Nissan, Mitsubishi, and numerous marine and industrial engine builders. The RHF4 sits in the smaller end of their lineup, designed for engines producing roughly 70 to 170 horsepower.
The “RHF” designation stands for the frame family, and the “4” indicates the frame size. You will find the RHF4 in both wastegated and variable-geometry (VGT) configurations depending on the application and emissions era. If you want a refresher on how variable geometry works, the variable-geometry turbocharger overview covers the fundamentals well.
Typical RHF4 specs look like this:
- Compressor wheel: 40mm to 45mm inducer
- Turbine wheel: 38mm to 42mm exducer
- Bearing system: Journal bearing, oil-cooled (some water-cooled variants for marine)
- Boost range: 14 to 22 psi depending on tune
- Control: Pneumatic wastegate actuator or electronic/pneumatic VGT
Common Light Commercial and Marine Applications
The RHF4 platform spread across dozens of engine families. Below are the applications we see most often on the bench.
| Application | Engine | Sector | Config |
|---|---|---|---|
| Isuzu N-Series / NPR | 4JJ1 3.0L | Light commercial truck | VGT |
| Ford Transit | 2.2L / 2.4L Duratorq | Van / commercial | VGT |
| Mazda BT-50 / Ford Ranger | WLC / WEC 2.5L | Light pickup | Wastegate / VGT |
| Nissan Navara / Cabstar | YD25 2.5L | Light commercial | VGT |
| Yanmar marine diesel | 4JH / 4LHA series | Marine propulsion | Water-cooled wastegate |
| Kubota / industrial gensets | V2403 / V3307 | Industrial power | Wastegate |
Marine variants are worth calling out. Salt water and constant load are brutal on turbochargers, so marine RHF4 units often use water-cooled center housings to survive prolonged high-temperature operation. If your work leans toward marine diesel, our Cummins QSB marine and industrial turbocharger guide covers larger displacement options in the same environment.
IHI RHF4 Turbocharger Failure Symptoms and Diagnosis
Small turbos work hard. The RHF4 spins fast and lives close to the exhaust manifold, so heat cycling and oil quality drive most failures. Here is how the symptoms break down by severity.
| Severity | Symptom | Likely Cause |
|---|---|---|
| Early | Slight lag, minor whistle | Boost leak, worn actuator diaphragm |
| Moderate | Blue smoke, oil in intercooler | Failing seals, clogged drain |
| Moderate | Sticking VGT vanes, limp mode | Carbon buildup, seized nozzle ring |
| Severe | Grinding, shaft play, no boost | Bearing failure, wheel contact |
| Severe | Overboost / underboost codes | Failed actuator or control system |
On VGT variants, sticking nozzle vanes are the number one complaint. Soot and unburned fuel bake onto the vane mechanism over time, especially on engines with heavy idle cycles or clogged EGR systems. A quick review of how exhaust gas recirculation feeds soot back into the intake explains why so many light commercial turbos carbon up.
Before condemning the cartridge, always check the actuator. A stretched diaphragm or a leaking vacuum line mimics a failed turbo and costs a fraction to fix.
Actuators: The Part That Fails First on the RHF4

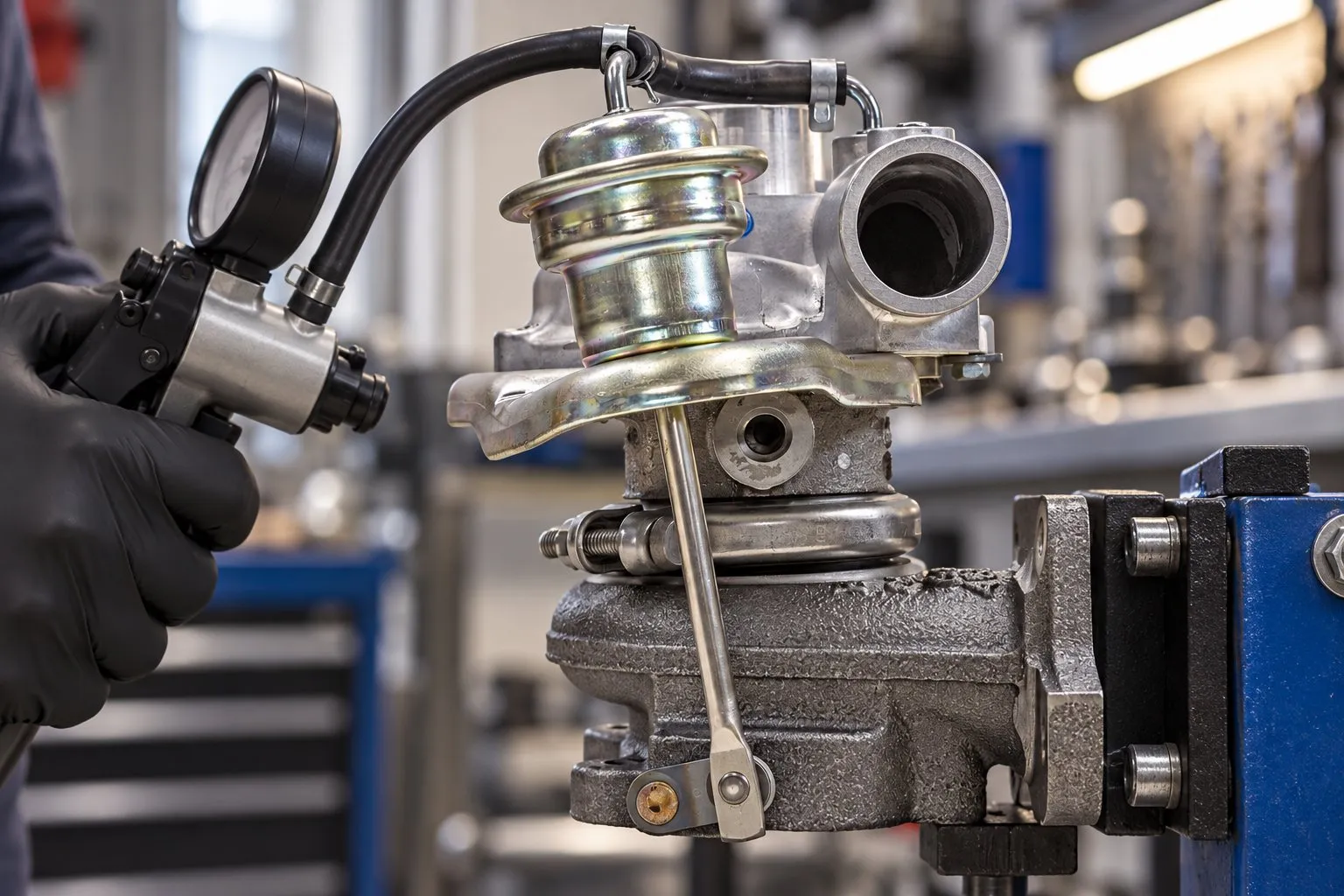

The pneumatic actuator controls wastegate position or VGT vane sweep. When the diaphragm fails or the calibration drifts, you get underboost, overboost, or a hard-coded limp mode. Replacing the actuator is often cheaper and faster than replacing the whole turbo, and it restores factory boost control.
PT Turbo stocks pneumatic actuators that fit the RHF4 family and its close relatives in the Mitsubishi TD03 and Garrett small-frame lines. Getting the right calibrated unit matters, because an uncalibrated actuator will never hold correct boost.
- Mitsubishi TD03 pneumatic actuator (49S3118761) for $104.33, view the Mitsubishi TD03 actuator here. This is a common cross-fit for light commercial diesels in the same output class.
- Mitsubishi pneumatic actuator (4918918935) for $83.99, view the Mitsubishi 4918918935 actuator here. A budget-friendly wastegate solution for smaller applications.
- Garrett pneumatic actuator (757979-5102) for $240.94, view the Garrett 757979-5102 actuator here. A precision-calibrated unit for VGT-style boost control.
- Garrett pneumatic actuator (445963-0040) for $465.52, view the Garrett 445963-0040 actuator here. A heavier-duty option for higher-boost commercial applications.
Not sure which actuator matches your part number and boost spec? Send us your turbo tag and we will confirm the fit before you buy. Reach out through the PT Turbo contact page.
Rebuild, Remanufacture, or Replace?
Because the RHF4 uses a journal-bearing center section, it rebuilds cleanly when the housings are still good. The economics usually favor a rebuild or a reman over a brand-new OEM unit, especially on older applications where new turbos are expensive or discontinued.
| Option | Typical Cost | Best For |
|---|---|---|
| New OEM turbo | $700 to $1,500 | Warranty-critical fleet vehicles |
| Remanufactured turbo | $350 to $750 | Best value, proven reliability |
| Rebuild your core | $250 to $500 + labor | Good housings, matched-balance restore |
| Actuator only | $84 to $466 | Boost control fault, healthy cartridge |
A properly remanufactured RHF4 is balanced to OEM tolerances, fitted with new bearings, seals, and thrust components, and tested before it ships. Browse our remanufactured turbochargers or send in your unit for our turbocharger rebuild service. You can also shop all turbos to find your exact part number.
One rule we never break: do not reinstall a turbo without finding out what killed the last one. Oil starvation, contaminated oil, and a restricted drain line will destroy a fresh cartridge in days. Fix the root cause first.
Installation and Longevity Tips
The RHF4 is straightforward to install, but a few habits separate a turbo that lasts 150,000 miles from one that fails at 30,000.
- Prime the oil feed. Crank with the feed line loose or pre-fill the center housing before startup to avoid dry spin.
- Replace the oil feed line. A partially clogged feed line is the top killer of small journal-bearing turbos.
