Holset HE531VE Turbocharger: PACCAR MX-13 & Cummins ISX 15 Application Guide

The Holset HE531VE is the variable geometry turbocharger doing the heavy lifting on two of the most common Class 8 engines on the road today: the PACCAR MX-13 and the Cummins ISX15. If you run a fleet or wrench on big-bore diesels for a living, you’ve already seen these units come across the bench with sticking vanes, dead actuators, and shaft play that should never have made it out of the shop. This guide breaks down the HE531VE application, real specs, failure patterns, and what it actually costs to get a truck back on the road with a properly rebuilt unit.

What the HE531VE Is and Where It Lives

The HE531VE is a single-stage variable geometry turbocharger (VGT) built by Cummins Turbo Technologies (Holset). It uses a sliding-nozzle vane assembly to control exhaust gas flow across the turbine, giving you fast spool-up at low RPM and controlled boost at highway cruise. Unlike the pivoting-vane designs found on some competitors, Holset’s sliding ring architecture is famously durable when it’s kept clean, and famously stubborn when soot and carbon build up in the nozzle ring.

You’ll find the HE531VE bolted to two primary platforms:

• PACCAR MX-13 (12.9L) — powering Kenworth T680, T880, and Peterbilt 579/567 trucks from roughly 2013 onward, rated 405 to 510 HP depending on tune.
• Cummins ISX15 / X15 — the 15L workhorse behind millions of on-highway and vocational miles, rated 400 to 605 HP.

The electronically controlled variable geometry mechanism is the same core technology found on smaller Holset units like the pickup-truck HE351VE and HE300VG. If you want a refresher on how that sliding nozzle actually works, our HE351VE vs HE300VG comparison covers the mechanics in plain terms, and the same operating principles scale directly up to the HE531VE.

HE531VE Specifications at a Glance

Specification	HE531VE Detail
Manufacturer	Cummins Turbo Technologies (Holset)
Type	Single-stage variable geometry (sliding nozzle)
Primary applications	PACCAR MX-13, Cummins ISX15 / X15
Displacement served	12.9L to 15L
Horsepower range	400 to 605 HP
Actuator type	Electric / pneumatic VGT actuator (application specific)
Bearing system	Journal bearing, oil cooled
Common failure mode	Vane sticking, actuator fault, shaft play

The critical takeaway is that the turbine housing and nozzle ring geometry are tuned specifically to each engine platform. An HE531VE calibrated for an MX-13 is not a drop-in for an ISX15 without matching the correct part number and actuator calibration. Always verify the Holset and OEM part number stamped on the compressor housing before ordering.

Common HE531VE Failure Symptoms

The HE531VE fails in predictable ways, and most of them trace back to the variable geometry mechanism or the actuator that drives it. Here’s how the symptoms break down by severity so you can triage quickly before pulling the unit.

Severity	Symptom	Likely Cause
Early warning	Sluggish throttle response, low-end lag	Vanes starting to carbon up
Early warning	Occasional VGT fault codes, self-clearing	Actuator calibration drift
Moderate	Persistent check engine light, derate events	Actuator failure or stuck vanes
Moderate	Excessive black smoke under load	Vanes stuck open, low boost
Severe	Overboost, surging, or full engine derate	Vanes stuck closed, actuator seized
Severe	Whining, oil in charge pipe, blue smoke	Worn journal bearings, shaft play, seal failure

On both the MX-13 and ISX15, the fault codes most operators see involve turbocharger actuator position errors and boost pressure deviation. Before condemning the whole turbo, confirm whether the problem is the actuator or the cartridge. A dead actuator on an otherwise healthy unit is a far cheaper fix than a full replacement.

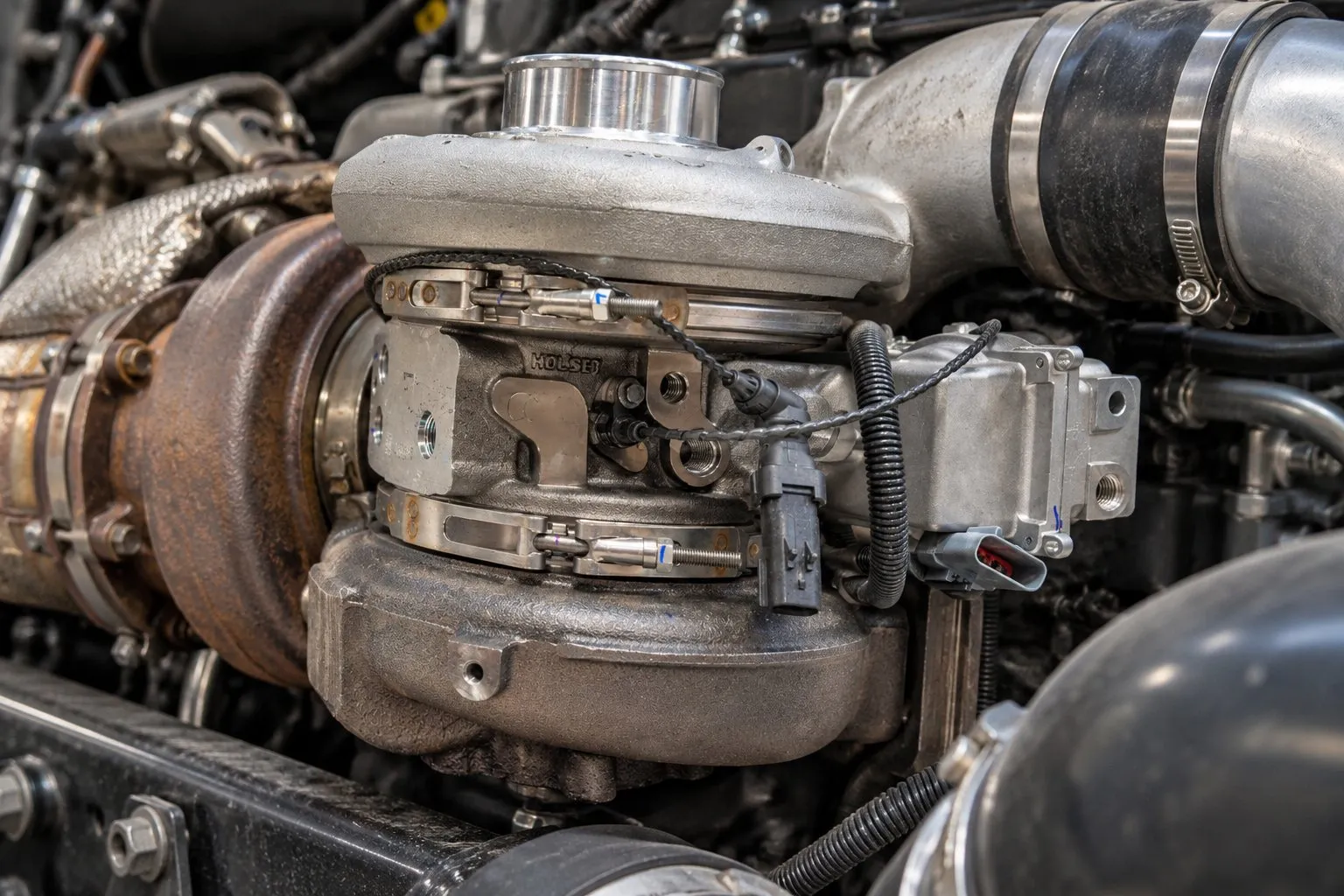

The Actuator: Where Most HE531VE Problems Start

The variable geometry actuator is the single most common failure point on any Holset VGT, and the HE531VE is no exception. Heat cycling, moisture intrusion, and constant duty cycling wear out the internal electronics and the diaphragm on pneumatic units. When the actuator can no longer hold or report vane position accurately, the ECM throws a code and often derates the engine to protect it.

The good news is that replacing the actuator is frequently all a truck needs. PT Turbo stocks a full range of pneumatic and electronic actuators for Holset, Garrett, and Mitsubishi units. A few of the actuators we keep on the shelf that fit related VGT and wastegate applications:

• Garrett Pneumatic Actuator 757979-5102, available from PT Turbo for $240.94, view the Garrett 757979-5102 actuator here.
• Garrett Pneumatic Actuator 445963-0040, a heavier-duty unit at $465.52, view the Garrett 445963-0040 actuator here.
• Mitsubishi TD03 Pneumatic Actuator 49S3118761 at $104.33, view the Mitsubishi TD03 49S3118761 actuator here.
• Mitsubishi Pneumatic Actuator 4918918935 at $83.99, view the Mitsubishi 4918918935 actuator here.

If you’re not certain which actuator matches your exact HE531VE part number and calibration, contact PT Turbo with the numbers off your unit and we’ll match it. Getting the wrong actuator calibration is a common and expensive mistake, and we’ve been sorting out exactly these kinds of applications since 1978.

Why Vanes Stick and How to Prevent It

Sticking vanes are the second-most common HE531VE complaint, and they’re almost always the result of operating conditions rather than a defect in the turbo itself. Short-haul stop-and-go duty cycles, extended idling, and poor-quality fuel all accelerate soot and carbon deposits in the nozzle ring. Once the sliding mechanism can’t move freely, the actuator either stalls or overworks itself into failure.

Preventing it comes down to a few habits:

• Run the engine up to operating temperature and load it periodically instead of chronic light-duty idling.
• Follow the OEM regen schedule and don’t defer active regens.
• Use quality diesel and change fuel filters on interval.
• Keep up with oil changes. Coked oil in the center housing kills bearings and shortens turbo life dramatically.

The same carbon-fouling dynamics affect every variable geometry Cummins turbo. Our deep dive on the Cummins ISB 6.7L variable geometry operation and common failures walks through the physics of vane fouling in detail, and it’s directly applicable to the larger HE531VE platform.

Replacement Options: New, Reman, or Rebuild

When an HE531VE is beyond an actuator swap, you have three real paths. Here’s how they stack up.

Option	Typical Cost Range	Best For
New OEM Holset	$2,400 to $3,600	Warranty-critical fleets, newest trucks
Remanufactured	$1,300 to $2,200	Best value for most operators
Rebuild your core	$800 to $1,600	Keeping your original matched unit

For most owner-operators and fleet managers, a quality remanufactured unit is the sweet spot. A proper reman restores the cartridge to OEM tolerances, replaces the bearings and seals, and tests the actuator and vane movement before it ships. Browse our remanufactured turbochargers to see current HE531VE and related Holset availability, or shop the full lineup on our turbo shop page.

If you want to keep your original numbered unit, our turbocharger rebuild service will disassemble, clean, inspect, and rebuild your HE531VE to spec with a fresh CHRA, balanced to under a gram. For fleets tracking core matching and warranty records, that’s often the cleanest option.

Whichever route you take, PT Turbo has stocked and rebuilt Holset units across more than 45 years in the business. We carry both new and remanufactured parts, so you’re not locked into one price point when a truck is down and losing money by the hour.

Cross-Platform Notes for Cummins Fleets

If you run a mixed fleet that includes light-duty Ram tr
