Holset HX40 Turbochargers
PT Turbo lists 58 complete turbochargers, 31 CHRA cartridges and 1 installation kit for the Holset HX40, with complete turbos from $532 to $2,335. Most fit Cummins engines, with others for MAN, Iveco, Mack and Renault. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Holset HX40 is
The HX40 is one of the first models of Holset’s HX range, which Holset began building in 1987 to replace its H Series. The plain HX40 numbers here are listed by Holset distributors as fixed-geometry turbos without an actuator (the wastegated version is the HX40W): for example 3535664H for the Cummins 6CT, 4033209H for 6CT-G2 generator sets and 4038429H for Komatsu bulldozers with the Cummins 6CTA; other HX40 numbers are listed for MAN engines.
This page lists complete HX40 turbos, CHRAs and an installation kit, each under its own part number; match the full number on your turbo’s tag.
Sources: Holset engineering milestones · HX40 for Cummins 6CT (parts distributor) · HX40 for 6CT-G2 gensets (parts distributor) · HX40 for Komatsu 6CTA (parts distributor)
About the Holset HX40
- In the catalog
- 58 complete turbochargers, 31 CHRA cartridges and 1 installation kit
- Engine makes (listings)
- Cummins 53·MAN 11·Iveco 5·Mack 5·Renault 5·Volvo 5
- Engine models listed
- 6CTA, 6CT, 6C, C215, D0836, 6CTAA, Cursor 9, D0826LF01, D9, NEF
- Complete turbo price
- $532 to $2,335
- Related models
- HX40W·HX40G·HX40M
- Shop by category
- Holset Turbos·Cummins Turbos·CHRA·Iveco Turbos
Where the Holset HX40 fits
Engines, years and machines as the Applications tables of the complete turbochargers on this page list them, with the part numbers that fit. Match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
| Engine | Years | Used in | Part numbers |
|---|---|---|---|
| Cummins 6CTA | — | — | 3598920H, 3597247H, 3596947H, 3596928H |
| Cummins 6CT | — | — | 4042043H, 3537559H, 3535664H |
| Cummins C215 | — | — | 4042043H, 3787139H, 3537559H |
| Cummins 6C | — | — | 4039265H, 4039262H |
| Cummins 6CTAA | — | — | 4042043H, 3537559H |
| Iveco NEF | — | Boat (Marine) | 4033902H, 4033270H |

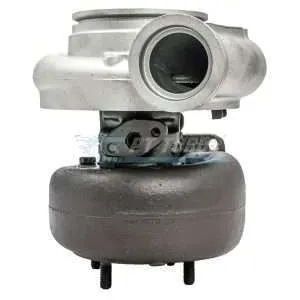

| MAN D0836 | — | — | 4033394H, 4033306H |

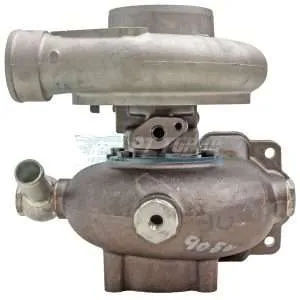

| Cummins 6B 355-380HP | — | Boat (Marine) | 4035782H |

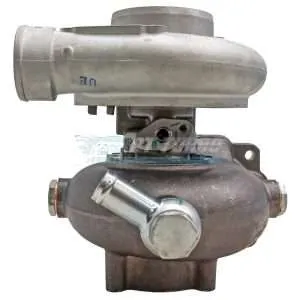

| Cummins 6BTAM 355HP | — | Boat (Marine) | 3536621H |
| Cummins 6C | — | Coach/Transit Bus | 3596945H |
| Cummins 6CT | — | Generator | 4037703H |
| Cummins 6CT-G2 | — | Generator | 4033209H |
| Cummins 6CTA | — | Bulldozer | 4038429H |
| Cummins 6CTA | — | Boat (Marine), Generator | 4038110H |
| Cummins 6TLAA 8.9L 220HP | — | — | 4033213H |
| Cummins ISB | — | Boat (Marine) | 4039701H |
| Cummins M11 | — | — | 3539557H |
| Cummins QSB 355-380HP | — | Boat (Marine) | 4035782H |
| Cummins QSC | — | — | 2837715H |
| Doosan DL08 | — | Excavator | 4033414H |
