Garrett GTX3071R (Gen I & Gen II) Turbochargers
PT Turbo lists 11 complete turbochargers, 1 turbocharger kit, 3 supercores, 2 CHRA cartridges and 3 other parts for the Garrett GTX3071R, with complete turbos from $2,024 to $2,695. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Garrett GTX3071R is
The GTX3071R is a Garrett GTX30-series ball-bearing turbo sold in two generations. Garrett rates the current Gen II at 340 to 675 horsepower on engines of 1.8 to 3.0 liters, with an 8 mm dual ceramic ball bearing cartridge, a 54 / 71 mm compressor wheel, a 60 / 55 mm turbine wheel and a maximum speed of 140,000 rpm (supercore 851154-5002S, reverse rotation 844621-5003S). Garrett rated the Gen I at 340 to 560 horsepower, with an 11 full-blade compressor wheel and an oil and water cooled dual ball bearing. Turbine kits come with T3, V-band or T3 internally wastegated inlets in 0.61 to 1.06 A/R.

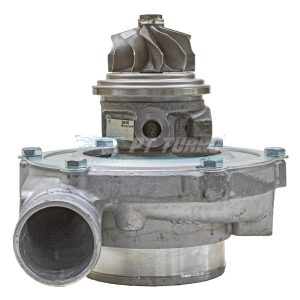

This page lists Gen II turbos (standard and reverse rotation), Focus ST bolt-on kits, supercores, a CHRA and compressor housings; the title of each listing says which generation it is. Garrett’s own guidance on turbine housings: a smaller A/R gives quicker boost response and more turbine power at low engine speed; a larger A/R lets the wheel flow more, with lower back pressure and more power at high engine speed.
Sources: Garrett GTX3071R Gen II · Garrett GTX3071R Gen I (archived) · Garrett catalog volume 5 (2015, archived) · Garrett: Turbine Housings 101
About the Garrett GTX3071R
- In the catalog
- 11 complete turbochargers, 1 turbocharger kit, 3 supercores, 2 CHRA cartridges and 3 other parts
- Complete turbo price
- $2,024 to $2,695
- Related models
- GTX3071R GEN II
- Shop by category
- Garrett Performance Turbos·Vehicle Specific Kits·Garrett GTX Gen2-RR·Nissan SR20DET
GTX3071R Gen2 specifications
Wheel sizes are inducer / exducer, taken from the specification published for each part number. The turbine housing sizes are the ones on the listings above; the same turbo is sold with several.
| Model | Compressor wheel | Turbine wheel | Compressor housing | Turbine housing A/R | Listings | From |
|---|---|---|---|---|---|---|
| GTX3071R Gen2 | 54 / 71 mm, 58 trim | 60 / 55 mm, 84 trim | 0.60 A/R | 0.63, 0.64, 0.82, 0.86 | 7 | $2,025 |
