GEN2-Garrett GTX3071R w/Compact Comp Hsg & .64 AR T25 IWG 5 Bolt Turbine Hsg 1 bar Actuator
GEN2-Garrett GTX3071R w/Compact Comp Hsg & .64 AR T25 IWG 5 Bolt Turbine Hsg 1 bar Actuator
GEN2-Garrett GTX3071R w/Compact Comp Hsg & .64 AR T25 IWG 5 Bolt Turbine Hsg 1 bar Actuator
GEN2-Garrett GTX3071R w/Compact Comp Hsg & .64 AR T25 IWG 5 Bolt Turbine Hsg 1 bar Actuator

GEN2-Garrett GTX3071R w/Compact Comp Hsg & .64 AR T25 IWG 5 Bolt Turbine Hsg 1 bar Actuator

Price range: $2,328.73 through $2,363.73

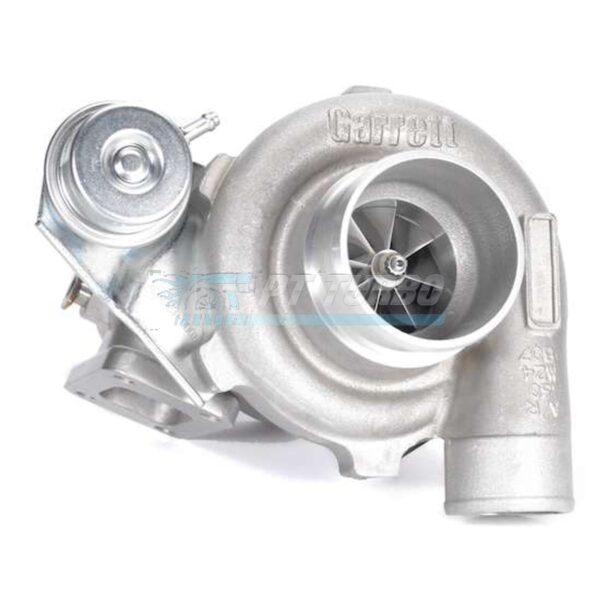

GEN2 GTX3071R dual ball bearing turbo capable of 650HP with 54/71mm billet compressor wheel (0.60 A/R), 60/55mm turbine wheel (.64 A/R), and 1 BAR actuator. Direct drop-in for GT2860RS/GT2871R platforms with T25 inlet, internally gated design, and 5-bolt turbine housing.

Specifications

  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Compressor Housing Inlet: 3″
  • Compressor Housing Outlet: 2″
  • Compressor Frame Size: Compact GT28 size (T04B frame)
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: .64
  • Turbine Housing Inlet: T25
  • Turbine Housing Outlet: 5 bolt
  • Wastegate Configuration: Internally gated
  • Bearing Type: Dual ball bearing
  • Actuator: 1 BAR (12-14PSI) wastegate actuator
  • HP Capacity: 650HP
Weight 20 lbs
