Garrett GT2554R (GT25R) Turbochargers
PT Turbo lists 6 complete turbochargers, 1 CHRA cartridge and 1 other part for the Garrett GT2554R, with complete turbos from $949 to $1,895. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Garrett GT2554R is

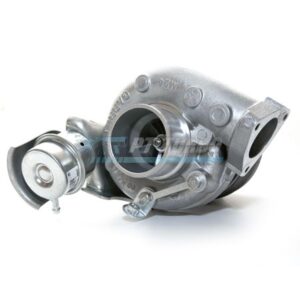

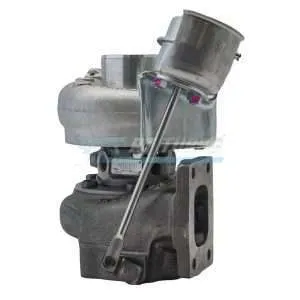

The GT2554R belongs to Garrett’s original GT Series, and Garrett calls it its smallest ball bearing configuration. It has a water-cooled center housing (CHRA), a 42 / 54 mm compressor wheel in a 0.80 A/R housing and a 53 / 42 mm, 62 trim turbine wheel in a 0.64 A/R internally wastegated housing, and Garrett sells it as a complete turbo with its actuator (836023-5001S). Garrett rates it at 170 to 270 horsepower on engines of 1.4 to 2.2 liters.

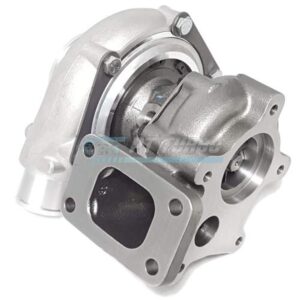

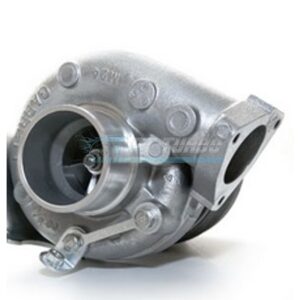

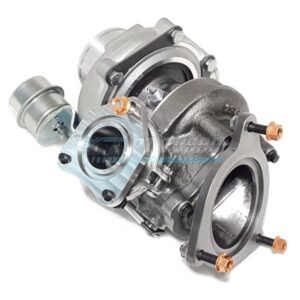

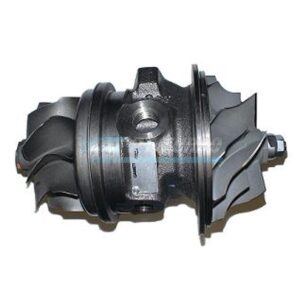

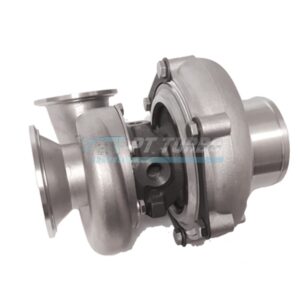

This page lists Garrett’s 836023-5001S, versions with an anti-surge compressor housing and T25 5-bolt, T3 5-bolt (0.48 A/R) or stainless V-band turbine housings, a bolt-on turbo for the Ford Fiesta ST 1.6L EcoBoost, the CHRA and a compressor housing. Garrett’s own guidance on turbine housings: a smaller A/R gives quicker boost response and more turbine power at low engine speed; a larger A/R lets the wheel flow more, with lower back pressure and more power at high engine speed.
Sources: Garrett GT2554R catalog page · Garrett: Turbine Housings 101
About the Garrett GT2554R
- In the catalog
- 6 complete turbochargers, 1 CHRA cartridge and 1 other part
- Complete turbo price
- $949 to $1,895
- Shop by category
- Garrett Performance Turbos·Garrett GT - Ball Bearing (Special)·GT / GTX Ball Bearing·CHRA
GT2554R specifications
Wheel sizes are inducer / exducer, as Garrett publishes them for this model. The turbine housing sizes are the ones on the listings above; the same turbo is sold with several.
| Model | Compressor wheel | Turbine wheel | Compressor housing | Turbine housing A/R | Listings |
|---|---|---|---|---|---|
| GT2554R | 42 / 54 mm | 53 / 42 mm, 62 trim | 0.80 A/R | 0.48, 0.64 | 8 |
