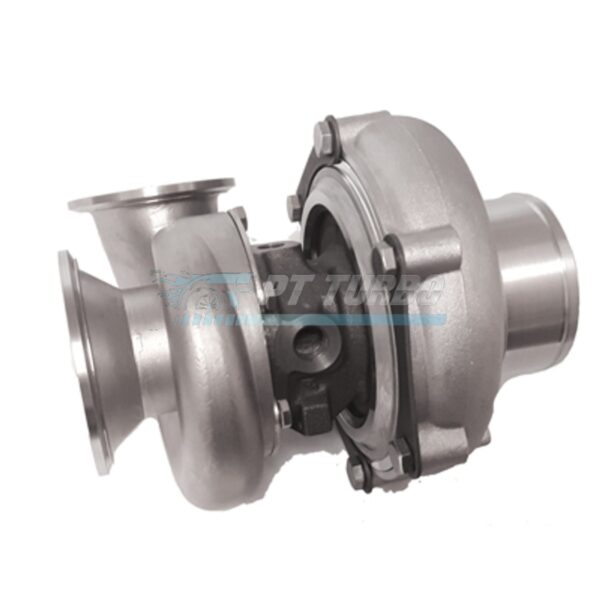

The Garrett GT2554R with 3″ in/2″ out anti-surge compressor housing and stainless .64 A/R V-band turbine housing is engineered for enthusiasts who demand fast-spooling response without sacrificing top-end flow. Built on Garrett’s proven ball bearing platform, this configuration is purpose-built for 4-cylinder performance applications where quick throttle response and reliable boost control are non-negotiable. It’s the ideal choice for builders seeking a compact, high-response turbo backed by Garrett engineering.

Specifications

• Compressor Inlet/Outlet: 3″ in / 2″ out, Anti-Surge
• Compressor Wheel Exducer: 54.3 mm
• Turbine Wheel Exducer: 53 mm
• Turbine Housing A/R: .64
• Turbine Housing Material: Stainless
• Turbine Housing Flange: V-Band Inlet/Outlet
• Turbine Housing Compatibility: ATP V-Band style, TiAl compatible
• Bearing Type: Ball Bearing
• HP Flow Capacity: 240 HP

Performance & Application

This GT2554R is designed for 4-cylinder applications where sharp response and efficient spool are priorities. The anti-surge compressor housing design helps maintain stable, reliable boost control across the operating range, while the ball bearing core delivers the quick-spooling characteristics enthusiasts expect from the GT2554R lineup. With 240 HP flow capacity, this configuration suits builders looking for a responsive turbo solution without stepping into larger frame territory. The stainless V-band turbine housing adds durability and simplifies installation for those running V-band exhaust systems.

Frequently Asked Questions

What HP can the GT2554R support?

This GT2554R configuration has a 240 HP flow capacity.

Is this a ball bearing or journal bearing turbo?

This GT2554R is built on Garrett’s ball bearing platform.

What is the A/R ratio of the turbine housing?

The turbine housing uses a stainless .64 A/R.

What turbine housing flange and material does this use?

It features a stainless V-Band inlet/outlet turbine housing, built to an ATP V-band style that is TiAl compatible.

For enthusiasts who need proven Garrett ball bearing response paired with a durable stainless V-band tur
