Mack Pinnacle Turbocharger Guide: MP8 Highway Tractor Applications by Year

This Mack Pinnacle Turbocharger Guide covers the MP8 highway tractor engine from its 2007 introduction through the current turbo-compound ratings, so you can match the right charger to your truck and stop guessing at cross-reference lists. The MP8 is the backbone engine in the Pinnacle lineup, and because it shares its core architecture with the Volvo D13, its turbocharger history runs parallel to Volvo’s. Getting the turbo right means reading the tag, not just the model year, and this guide walks through why.

PT Turbo has been rebuilding turbochargers since 1978, and over 45 years of working on heavy-duty Holset units has taught us one thing above all: a wrong part number costs more than no part number. We stock both new and remanufactured chargers for these engines.

The MP8 and Volvo D13 Connection

The Mack MP8 and the Volvo D13 are the same 12.8L engine in different trim. The MP8 powers the Mack Anthem, Pinnacle, and Granite; its smaller sibling the MP7 is the Volvo D11, and the larger MP10 is the Volvo D16. One thing worth stating up front: these engines are not shared with Freightliner, so a Detroit DD13 or DD15 turbo has nothing to do with your Pinnacle.

Because the MP8 is a Volvo-Mack engine, the factory turbos are Holset (Cummins Turbo Technologies), not BorgWarner and not Mitsubishi. Any listing that attaches a “Mitsubishi actuator” or a “pneumatic actuator” to a highway MP8 is wrong. The variable-geometry units on these engines use a sliding nozzle and an electronic actuator.

Mack Pinnacle Turbocharger Guide: MP8 Applications by Year

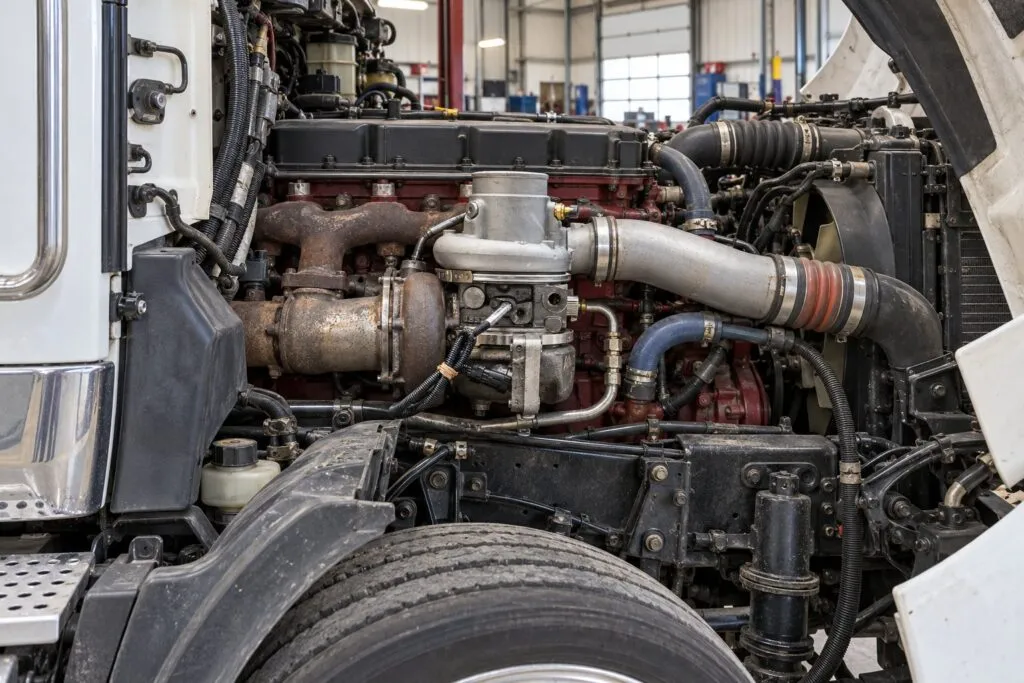

On the highway MP8 (2010 and newer), the factory turbo is a Holset variable-geometry unit with a sliding nozzle and an electronic actuator that must be calibrated to the specific turbo. Our supplier catalogs this charger as the Holset HE451VE, while other sellers list the identical Volvo and Mack part numbers as the HE400VG. Both names are correct for this engine, which is exactly why you cannot shop by name alone.

Earlier US07 versions of the engine (the MD13 era) are listed by some sellers with an HE431VE type unit, the same family used on the MP7 and the Cummins ISC and ISL. Off-highway, vocational, and marine D13 variants appear with wastegated or fixed-geometry Holsets instead: the HE500WG, the HX55W, or the fixed HE500FG. The point stands: go by the number on the data plate.

MP8 / D13 Variant	Turbo Type	Actuator / Control	Catalog Names You May See
Highway MP8 (2010 on)	Variable geometry, sliding nozzle	Electronic, calibrated to the turbo	HE451VE / HE400VG
Earlier US07 MD13	Variable geometry, sliding nozzle	Electronic	HE431VE type
MP8HE (turbo-compound, 2017 on)	Fixed geometry + power turbine	No VGT nozzle or actuator	D13TC turbo in Mack trim
Off-highway / marine D13	Wastegated or fixed geometry	Wastegate (where fitted)	HE500WG / HX55W / HE500FG

The MP8HE Turbo-Compound Exception

From 2017, Mack added the high-efficiency MP8HE, which is the Volvo D13TC in Mack trim. This engine does not use a variable-geometry turbo at all. It runs a fixed-geometry turbocharger followed by a turbo-compound power turbine geared back to the crankshaft to recover exhaust energy.

If you are chasing a boost problem on an MP8HE, do not go looking for stuck vanes or an actuator fault: there are none. Diagnose it as a fixed-geometry charger with a separate compound unit, and verify the configuration from the engine data plate before ordering anything.

How the MP8 Variable-Geometry Turbo Works

The Holset variable-geometry turbo on the MP8 does not use pivoting vanes on a unison ring. It uses a sliding nozzle ring that moves axially inside the turbine housing to change the effective flow area. At low speed the nozzle restricts flow to build drive pressure and spool the turbine; at higher speed it opens for airflow. You can read a general overview of the principle on variable-geometry turbochargers.

The nozzle is driven by an electronic actuator bolted to the center housing. Because the actuator uses self-locking gears, you never move its arm by hand to test it. If you need to verify nozzle travel, the actuator comes off and you move the nozzle lever directly.

The center housing is cast iron, and this turbo has coolant lines in addition to its oil feed and drain. Keep that in mind during removal: there is more to disconnect than on a dry, oil-cooled charger.

Common Failure Modes and What to Check

Most turbo failures on any engine trace back to the oil supply, and the MP8 is no exception. Before condemning a charger, check the oil feed line, the drain, the oil level, and the air filter. A restricted drain backs oil up past the seals; a plugged feed starves the bearings.

On the variable-geometry MP8 turbos, soot buildup on the sliding nozzle is a real-world problem. A nozzle stuck toward closed gives overboost and high drive pressure; stuck toward open gives low boost and sluggish spool. Either way the engine often logs an actuator or boost fault and may derate.

• Low boost, black smoke, slow spool: nozzle stuck open, exhaust leak upstream of the turbine, or an air-side leak after the compressor.
• Overboost or high drive pressure: nozzle stuck closed or sooted in a restricted position.
• Oil in the charge piping: check the breather, air filter, oil level, and drain before blaming the compressor seal. A light film is normal from crankcase ventilation; pooled oil is not.
• Actuator fault codes: the electronic actuator failed to reach a commanded position, often from a sticking nozzle rather than the actuator itself.

Heavy trucks like the Pinnacle report through SPN and FMI numbers and manufacturer codes, not the generic P-codes you see on a pickup. Use Mack’s diagnostic software to read the fault and its freeze-frame data rather than assuming a generic underboost code applies. A stuck nozzle and a dead actuator can throw similar symptoms, so confirm which one is actually at fault before you order a part.

Side note on shaft play: some side-to-side rock at the wheel is normal on a journal-bearing turbo. Condemn the unit only for in-and-out play you can feel, for wheel contact with the housing, or for play beyond the maker’s limit, never for any movement at all.

Replacement, Actuator Calibration, and the Tag Number

The single most important step when buying an MP8 turbo is matching the part number on the Holset data plate. The plate sits on the compressor housing and carries the Holset assembly number alongside the Volvo or Mack customer number. Casting numbers on the housings are not part numbers, since one casting serves many turbos, so use them only to narrow the search and confirm with wheel sizes and A/R.

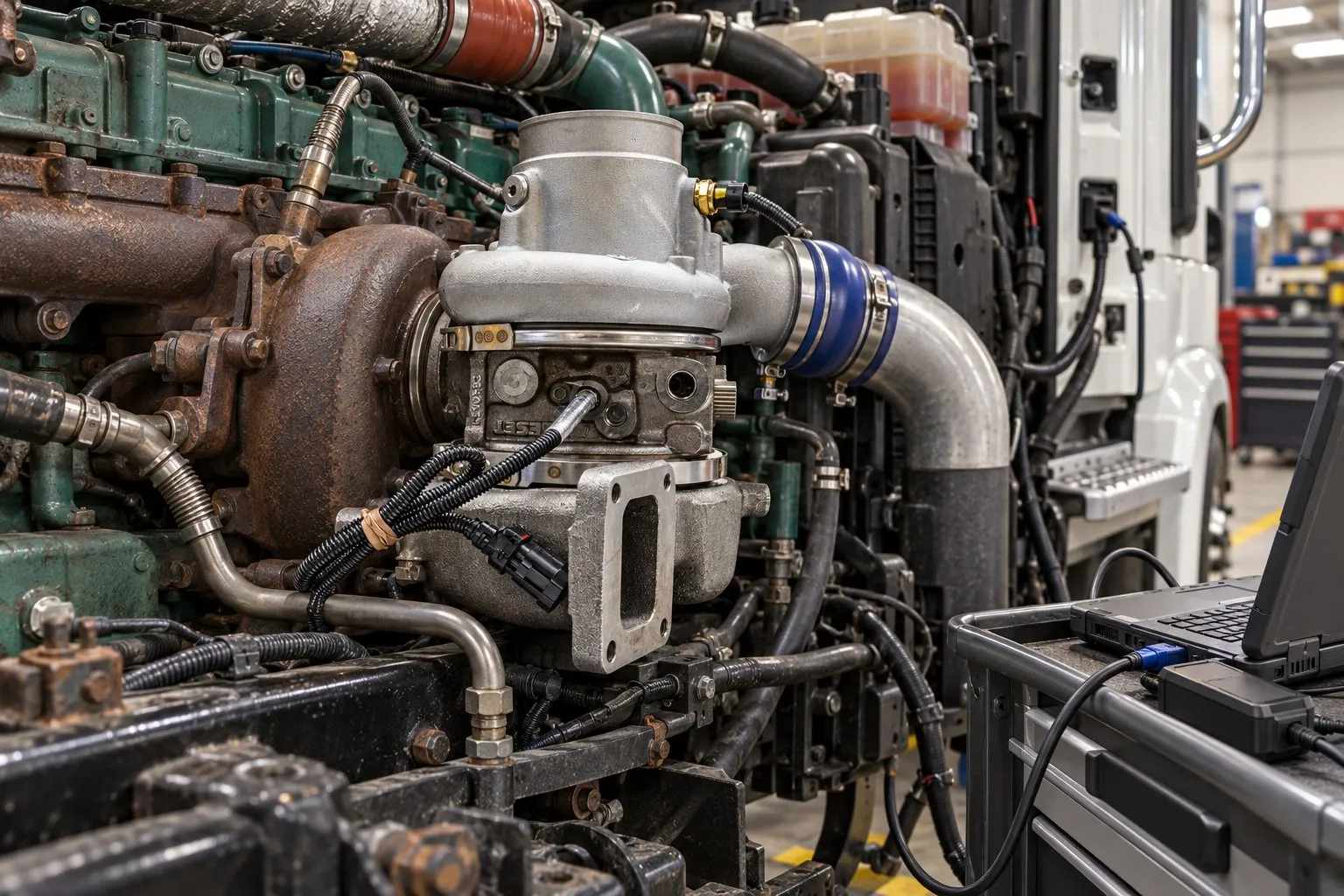

These are electronic actuators, which means they are calibrated with a service tool to the specific turbo, not set with a rod and a vacuum pump the way an old pneumatic unit would be. The actuator and nozzle are matched, so a replacement unit has to be calibrated after it is fitted, with the service tool on the truck.

Note that the HE451VE and HE400VG listings cover the same Volvo and Mack numbers for the highway MP8, but an actuator and wiring that suit one model year may differ from another. Do not assume one complete turbo drops into every MP8. Send us the number off the tag and we match it.

Consideration	New Turbo	Remanufactured Turbo
Core charge	None	Core return within 30 days
Availability	Stocked and supplier network	Stocked and rebuilt in-house
Actuator calibration	Service tool, after fitting	Service tool, after fitting
Warranty	12 months, unlimited mileage	12 months, unlimited mileage

If your core is good, a turbo rebuild service often makes the most sense on a Holset VGT. We replace the bearings, seal rings, and thrust parts, inspect the nozzle and actuator, and balance the cartridge. You can check what a rebuild runs for your exact model on our turbo rebuild price list, and most rebuilds ship in 3 days or less. Prefer to swap outright? Browse remanufactured turbochargers or send us the tag number through our contact page.

Fleet operators running a yard full of Pinnacles can call or send a list of their tag numbers. Because the MP8 shares so much with the Volvo D13, the same guidance applies to a mixed Mack and Volvo fleet.

Frequently Asked Questions

Is the Mack MP8 turbo the same as the Volvo D13 turbo?

Yes. The MP8 and D13 are the same 12.8L engine in different trim, and the highway versions use the same Holset variable-geometry turbo, catalogued as the HE451VE or HE400VG depending on the seller. Match the Holset number on the data plate, since actuator and wiring details can vary by year even within the same model name.

Does the MP8 turbo have a vacuum or pneumatic actuator?

No. The highway MP8 variable-geometry turbo uses an electronic actuator that is calibrated to the specific turbo with a service tool. There is no rod to set with a vacuum pump, and the actuator gears are self-locking, so the arm is never moved by hand to test it.

Why does my MP8HE not have a variable-geometry turbo?

The MP8HE is the turbo-compound engine, the Volvo D13TC in Mack trim. It runs a fixed-geometry turbocharger followed by a power turbine geared to the crankshaft, with no VGT nozzle or actuator. Diagnose boost issues on that engine as a fixed-geometry setup and confirm the configuration from the engine data plate first.
