How to Pack and Ship a Turbocharger for Rebuild: Step-by-Step Guide

Knowing how to pack and ship a turbocharger for rebuild is the difference between getting your unit back fast and in one piece, or dealing with cracked housings, bent compressor wheels, and weeks of delay. A turbocharger is a precision-balanced assembly spinning up to 150,000 RPM, and the cartridge inside tolerates almost no abuse during transit. Here at PT Turbo, we have been rebuilding turbos since 1978, and we have opened thousands of boxes that arrived damaged purely because of poor packing.

This guide walks you through the exact process we recommend to protect your core, speed up your turnaround, and avoid surprise charges. Follow it and your turbo arrives rebuild-ready.

Why Proper Packing Matters More Than You Think

A turbocharger looks tough. Cast iron turbine housing, aluminum compressor cover, a solid steel shaft. But the parts that actually matter are fragile. The compressor wheel blades are often aluminum thinner than a dime at the edges, and the turbine shaft is balanced to tolerances measured in fractions of a gram.

Drop a boxed turbo on a concrete dock and the shaft can bend, the wheel tips can nick, and the bearing journals can gall. Any of those turns a simple rebuild into a core charge or a scrapped unit.

There is also the actuator and electronics to think about. On variable-geometry turbochargers, the actuator and position sensor are exposed and easily snapped off. Package those with the same care you give the cartridge.

What You Need Before You Start Packing

Gather your materials first so you are not improvising halfway through. Cutting corners here is where most shipping damage starts.

• A double-wall corrugated cardboard box, or ideally a wood crate for large units
• Expanding spray foam or dense polyethylene foam blocks
• Bubble wrap, at least two full wraps worth
• Heavy-duty packing tape, 2-inch minimum width
• Clean rags or shop towels
• Threaded plugs, tape, or clean plastic caps for all ports
• A zip-top bag for small loose parts and paperwork

Do not use loose packing peanuts as your only cushioning. They shift and compress, leaving the turbo to rattle against the box walls. Peanuts are fine as a secondary filler, never as primary protection.

Step-by-Step: How to Pack and Ship a Turbocharger for Rebuild

Here is the process we use in-house when we return units and the one we wish every customer followed when sending cores in.

Step 1: Drain and Seal the Oil Ports

Tip the turbo so residual oil drains out of the center housing. A turbo full of hot drain oil will leak through any box and can trigger hazmat flags with carriers. Wipe the exterior clean.

Plug the oil inlet, oil drain, and any coolant ports. Threaded plugs are best, but clean tape over the openings works. This keeps debris out of the bearing system during transit, which matters because grit in the oil galleries means extra cleaning and sometimes bearing damage.

Step 2: Protect the Inlet and Outlet Openings

Tape clean cardboard discs or plastic caps over the compressor inlet and turbine outlet. These are the openings that expose the wheels. If anything shifts in the box, this barrier stops it from reaching the blades.

Never shove rags directly against the compressor wheel to immobilize it. Forcing the wheel to one side can preload the bearings or bend a blade. Let the cartridge float naturally.

Step 3: Secure the Actuator and Sensors

If your turbo has a pneumatic or electronic actuator, immobilize the rod and arm so they cannot flex during handling. Wrap the actuator body in bubble wrap and tape the linkage in its resting position. Do not force it against spring tension.

If the actuator is already damaged or seized, that is often the real reason a turbo underperforms. We stock replacement actuators across major platforms, including the Garrett Pneumatic Actuator 757979-5102 for $240.94 and the Garrett Pneumatic Actuator 445963-0040 for $465.52. For Mitsubishi units, the Mitsubishi TD03 Pneumatic Actuator 49S3118761 runs $104.33, and the Mitsubishi Pneumatic Actuator 4918918935 is $83.99.

Step 4: Wrap the Entire Unit

Wrap the whole turbo in at least two full layers of bubble wrap, paying extra attention to any protruding parts like the wastegate, actuator, and sensor connectors. Tape the bubble wrap so it stays snug. The goal is a cushioned ball with no hard edges exposed.

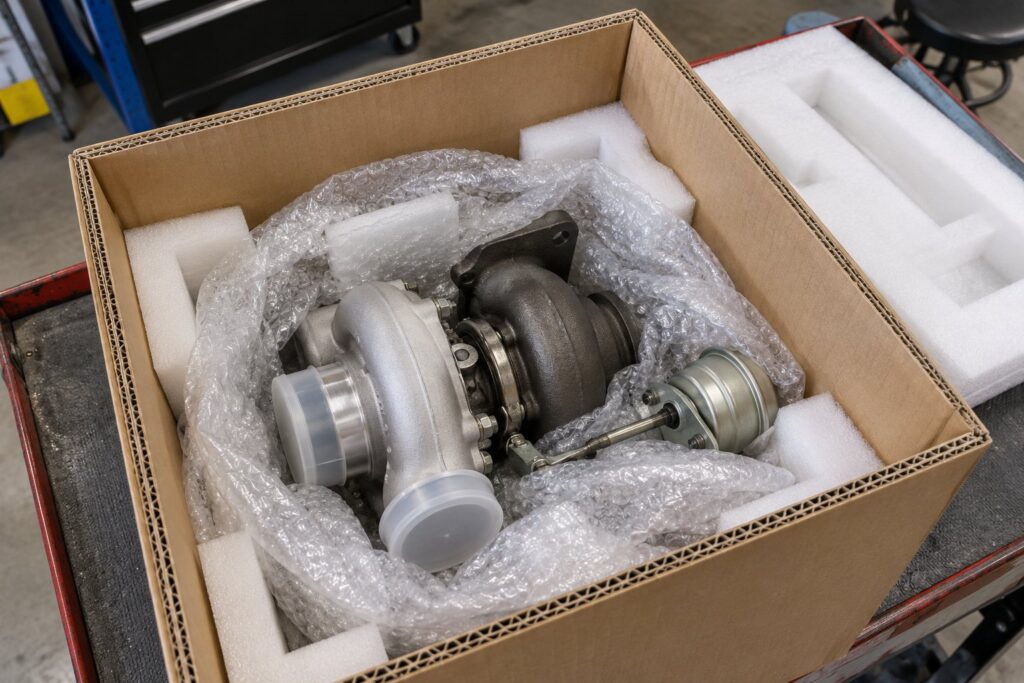

Step 5: Center It in the Box with Foam

Place the wrapped turbo in the center of a double-wall box with at least two inches of cushioning on every side, including top and bottom. Expanding foam or cut foam blocks lock the unit in place so it cannot shift. The turbo should not touch any wall of the box.

Give the sealed box a firm shake. If you hear or feel the turbo move, add more packing. Movement is the single biggest cause of in-transit damage.

Step 6: Include Paperwork and Label Clearly

Put a note inside with your name, phone number, the turbo part number, the vehicle or equipment it came from, and the symptoms you observed. This speeds diagnosis enormously. Keep a copy of any boost pressure test results or notes from a boost leak test you ran before removal.

Tape the box seams fully and label it as fragile. Keep your tracking number. If you need a shipping address or a core return authorization, reach out through our contact page first.

Packing Materials Compared: What Actually Protects a Turbo

Not all cushioning is equal. Here is how common materials stack up for turbo shipping.

Material	Protection Level	Best Use	Notes
Expanding spray foam	Excellent	Primary cushioning	Conforms to shape, locks unit still
Dense foam blocks	Excellent	Primary cushioning	Reusable, must be cut to fit
Bubble wrap	Good	Wrapping the unit	Needs 2+ layers, pairs with foam
Crumpled kraft paper	Fair	Secondary filler	Compresses over distance
Packing peanuts	Poor	Gap filler only	Shifts, lets turbo settle and rattle

Rebuild Your Core or Buy Remanufactured? Know Before You Ship

Before you ship a core, decide whether a rebuild of your specific unit makes sense or whether a reman exchange is faster. If your cast housings are cracked or the shaft is severely bent, rebuild costs climb and lead time grows. Many owner-operators simply cannot afford downtime.

Our turbocharger rebuild service restores your original unit to spec with new bearings, seals, and a balanced cartridge. If you need a truck back on the road today, a unit from our remanufactured turbochargers inventory often ships immediately with a core return. With 45 plus years in business, we stock both new and remanufactured parts for a huge range of diesel platforms.

Option	Turnaround	Keeps Your Core?	Best For
Rebuild your unit	Longer, depends on condition	Yes	Rare or matched-number units
Reman exchange	Fastest, ships now	No, core returned	Minimizing downtime
Buy new	Varies by stock	N/A	No usable core available

Not sure which way to go? Our team can look up your application and tell you what we have in stock. Browse the full catalog on our turbo shop page.

Common Packing Mistakes That Cost You Money

These are the errors we see most often, and each one can turn into a core charge or a failed rebuild.

• Shipping with oil still inside. Leaks, mess, and possible carrier rejection.
• Leaving ports open. Grit and debris contaminate the bearing system.
• Using a single-wall box. It collapses under stacked freight.
• Jamming rags against the wheel. Bent blades and preloaded bearings.
• No cushioning under the turbo. The heaviest impacts come from below during handling.

Every one of these comes down to the same thing: treating a precision assembly like scrap metal. A few extra minutes with foam and plugs costs you nothing compared to a scrapped core or a second shipping charge to send a replacement.

Pack it like the balanced instrument it is, confirm nothing moves inside the box, and your turbo arrives ready to work on the day it lands on our bench. That is the fastest path to a clean rebuild and a quick turnaround.

Frequently Asked Questions

How should I pack a turbocharger to prevent damage during shipping?

Secure the shaft to prevent spinning, wrap the unit in bubble wrap, and use a sturdy double-walled box with plenty of cushioning around all sides. Cover the inlet and outlet ports to keep debris out of the cartridge.

Why is it important to protect the compressor wheel when shipping a turbo?

The compressor wheel is precision-balanced and spins up to 150,000 RPM, so even a small bend or nick can cause imbalance and failure. Immobilizing the shaft and cushioning the housing prevents costly damage in transit.

Should I drain oil from the turbocharger before shipping it for rebuild?

Yes, drain residual oil to avoid leaks and messy spills during transit. Seal the oil ports and wrap the unit in a plastic bag to contain any remaining fluid.
