Holset HX55W Turbochargers
PT Turbo lists 54 complete turbochargers, 5 CHRA cartridges and 1 installation kit for the Holset HX55W, with complete turbos from $790 to $4,011. Most fit Cummins engines, with others for Volvo, Mack, Iveco and Cursor. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Holset HX55W is

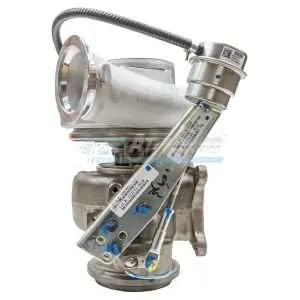

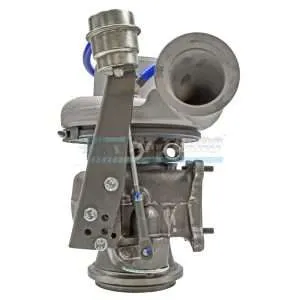

The HX55W is the wastegated version of Holset’s HX55, which Cummins names as the turbo on its M11 engine. Holset distributors list HX55W part numbers for the Cummins ISM and for the QSM11 10.8 liter industrial engine (for example in Hyundai R480LC-9 and R520LC-9 excavators and Hyster forklifts), with a pneumatic wastegate actuator. A variable geometry version of the same frame, the HX55V, was Holset’s first heavy-duty VGT in volume production, launched in 1998 on the Iveco Cursor 8.
This page lists complete and remanufactured HX55W turbos, CHRAs and an installation kit, each under its own part number; match the full number on your turbo’s tag.
Sources: Cummins M11 · HX55W for QSM11 (parts distributor) · Holset engineering milestones
About the Holset HX55W
- In the catalog
- 54 complete turbochargers, 5 CHRA cartridges and 1 installation kit
- Engine makes (listings)
- Cummins 50·Volvo 5·Mack 4·Iveco 3·Cursor 2·Renault 2
- Engine models listed
- QSM11, ISM, M11, MD13, ISX2, QSM4, CA6DM2-42E3, Cursor 9, D13, ISM11
- Complete turbo price
- $790 to $4,011
- Related models
- HX55WM
- Shop by category
- Holset Turbos·Cummins Turbos·CHRA·Volvo Turbos
Where the Holset HX55W fits
Engines, years and machines as the Applications tables of the complete turbochargers on this page list them, with the part numbers that fit. Match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
| Engine | Years | Used in | Part numbers |
|---|---|---|---|
| Cummins QSM11 | — | — | 4043722H, 4043720H, 4043718H, 4043703H +5 more |
| Cummins ISM | — | — | 57869902104, 4039198H, 4037628H, 4037626H +4 more |
| Cummins M11 | — | — | 4037628H, 4037626H, 4035893H, 3792809H +1 more |
| Cummins ISX2 | — | — | 4090042RX, 4046132HX, 4046132H |
| Cummins ISM11 | — | — | 4033888H, 3786512H |
| Cummins QSM4 | — | Loader | 4037636H, 4037634H |
| Cummins Signature 600 | — | — | 4090042RX, 4046132H |
| Volvo D13 | — | Volvo VCE Dump Truck (Off-Highway) | 4031100H, 4031099H |
| Volvo MD13 | — | Coach/Transit Bus | 4031183H, 4031173H |
| WuXi CA6DM2-42E3 | — | — | 4033940H, 3787012H |
| 8.7L | — | Case-New Holland (CNH) | 3787019H |
| Cummins ISM 500HP | — | — | 3592776H |
| Cummins ISME | — | — | 3787130H |
| Cummins QDM | — | — | 3787013H |
| Cummins QDM1 | — | — | 4039066H |
| Cummins QSM4 | — | — | 4039070H |
| Iveco Cursor 9 | — | — | 4033238H |
| Iveco Cursor 9 | — | Harvester | 3787016H |
| Renault MD13 | — | Renault Truck (Class 3-8) | 4031066H |
| Renault MD13.5 | — | Renault Truck (Class 3-8) | 4031079H |
