Garrett GT2052 Turbochargers
PT Turbo lists 14 complete turbochargers, 3 CHRA cartridges and 1 installation kit for the Garrett GT2052, with complete turbos from $727 to $1,131. Most fit Perkins engines, with others for Caterpillar (CAT). Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Garrett GT2052 is

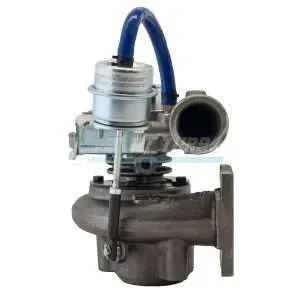

Garrett names the GT2052 as the smallest size in its GT Series. It is a journal-bearing turbo with an oil-cooled center housing (CHRA) and an internally wastegated turbine housing. Garrett’s performance version, 727264-5001W, has a 38 / 52 mm compressor wheel and a 47 / 40 mm, 72 trim turbine wheel, and Garrett rates it at 140 to 230 horsepower on engines of 1.4 to 2.0 liters.
Most GT2052 listings here are replacement turbos made for particular engines, each under its own part number (727262, 727263, 727264, 727265 and 727266 with their suffixes), so the number on your turbo’s data plate is what to match, not the model name. The page also has three GT2052 CHRAs and an installation kit.
Sources: Garrett GT2052 catalog page
About the Garrett GT2052
- In the catalog
- 14 complete turbochargers, 3 CHRA cartridges and 1 installation kit
- Engine makes (listings)
- Perkins 12·Caterpillar (CAT) 1
- Engine models listed
- 1004-40T 516515001-Up, 1104C-44T 367312505-Down
- Complete turbo price
- $727 to $1,131
- Related models
- GT2052S
- Shop by category
- Garrett Turbos·Perkins Turbos·CHRA·Garrett Performance Turbos
Where the Garrett GT2052 fits
Engines, years and machines as the Applications tables of the complete turbochargers on this page list them, with the part numbers that fit. Match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
| Engine | Years | Used in | Part numbers |
|---|---|---|---|
| Caterpillar (CAT) 3054 | — | — | 727264-5001W |
| Perkins 1004-40T 516515001-Up | — | Bobcat 963 Loader | 727264-5001W |
| Perkins 1104C-44T 367312505-Down | — | Bobcat V518 Forklift | 727264-5001W |
