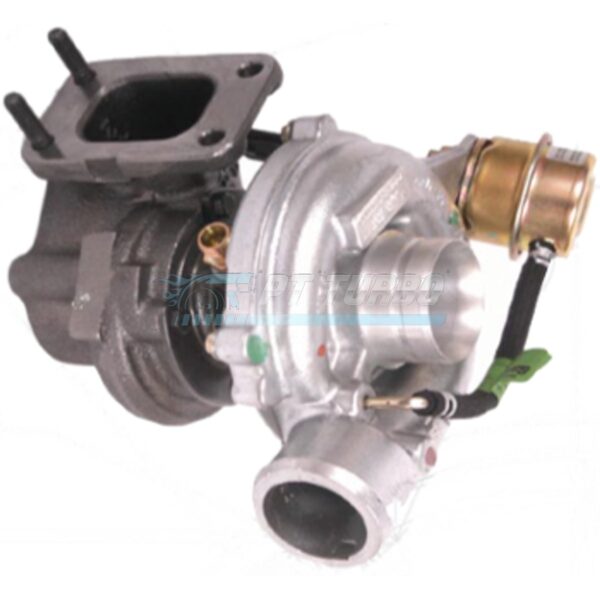

Garrett GT2052 Turbocharger

The Garrett GT2052 is a compact journal bearing turbocharger built for enthusiasts who need strong response in a small-frame package without sacrificing durability. Offered in two distinct compressor wheel trims, it gives builders flexibility to dial in the right balance of response and flow for their specific application. Its internally wastegated, oil-cooled design keeps installation straightforward while delivering the reliability Garrett is known for.

Specifications

• Compressor Wheel Inducer: 37.6mm (Part #727264-1)
• Compressor Wheel Inducer: 36.1mm (Part #727264-3)
• Compressor Wheel Exducer: 52.2mm
• Compressor Wheel Trim: 52 (Part #727264-1)
• Compressor Wheel Trim: 48 (Part #727264-3)
• Compressor Housing A/R: 0.51
• Turbine Wheel Inducer: 47.0mm
• Turbine Wheel Exducer: 39.9mm
• Turbine Wheel Trim: 72
• Turbine Housing A/R: 0.50
• Bearing Type: Journal bearing
• HP Capacity: Over 200HP potential flow
• Frame Size: Small frame
• Wastegate: Internally wastegated
• Cooling: Oil cooled CHRA rotating assembly (no water ports)
• Garrett P/N: 727264-1
• Alternate P/N: 727264-3

Performance & Application

The GT2052 is designed for builds targeting over 200 horsepower where a compact, internally wastegated turbocharger is preferred. Its journal bearing CHRA and oil-cooled design simplify installation on applications where water lines aren’t practical or desired. With two compressor wheel trim options available, this turbo can be matched to the specific flow and response characteristics a given build demands. The small frame construction makes it well suited to applications where packaging space is limited but a genuine performance upgrade is still required.

Frequently Asked Questions

What HP can the GT2052 support?

The GT2052 supports over 200HP potential flow.

Is the GT2052 a ball bearing or journal bearing turbocharger?

The GT2052 is a journal bearing turbocharger.

What is the compressor housing A/R ratio?

The compressor housing A/R ratio is 0.51.

What compressor wheel trim options are available?

The GT2052 is available in two compressor wheel trims: 52 trim (Part #727264-1) with a 37.6mm inducer, and 48 trim (Part #727264-3) with a 36.1mm inducer.

For builders who need a compact, internally wastegated journal bearing turbo capable of supporting over 200 horsepower, the Garrett GT2052 delivers a proven, oil-cooled solution backed by genuine Garrett engineering.
